5-3 Matrix 50 Series Switchers • Matrix Software
4. To make the control program easier to use, you can assign a device icon to
each input and output. Click on a box that represents an input or output, and
drag the desired icon onto the box from the icon palette that appears.
5. To create a tie, drag an input box to one or more output boxes. To remove a
tie, drag the output box to its tied input box.

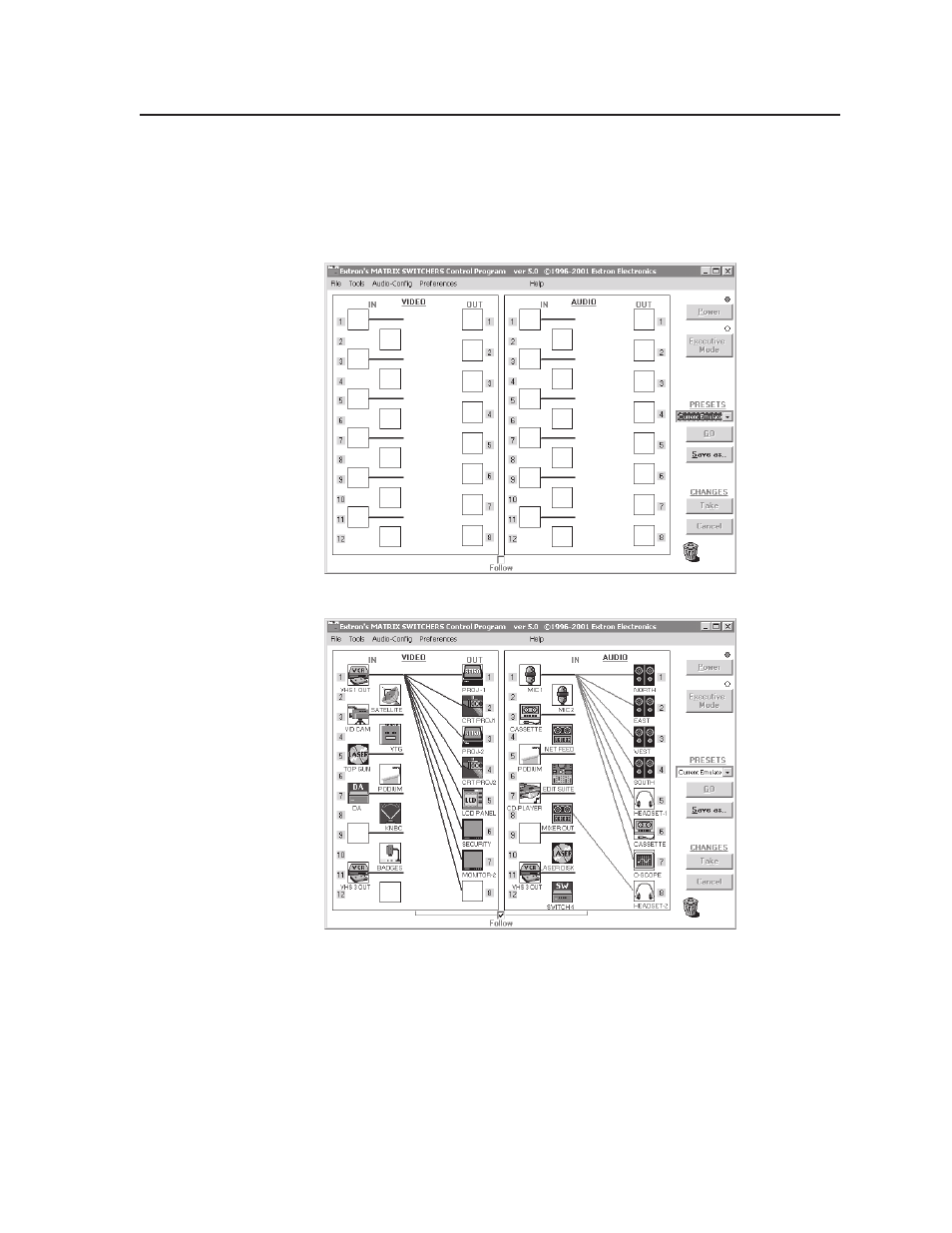

Figure 5-1 — Extron Matrix Switcher+ Control Program window (blank)
Figure 5-2 — Sample program window (complete)
Windows buttons
The buttons on the right side of the window perform the following functions:
Power — Unavailable for Matrix 50 switchers, because the switcher power cannot
be controlled via software.
Executive mode — Allows you to lock out front panel operations, except for the
view-only mode functions.
Presets menu — Displays a list of up to 12 presets. You can select a preset from the
list to display it in the window.
