RJ-45 to RJ-11 Conversion Kit • HSA 400, 402 Installation
HSA 400, 402, Installation, cont’d
RJ-45 to RJ-11 Conversion Kit
2
Chapter Two
HSA 800, 802, 822 Installation
Introduction
Removing the HSA from the Table
Replacing the Connectors
Reassembling the HSA
Routing the AAP Cables
1-10
Routing the AAP Cables
1 . Open the top panel to extend the AAP cables to their
maximum pull.
2 . Experiment with AAP cable positioning to ensure that the
cables do not rub against the edges of the AAP cable hole
and to ensure that the cable pull does not restrict the
movement of the top panel. Figure 1-9 shows the cables
routed to the side, which proved effective in tests at
Extron.
3. Use tie wraps to secure the AAP cables to the tie-down
holes in the clamshell and enclosure.

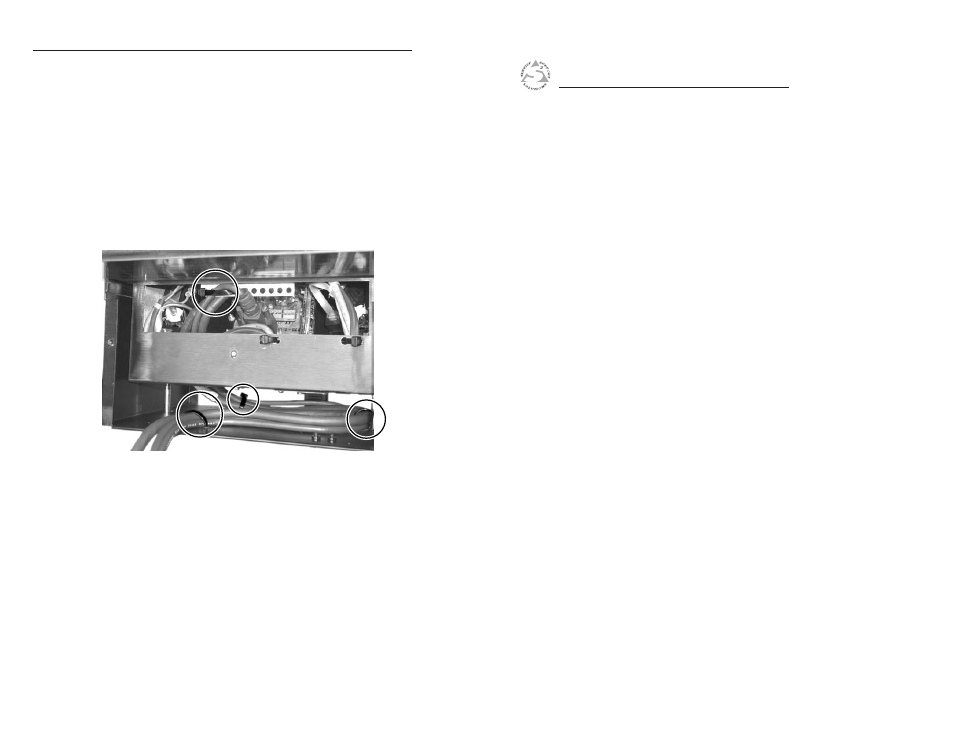

Secure the AAP cables at the circled locations.
Rear View into HSA and Clamshell
Figure 1-9 — HSA 402 AAP cable routing
