RJ-45 to RJ-11 Conversion Kit • HSA 800, 802, 822 Installation RJ-45 to RJ-11 Conversion Kit • HSA 800, 802, 822 Installation
HSA 800, 802, 822 Installation
2-3
Removing the HSA from the Table
Ensure that AC power is disconnected before
servicing the HSA unit.
1 . On the underside of the clamshell and in the enclosure, cut
the tie wraps that route the AAP cables out of the way.
2 . Disconnect the IEC power cord and RJ-45 connectors from
the underside of the surface mount enclosure.
3 . Disconnect any cables connected to the existing AAPs at
the ends of the cables away from the HSAs.
The edges of the top panel are sharp. Exercise care
when the HSA is removed from the table to prevent
personal injury.
CAUTION The flanged edges of the top of the surface enclosure
are bevelled to an ultra-fine thickness of less than
0.04 (4/100)” (approximately 1 mm). These edges
are soft and can be easily nicked or bent. Exercise
caution when handling and mounting the
enclosure. Mishandling can damage the appearance
of the enclosure.
The surfaces of the HSA enclosure have screws and other
protruding hardware that could damage fine furniture.
Do not rest the enclosure on unprotected furniture.
Introduction
The Extron HSA 800, HSA 802, and HSA 822 ship with
Category (CAT) 6 cables terminated with RJ-45 connectors
between the front panel(s) and lower enclosure bezel plug-ins.
Some users prefer a telephone (RJ-11) connector. This
conversion kit consists of a length of telephone cable terminated
with RJ-11 connectors to replace one of the CAT 6/RJ-45 cables.

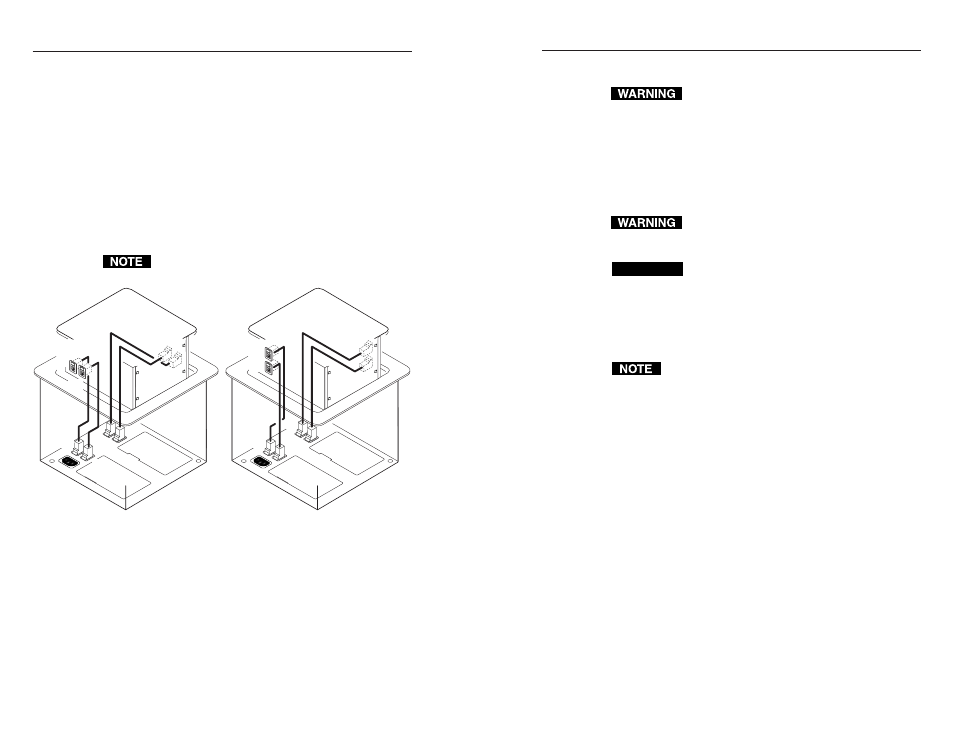

Figure 2-1 shows the location of the bezel plug-ins on the
underside and AAP panels of all versions of the HSA 802. The
HSA 800 is identical, but with only one AAP panel and
connectors A1 and A2 only. When replacing the CAT 6 cable,
match front panel connector A1 with underside connector A1,
match A2 with A2, and so forth.
Connectors B1 and B2 are present on the HSA 802 and
HSA 822 only.
A1
A2
A1
A2
B1
B2
HSA 802
USA and IEC versions
HSA 802
EU, UK, and Australian versions
HSA 822 all versions
B1
B2
A1
A2
A1
A2
B1
B2
B1
B2
Figure 2-1 — Underside and front panel bezel plug-ins
2-2
