RJ-45 to RJ-11 Conversion Kit • HSA 800, 802, 822 Installation
HSA 800, 802, 822 Installation, cont’d
Routing the AAP Cables
1 . Open the top panel to extend the AAP cables to their
maximum pull.
2 . Experiment with AAP cable positioning to ensure that the
cables do not rub against the edges of the AAP cable hole
and to ensure that the cable pull does not restrict the
movement of the top panel. Figure 2-6 shows the cables
routed to the side, which proved effective in tests at
Extron.
Figure 2-6 shows an HSA 822. For the purposes of this
procedure, the HSA 800 and HSA 802 are physically
similar.

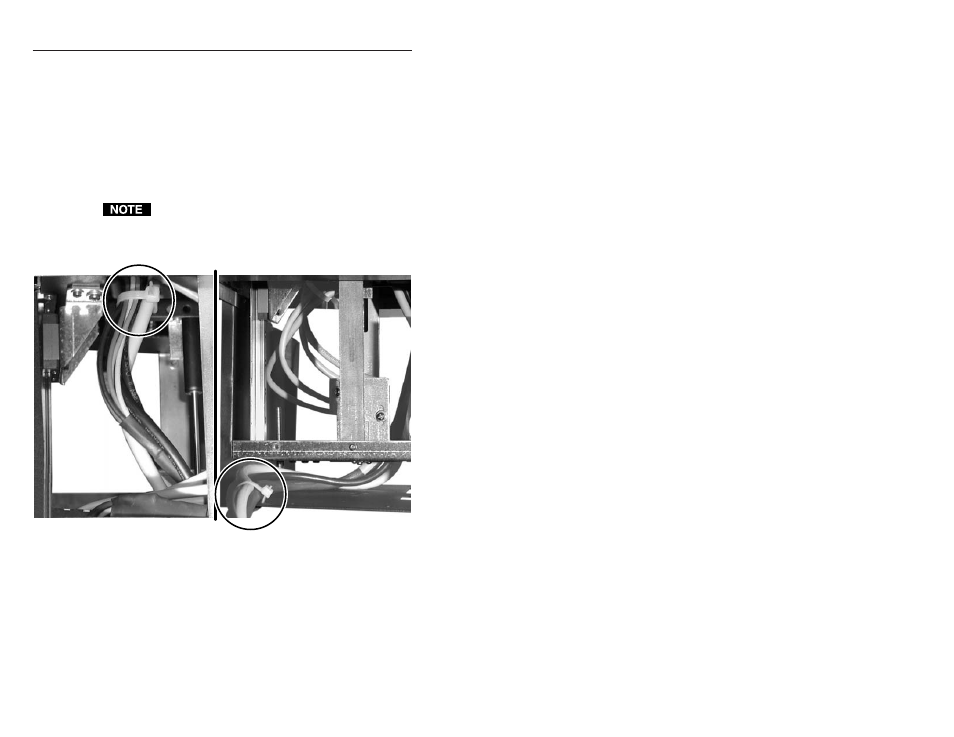

Secure the AAP cables at the circled locations.
View from one side View from the opposite side
Figure 2-6 — HSA 822 AAP cable routing
3. Use tie wraps to secure the AAP cables to the tie-down
holes in the clamshell and enclosure.
2-8
