3-11 FPC 5000 Front Panel Controller • Matrix 12800 Operation
When you touch the green
View Outputs/View Inputs
selection button on the screen, the FPC toggles between the two View Ties screens. The green selection button changes when touched; it is labeled
View Inputs
on the outputs-by-
input-selection screen and
View Outputs
on the input-by-
output-selection screen.
When you touch the green Change View
button, the
output area of the screen toggles between the all-ties view and the one-tie-at-a-time view. The
Change View
button does not change.
ViewTies: input-by-output selection screen ViewTies: outputs-by-input selection screen
ViewTies: input-by-output alternate screen
ViewTies: outputs-by-input alternate screen
1 2
3 4

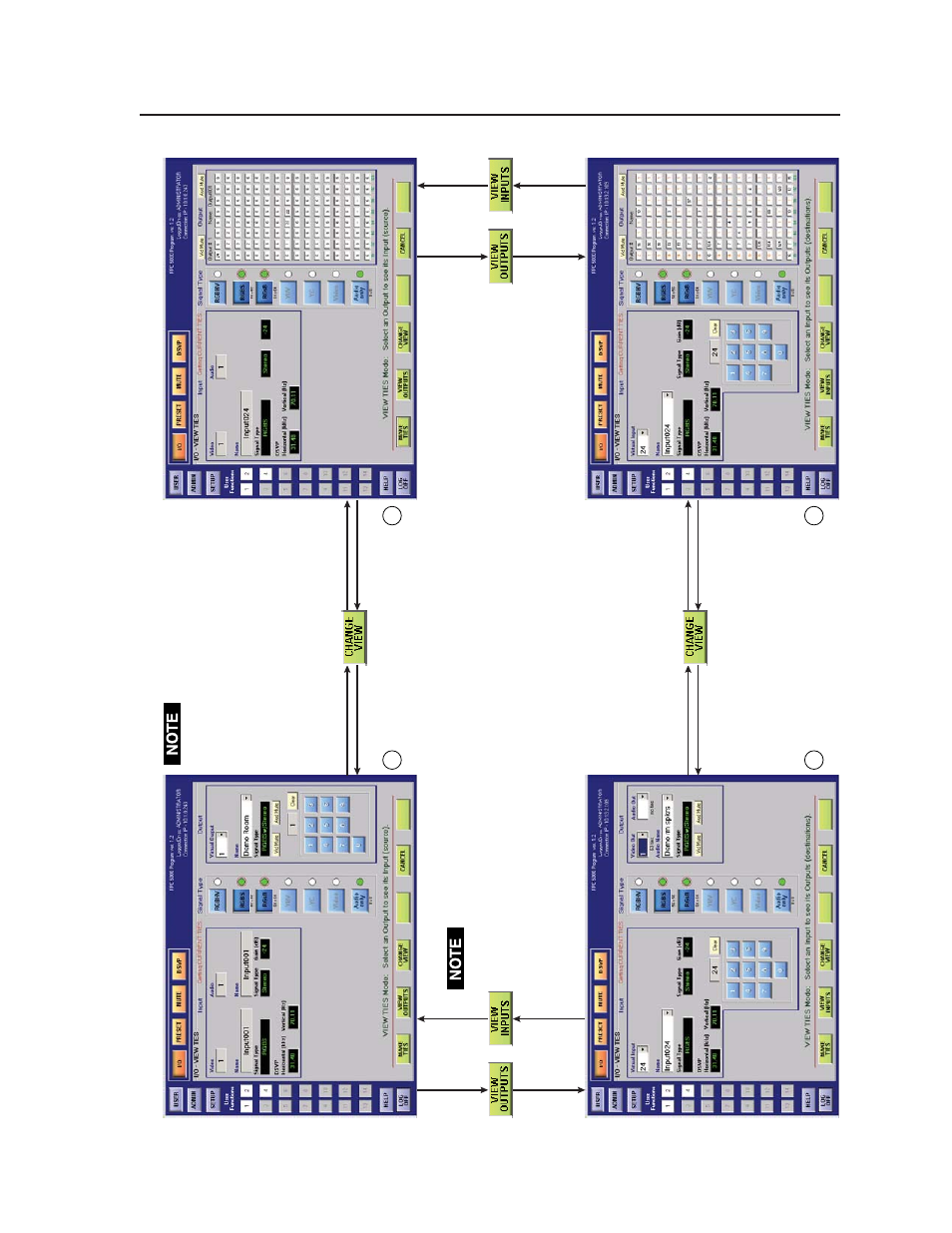

Figure 3-8 — View ties screens flowchart
