Audio Adjustment panel
The Audio Adjustment panel of the Control tab allows adjusts the gain and attenuation of
analog input audio.
Audio Gain and Attenuation — Adjusts the analog input audio gain or attenuation value.
This ranges from -18.0 dB to +10.0 dB in 1.0 dB increments.
In the Audio Gain/Atten. panel, click and drag the slider to the desired level. The current
value is displayed in a field below the slider control.
Audio Output Level — Is not available for the FOX T USW 103.
I/O Configuration Tab
The I/O Configuration tab contains options for input and output settings. To access these
options, click the
I/O Configuration tab.

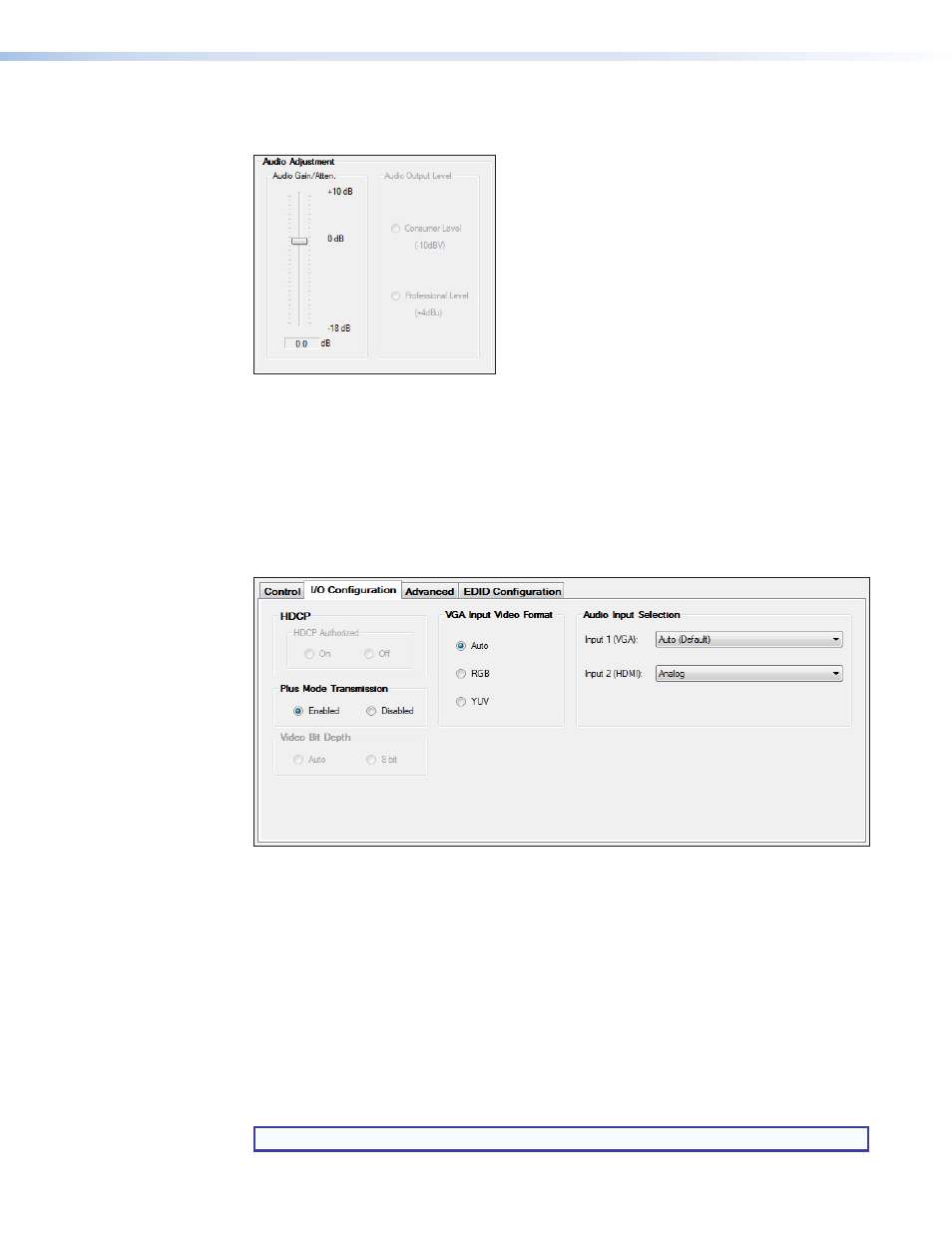

Figure 26. I/O Configuration Tab
HDCP panel
The HDCP Authorized setting allows a user to turn off HDCP communication on discrete
inputs. This setting is useful for devices such as Mac computers, iPhones, iPads, and some
Windows 7 sources that will always encrypt their output if the downstream sink is capable
of HDCP. By not allowing HDCP signals on an input, most content from these sources can
be passed as a non-encrypted signal to analog and digital video outputs. In a video system
that has requirements to not transmit HDCP encrypted data (such as non-HDMI FOX
Extenders), HDCP Authorized should be turned off at the input to keep the non-HDMI FOX
Extender’s output unencrypted.
In the HDCP panel, select the
On radio button to enable the HDCP Authorized setting or
select Off to disable the HDCP Authorized setting.
NOTE: Default setting: HDCP Authorized is On .
