Wiring for Fiber Communication

WARNING: Risk of serious physical injury. This device outputs

continuous invisible light, which may be harmful to the eyes; use with
caution.

Do not look into the rear panel fiber optic cable connectors or into
the fiber optic cables themselves.

Plug the attached dust caps into the optical transceivers when the
fiber cable is unplugged.

NOTES:

Ensure the proper fiber optic cable is used for the
FOX T USW 103 and receiver. Typically, singlemode fiber optic
cable has a yellow jacket and multimode fiber optic cable has an
orange or aqua jacket.

Only one fiber optic cable, transmitter-Tx-to-reciever-Rx, is
required for video, audio, and serial command transmission.
However, for only one fiber optic cable:

The HDMI signal output by the receiver is not HDCP compliant.

RS-232 reports from a controlled device are not available.

To receive responses from the controlled device and for
HDCP-compliance, install both fiber optic cables.

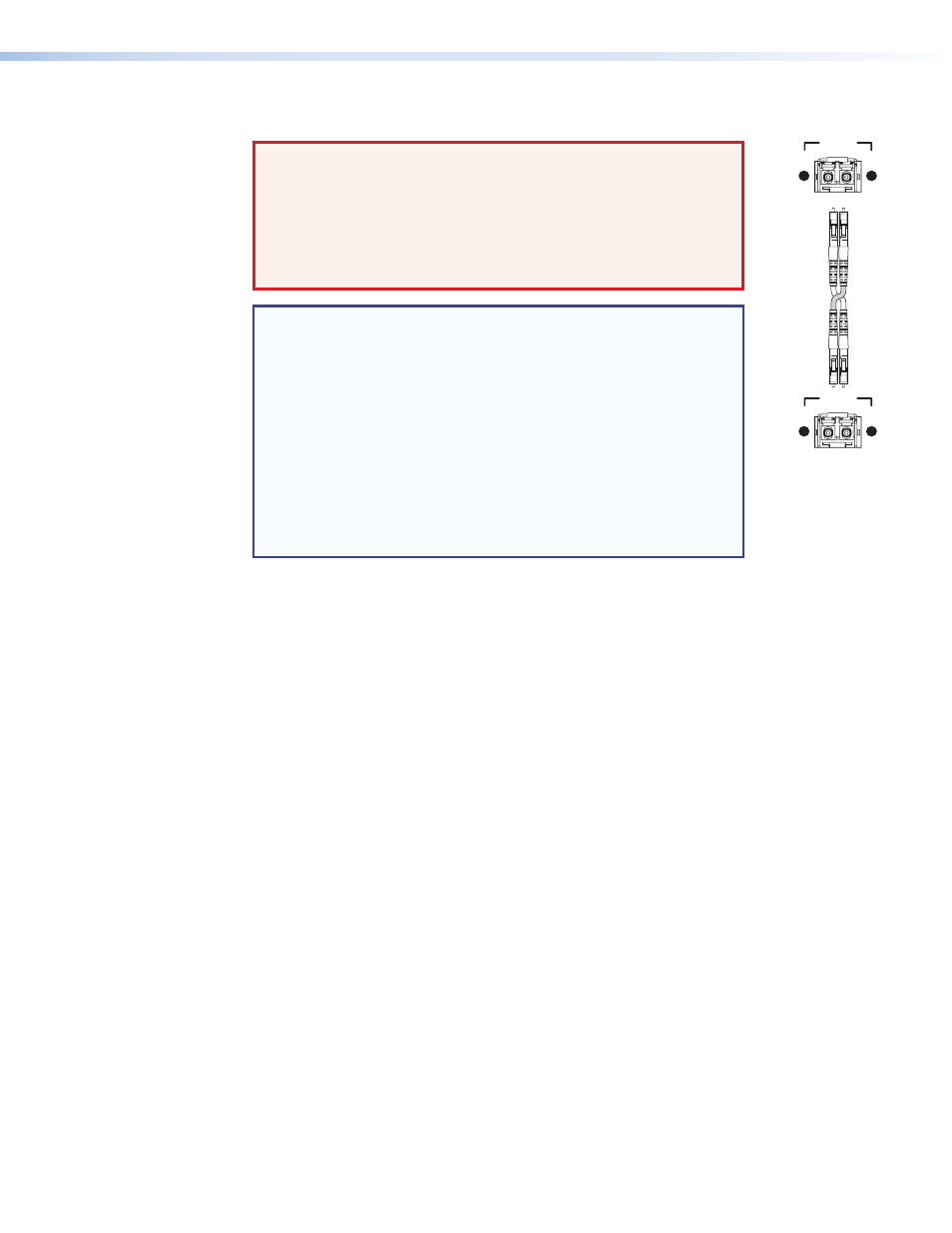

Transmitter

to

Receiver

OPTICAL

Rx

Tx

LINK

LINK

OPTICAL

Rx

Tx

LINK

LINK

FOX T USW 103 Universal Switcher • Installation

7
