Configuration
The DA configuration switch selects any of the three configurations as identified in figure 5,
below.
NOTE: When you change the position of the DA configuration switch, the reclocking
feature returns to the default setting of 4.25 Gbps on all inputs. See the
Reclocking information in the
section to set the reclocking feature to the desired values.
FOX DA8 Plus
100-240V 0.3A
OPTICAL OUTPUTS
A
B
C
D
OUT IN
1
OUT
IN
3
OUT
IN
5
OUT
IN
7
(1)1x
8
(2)1x
4
(4)1x
2
50/60 Hz
RS-232
Tx Rx
OUT
N/A
4
OUT
N/A
6
OUT
N/A
8
OUT
N/A
2
FOX DA8 Plus
100-240V 0.3A
OPTICAL OUTPUTS
A
B
C
D
OUT IN
1
OUT IN
3
OUT IN
5
OUT
IN
7
(1)1x8
(2)1x4
(4)1x2
50/60 Hz
RS-232
Tx Rx
OUT
N/A
4
OUT
N/A
6
OUT
N/A
8
OUT
N/A
2
FOX DA8 Plus
100-240V 0.3A
OPTICAL OUTPUTS
A
B
C
D
OUT IN
1
OUT IN
3
OUT IN
5
OUT IN
7
(1)1x8
(2)1x4
(4)1x2
50/60 Hz
RS-232
Tx Rx
OUT N/A
4
OUT N/A
6
OUT N/A
8
OUT N/A
2
Rx
Tx
Tx
Tx
Tx
Tx
Tx
Tx
Rx Rx Rx Rx Rx Rx Rx
Rx Rx Rx Rx Rx Rx Rx Rx
Rx Rx Rx Rx Rx Rx Rx Rx
C
Group: A
Group: A
C
D
B
(1)1x8
(2)1x4
(4)1x2
(1)1x8
(2)1x4
(4)1x2
(1)1x8
(2)1x4
(4)1x2
One 8-output DA
•
Not grouped.
•
Single input on input 1
•
Outputs 1 through 8
Two 4-output DAs
•
Group A:
•
Input 1
•
Outputs 1 through 4
•
Group C:
•
Input 5
•
Outputs 5 through 8
Four 2-output DAs
•
Group A:
•
Input 1
•
Outputs 1 and 2
•
Group B:
•
Input 3
•
Outputs 3 and 4
•
Group C:
•
Input 5
•
Outputs 5 and 6
•
Group D:
•
Input 7
•
Outputs 7 and 8
•
Group C:
•
Input 5
•
Outputs 5 and 6
•
Group D:
•
Input 7
•
Outputs 7 and 8

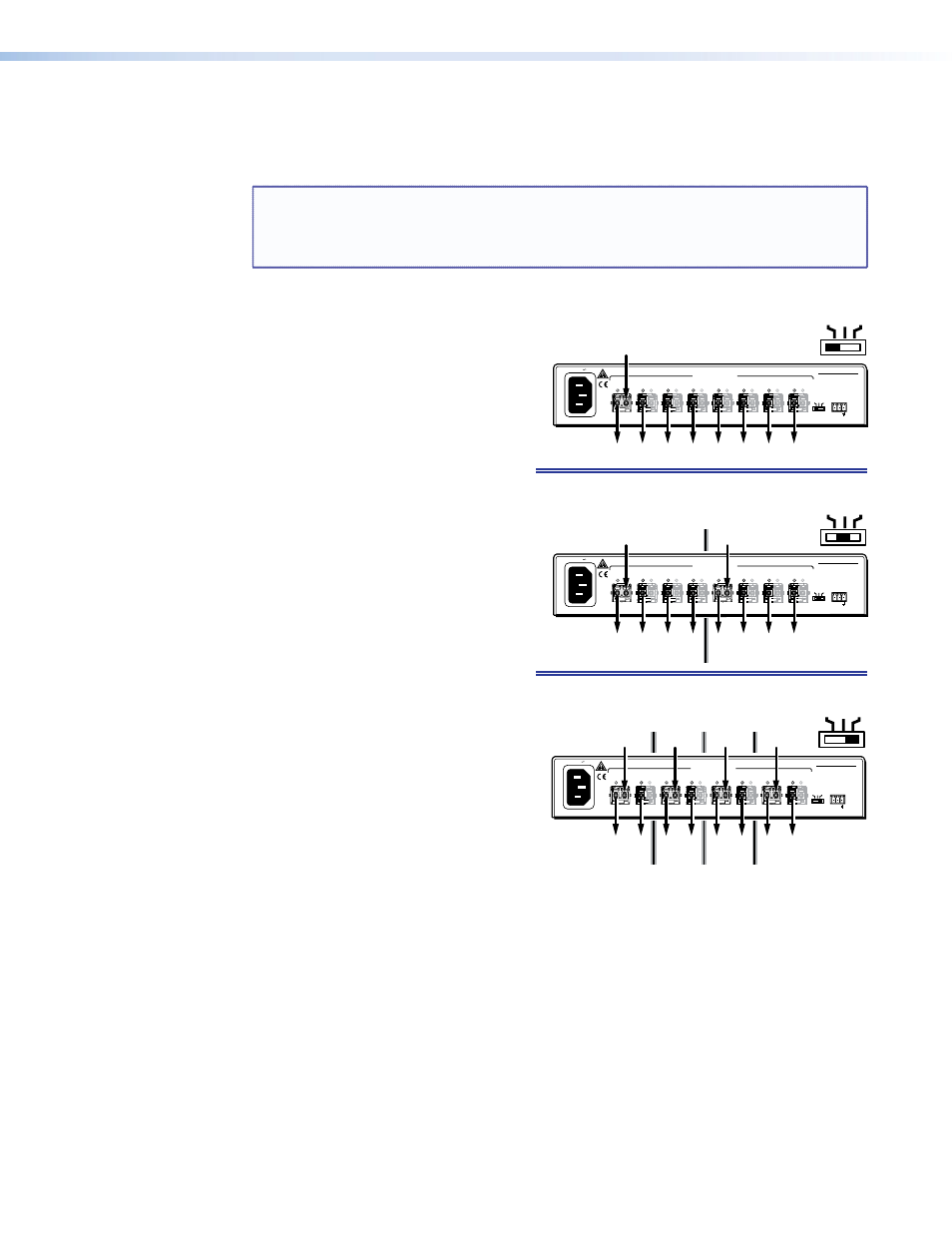

Figure 5.
DA Configurations Based on Switch Position
