Quick Start — DVS 204
Installation
Step 1
Refer to the application examples at the end of this
page. Turn off power to the scaler and input and
output devices, and remove power cords from
them.
Step 2
Install the four rubber feet on the bottom of the
DVS 204 scaler, or mount the scaler in a rack.
Step 3
Attach input devices to the scaler.
Rear panel video inputs
Input 1: Composite video
Input 2: Composite/S-video/Component
Input 3: S-video
Input 4: RGB pass-through/RGBS/
RGBcS
SDI input
Attach an SDI source to this BNC (204 D
model only).
Step 4
Attach output devices to the scaler.
Rear panel video outputs
Output BNC connectors
Output 15-pin HD connector
You can connect both outputs simultaneously
to two different displays. The sync format is
the same for both outputs.
Laptop Computer
DVD Player
INPUTS
R-Y
50/60 Hz
1
2 3 4
Y
/VID
B-Y
/C
H
R
/R-Y
V
G
/Y
S
B
/B-Y VIDEO REMOTE
RGB/R-Y,Y,B-Y
RGB
PASS - THRU RGBcvS S-VIDEO
SDI OUTPUTS 100-240V 0.3A
DVS 204 D
VCR
Document Camera
RS-232 Control
LCD Projector
Plasma Display

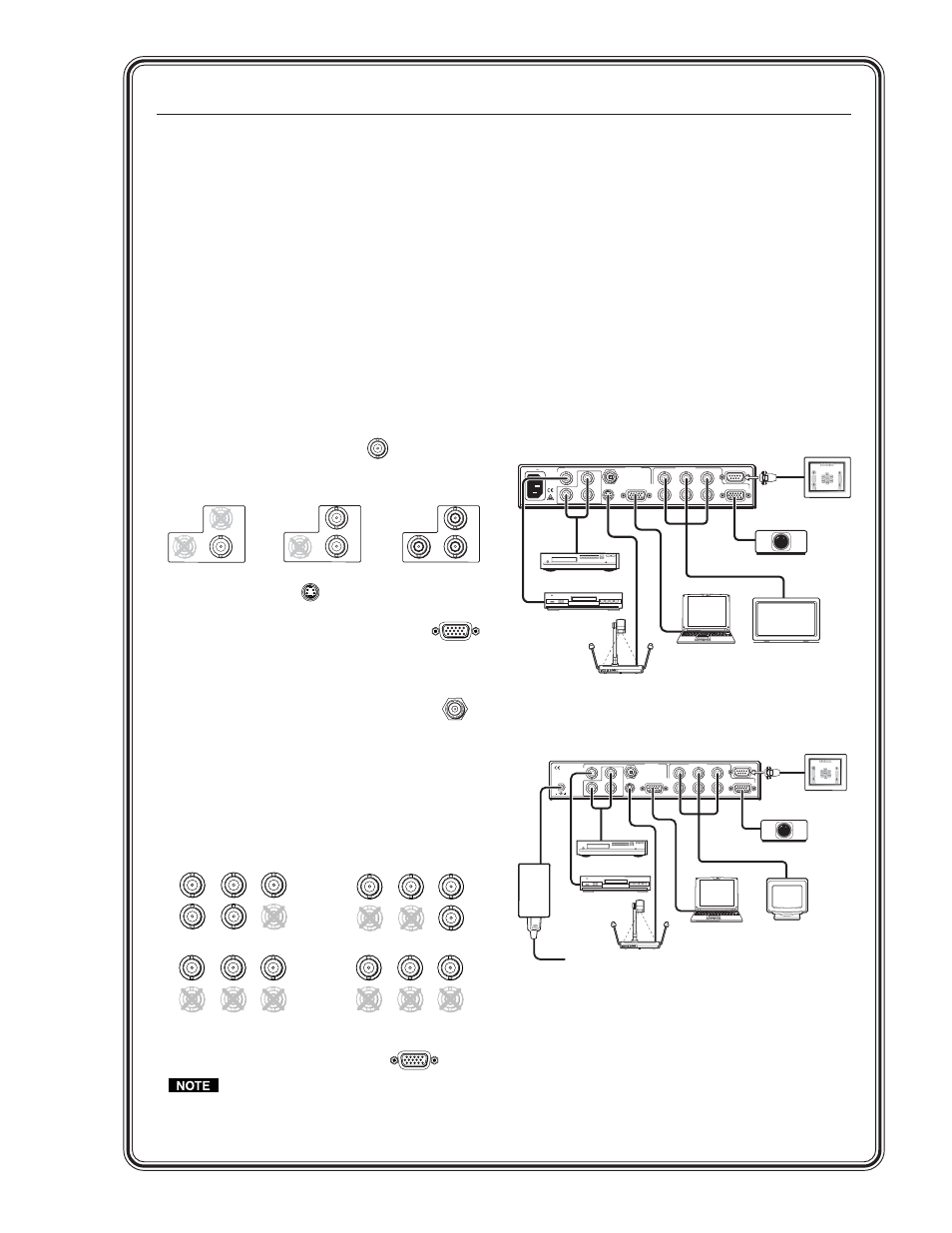

Application examples
1
VIDEO
R-Y
2
Y
/VID
B-Y
/C
R-Y
2
Y
/VID
B-Y
/C
Composite Video Component Video (R-Y, Y, B-Y) S-video (Y/C)
R-Y
2
Y
/VID
B-Y
/C
3
S-VIDEO
4
RGB
PASS - THRU/
RGBS/RGBcvS
SDI
H
R
/R-Y
V
G
/Y
S
B
/B-Y
OUTPUTS
H
R
/R-Y
V
G
/Y
S
B
/B-Y
OUTPUTS
H
R
/R-Y
V
G
/Y
S
B
/B-Y
OUTPUTS
H
R
/R-Y
V
G
/Y
S
B
/B-Y
OUTPUTS
Component Video (R-Y, Y, B-Y)
RGBHV RGBS
RGsB
Step 5
Plug the DVS 204, and input and output devices
into a grounded AC source, and turn on the input
and output devices.
Step 6
Use the LCD menu screens or RS-232
programming to configure the scaler. See chapter
two for installation and operation procedures, and
see chapter three for programming information.
RGB/R-Y,Y,B-Y
INPUTS
R-Y
POWER 12V 1.5A DC 1
2 3 4
Y
/VID
B-Y
/C
H
R
/R-Y
V
G
/Y
S
B
/B-Y VIDEO REMOTE
RGB/R-Y,Y,B-Y
RGB PASS - THRU RGBS/RGBcvS S-VIDEO
SDI OUTPUTS
Laptop Computer
DVD Player
Power Supply
DVS 204 D 12V
VCR
Document Camera
RS-232 Control
Monitor
LCD Projector
