Rear Panel Connections and Controls
100-240V 0.4A
50/60 Hz
OUTPUT
DVI-DINPUT
BUFFERED
LOOP-THROUGH
R
H
G
V
B
S
SOG ON/OFF
REFRESH
EDID
SOURCE
MONITOR
HIGH
LOW
SELECTOR
EDID
SELECT
DVI-RGB 200
2
1
5
7
3
6
4

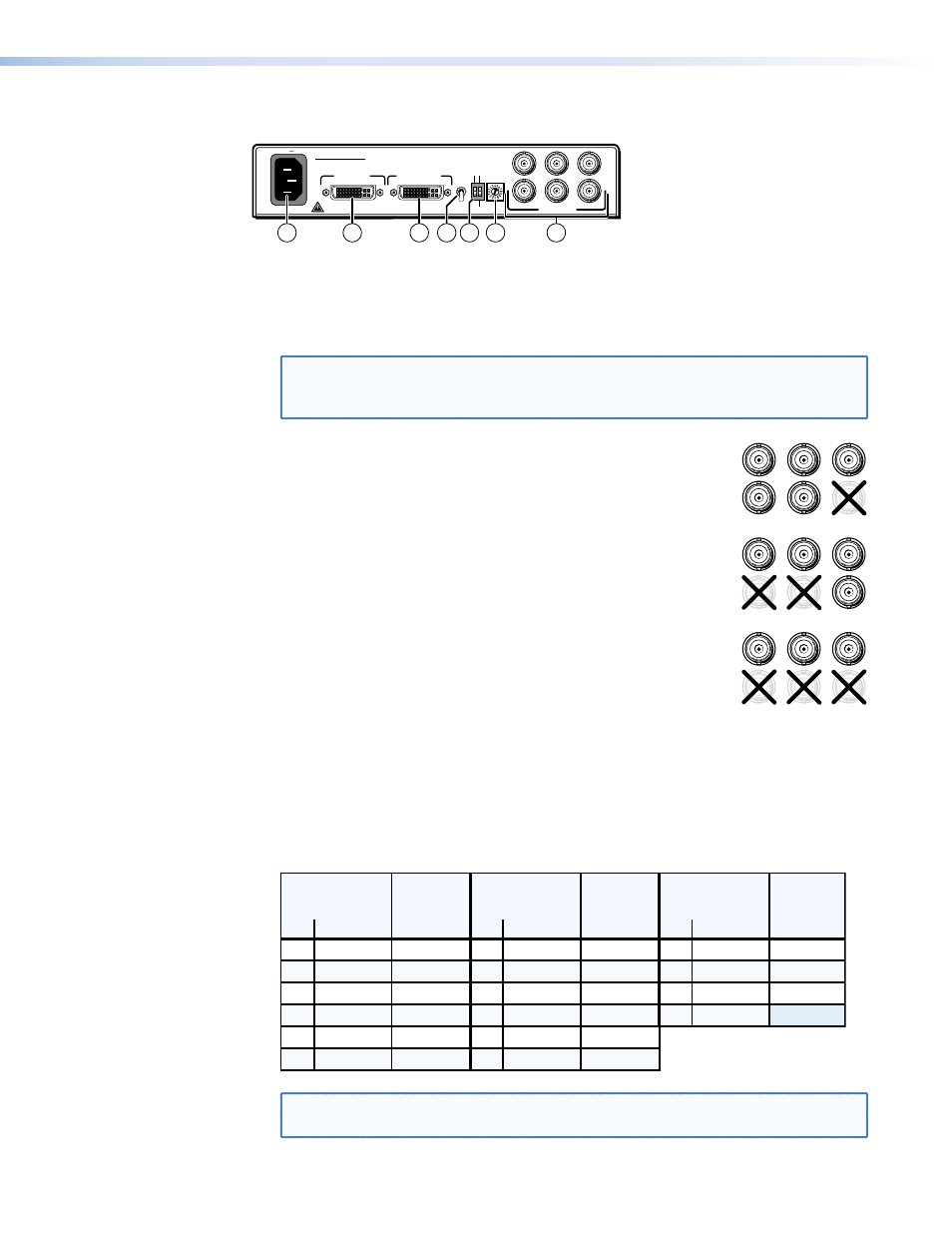

Figure 2.
DVI-RGB 200 Rear Panel
a
Input connector — Connect a single link of direct digital video to this 29-pin DVI-I
connector (figure 2) using the included cable.
b
Buffered Loop-through connector — If desired, connect a direct digital local monitor
to this 29-pin DVI-I connector.
NOTE: The user can also record EDID from a display on the Buffered Loop-Through
connector, store it onto the units internal memory and supply to the source
(DVI-D input). See
Capturing a User-recorded EDID
c
Output connectors — Connect an RGB display to these female
BNC connectors.
For RGBHV video — Connect to five BNC connectors as shown at
right. Ensure that the SOG On/Off switch (
f
) is turned off.
For RGBS video — Connect to four BNC connectors as shown at
right. Ensure that the SOG On/Off switch (
f
) is turned off.
For RGsB video — Connect to three BNC connectors as shown at
right. Ensure that the SOG On/Off switch (
f
) is turned on.
d
EDID Source switch — Set this switch to the Monitor (up) position
to connect the DDC channel between the direct digital video source
and the local monitor.
Set this switch to the Selector (down) position to connect the DDC
channel between the direct digital video source and the built-in
DVI-RGB 200 EDID logic.
e
EDID Select — If the EDID Source switch (
d
) is in the Selector position, set this switch
to the appropriate position to select the desired video resolution. Use the Refresh DIP
switch (
f
) to select the refresh rate. Table 1 identifies the switch positions and the
associated resolutions and vertical refresh rates.
Table 1.
Video resolution
Pos. Resolution
EDID Select
Switch
Refresh
DIP Switch
0
User EDID
1
2
1024x768
3
1280x720
C
D
E
F
50 Hz 60
50 Hz 60
50 Hz 60
4
5
1280x768
1280x800
50 Hz 60
50 Hz 60
800x600
1680x1050
1920x1080
1920x1200
N/A
Pos. Resolution
50 Hz 60
50 Hz 60
50 Hz 60
<
>
Dwn
Up
Refresh
DIP Switch
<
>
Dwn
Up
EDID Select
Switch
6
7
8
9
1280x1024
1360x768
1366x768
1400x1050
Pos. Resolution
50 Hz 60
50 Hz 60
50 Hz 60
50 Hz 60
A
B
1440x900
1600x1200
50 Hz 50
50 Hz 60
Refresh
DIP Switch
<
>
Dwn
Up
EDID Select
Switch
NOTE: Many monitors will not support all of the resolutions and refresh rates
shown. If you get no display, try a different rate.
R
H
G
V
B
S
R
H
G
V
B
S
R
H
G
V
B
S
