Panel Features

This section describes the panel features and connections of the DP DA2.

Rear Panel

12V

0.6A MAX

POWER

EDID

STORE

EXTEND

NORMAL

DEFAULT

STORED

1

RS-232 MUTE

Rx

Tx

1

G

2

2

INPUT

REMOTE

EDID

OUTPUTS

DP DA2

a

b

c

d e f

g h

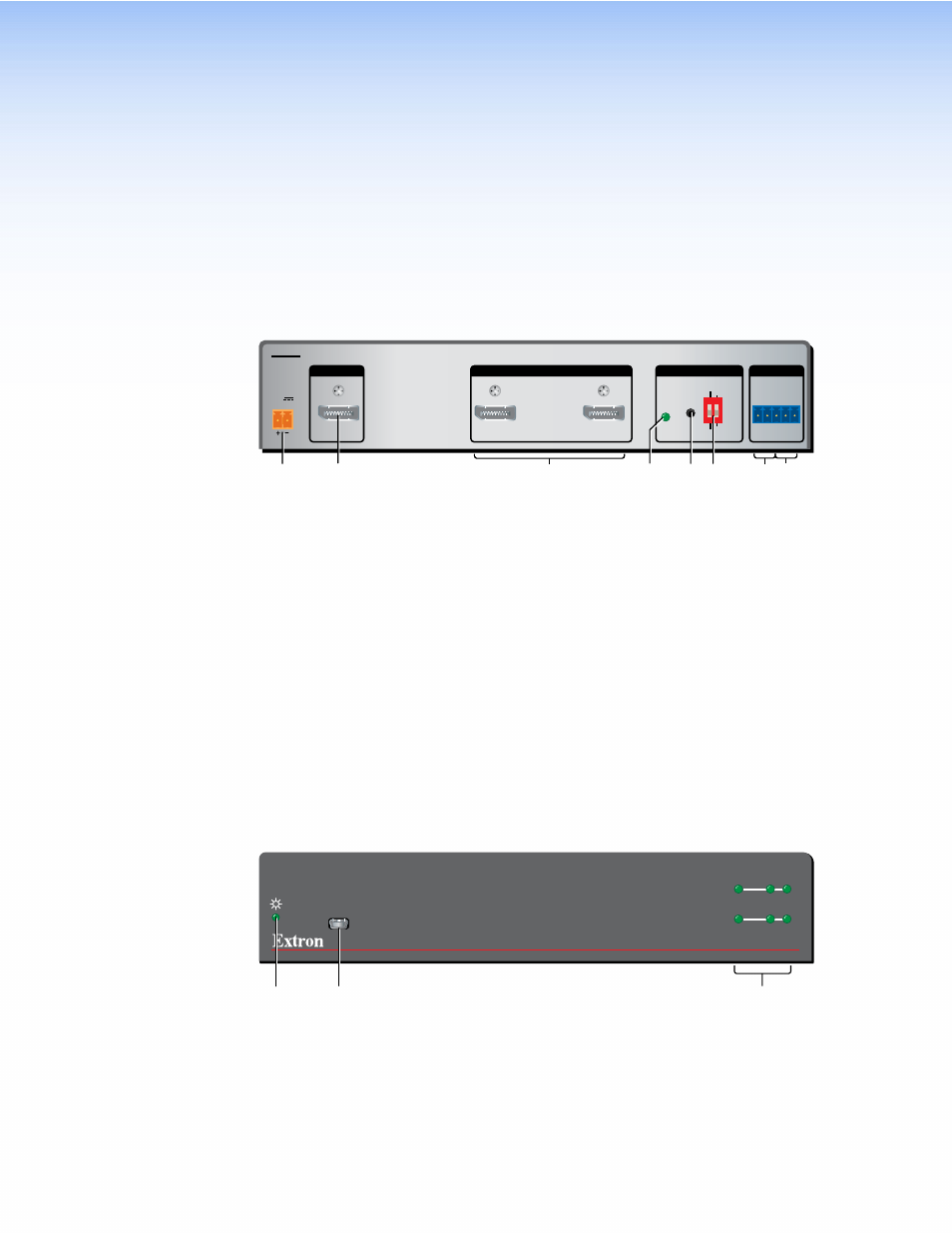

Figure 2.

DP DA2 Rear Panel

a

Power — Connect the provided power supply to this 2-pole, 3.5 mm captive screw
connector.

b

Input — Connect the source device to this female DisplayPort connector.

c

Outputs — Connect up to two display devices to these female DisplayPort
connectors.

d

EDID Minder LED — Lights red, amber, or green, showing current EDID Minder
state.

e

EDID Minder Store push button — This recessed button activates EDID store.

f

EDID Minder DIP switches — Used to configure the EDID Minder features.

g

RS-232 control — Connect the transmit (Tx), receive (Rx), and ground (G)
connectors of this 5-pole, 3.5 mm captive screw connector to a control PC.

h

Mute control — Connect the ground (G) and either pin 1 (to mute output 1) or pin 2
(to mute channel 2).

Front Panel

DP DA2

DISPLAYPORT DISTRIBUTION AMPLIFIER

INPUT

OUTPUTS

1

2

SIGNAL

HDCP

CONFIG

i

j

k

Figure 3.

DP DA2 Front Panel

i

Power LED — Lights green when the unit is receiving power.

j

Config USB port — Connect this USB port to a control PC.

k

Signal and HDCP LEDs — Provide information about the signal and HDCP
encryption status of the input and outputs.

DP DA2 • Panel Features
