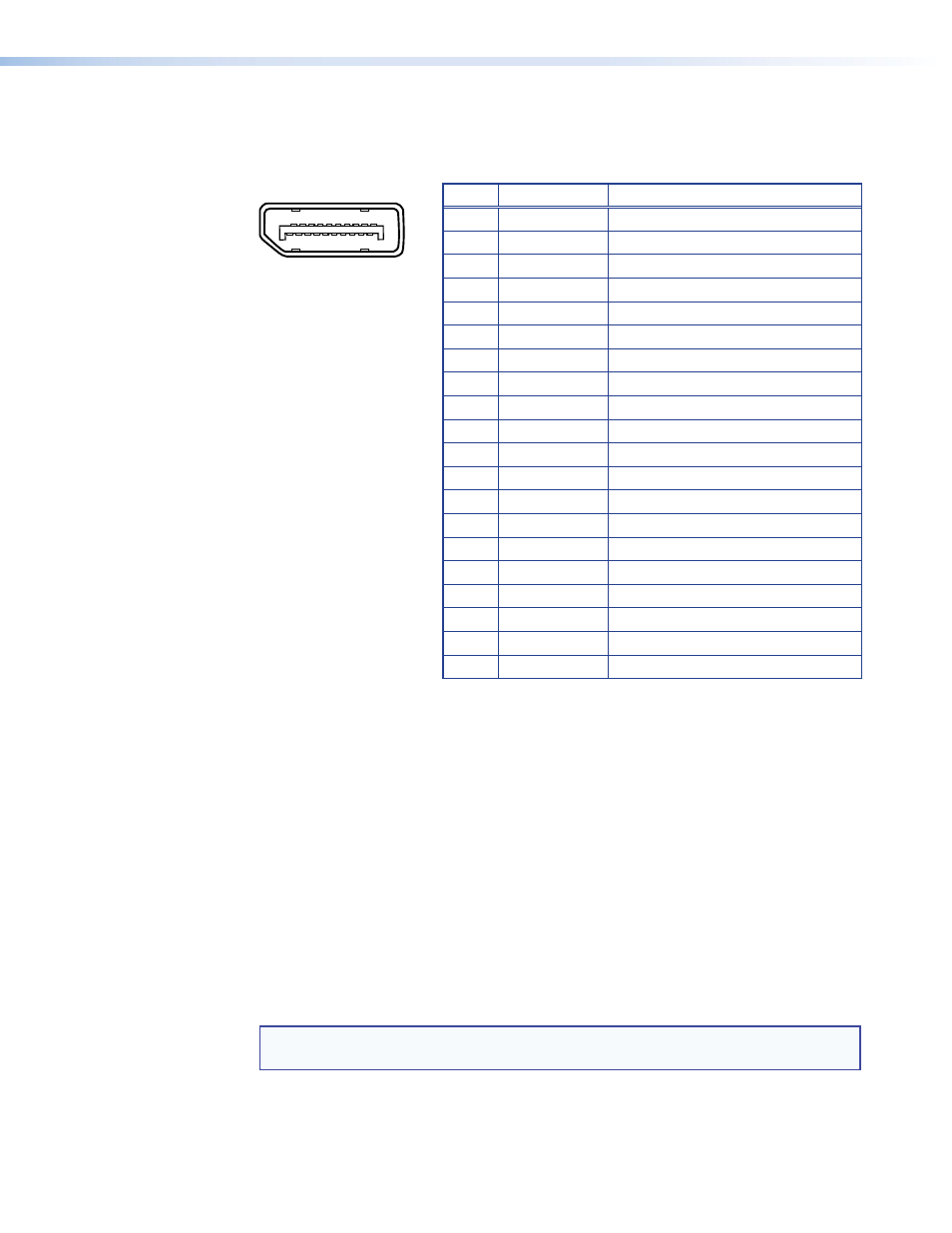

Display Port connectors

Connect the source device to the input socket and up to two display devices to the
output sockets. The connector wiring is shown in the figure and table below.

Pin

Function

Notes

1

ML Lane 0 (p) Main Link Lane 0 (positive)

2

GND

Ground

3

ML_Lane 0 (n) Main Link Lane 0 (negative)

4

ML_Lane 1 (p) Main Link Lane 1 (positive)

5

GND

Ground

6

ML_Lane 1 (n) Main Link Lane 1 (negative)

7

ML_Lane 2 (p) Main Link Lane 2 (positive)

8

GND

Ground

9

ML_Lane 2 (n) Main Link Lane 2 (negative)

10

ML_Lane 3 (p) Main Link Lane 3 (positive)

11

GND

Ground

12

ML_Lane 3 (n) Main Link Lane 3 (negative)

13

CONFIG1

Connected to Ground 1

14

CONFIG2

Connected to Ground 1

15

AUX CH (p)

Auxiliary Channel (positive)

16

GND

Ground

17

AUX CH (n)

Auxiliary Channel (negative)

18

Hot Plug

Hot Plug Detect

19

Return

Return for Power

20

DP_PWR

Power for adapters (3.3 V 500 mA)

The DP DA2 supports data rates of either 1.62 Gbps (reduced bit rate) or 2.7 Gbps (high
bit rate), using either one, two, or four lanes. The DP DA2 supports mini DisplayPort
and dual mode DisplayPort through the use of the appropriate adapters and cables (not
provided).
An equalizer on the input compensates for a poor source signal and allows a cable run of
up to 25 feet (7.62 m).
The DP DA2 supports resolutions up to 2560x1600 @ 60 Hz. In addition, a resolution of
3840x1080 @ 60 Hz can be carried over two outputs and displayed as extended view. If
audio is available from the source, it will also be available to the output devices.
The Key Minder feature ensures that the DP DA2 is fully HDCP compliant. The source
negotiates with the DP DA2 input and the display negotiates with the DP DA2 output. The
input HDCP LED lights green when the source is encrypted and has been authenticated
by the DP DA2 unit. Each output HDCP LED lights green when HDCP has been
authenticated between the source and the corresponding output. The LEDs will not light
if the source does not require HDCP encryption or if the sink device connected to that
output is not HDCP compliant.

NOTE: Extron recommends that the displays connected to outputs 1 and 2 are the

same model or have the same native resolution.

1

19

2

20
