4. Find the MAC address of the CC 100C that is printed on a label on the bottom of the device (12 hex digits, separated by
a hyphen every 2 digits). Type into the Windows command window the following: arp -s 192.168.0.6
address>. Alternatively for an OSX or Linux system, type into the terminal: arp -s 192.168.0.6 >
and press the key. You must have administrative rights to be able to do so (sudo on OSX / Linux).
5. Use the Telnet command to get the CC 100C to recognize the IP address 192.168.0.6. To do this type into the command
window 192.168.0.6 1 and press the key.
NOTE: The number one (1) must be added after the address for this command to work correctly.
The device will immediately refuse the connection on port 1, but will be available for browser access as long as the device
stays powered.
6. To check if the CC 100C is responding you can use the ping command again. To do so type ping 192.168.0.6 and press
. If you get a reply, then the IP address 192.168.0.6 can be used to access the CC 100C using a web browser. If you
get a "
request timed out" notice, repeat step 5 carefully or repeat the entire procedure.
Network Configuration by Web Browser
Normally this device requires no configuration but uses DHCP to configure network settings dynamically.
However, if static (fixed) network settings are needed, follow steps 1 to 3 below. If not, continue at step 4.
1. Open a web browser on the connected PC.
2. In the address field enter the IP address that was announced by the CC 100C (see Step 4 - Address the Unit on page 3),
for example: 192.168.0.12, and press . The software program opens.
3. Select the Configuration tab at the top of the browser window.

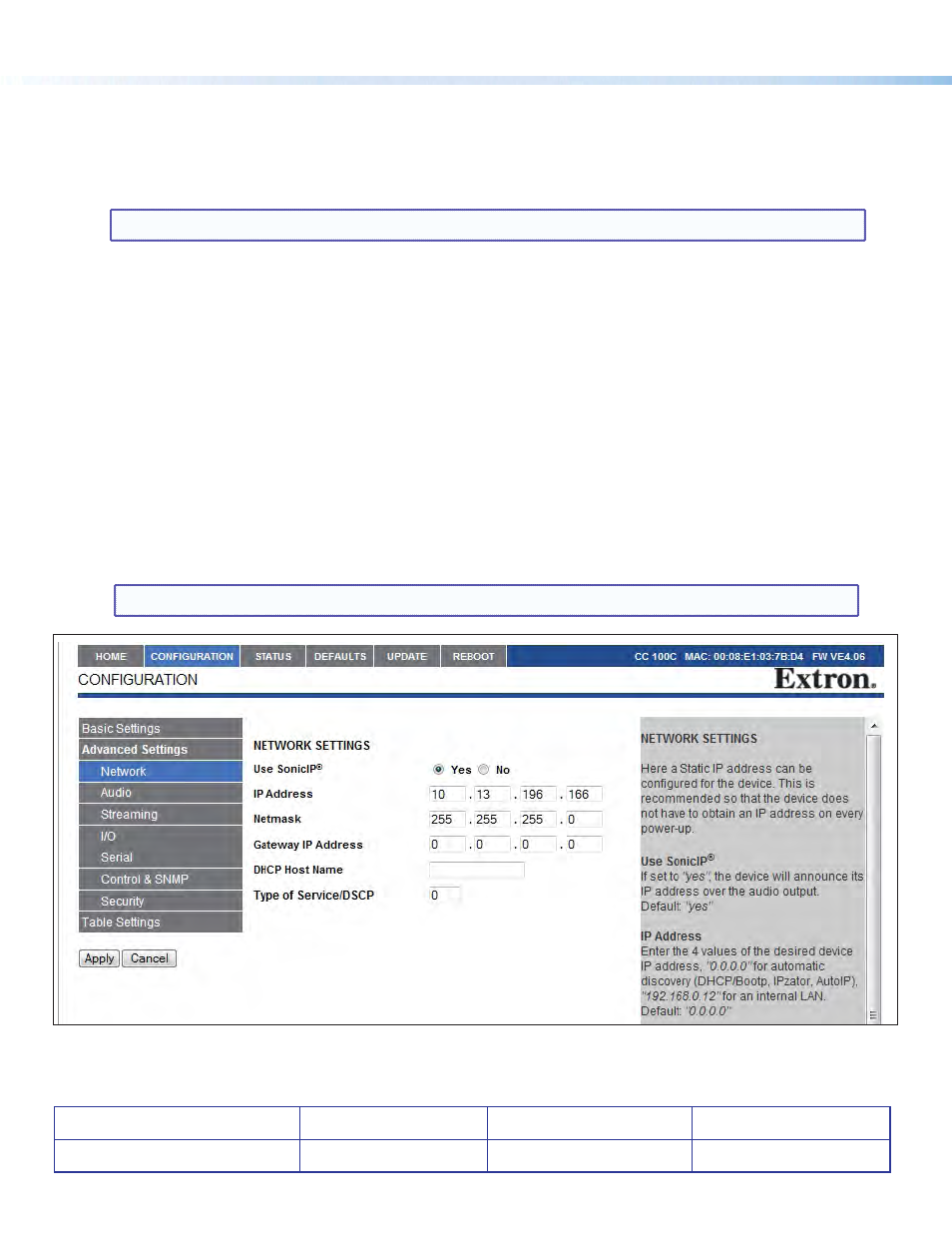

4. Select the Advanced Settings menu from the list at left (see image on page 4).
5. In the Network Settings section, enter the static IP address, the subnet Netmask address, gateway address if applicable.
NOTE: The default 0.0.0.0 sets automatic discovery, BootP, DHCP.
6. Click Apply. The device reboots with the configured IP address.
To complete the application setup, download the firmware documentation from www.extron.com and follow the instructions.
CC 100C • Installation Guide (Continued)
