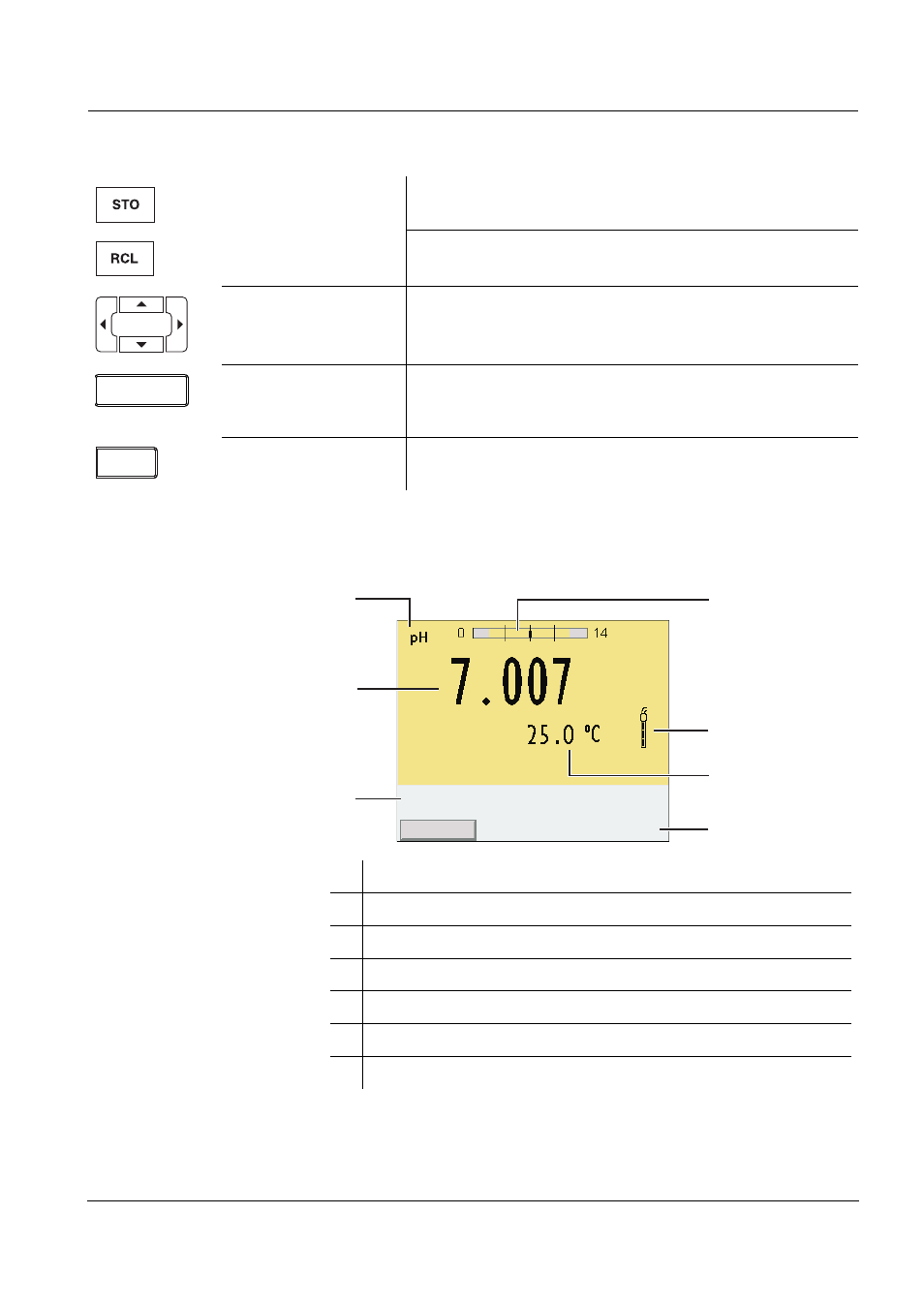

1.2 Display
:
_
>:
Saves a measured value manually
Opens the menu for the automatic save function
:
_
>:
Displays the manually stored measured values
Displays the automatically stored measured values
:
:
Menu control, navigation
_
>:
Opens the menu for measurement settings / Confirms
entries
Opens the menu for system settings
_
>
Outputs stored data to the interface
Outputs displayed data to the interface in intervals
MENU
ENTER
MENU
ENTER
PRT
1 Status information
2 Measured value (with unit)
3 Measured parameter
4 Continuous measurement control (CMC function)
5 Sensor symbol (calibration evaluation, calibration interval)
6 Measured temperature (with unit)
7 Softkeys and date + time
3
2
1
4
5
6
7 22.09.2009 08:00 Info
