11.5 Settings for the recorder

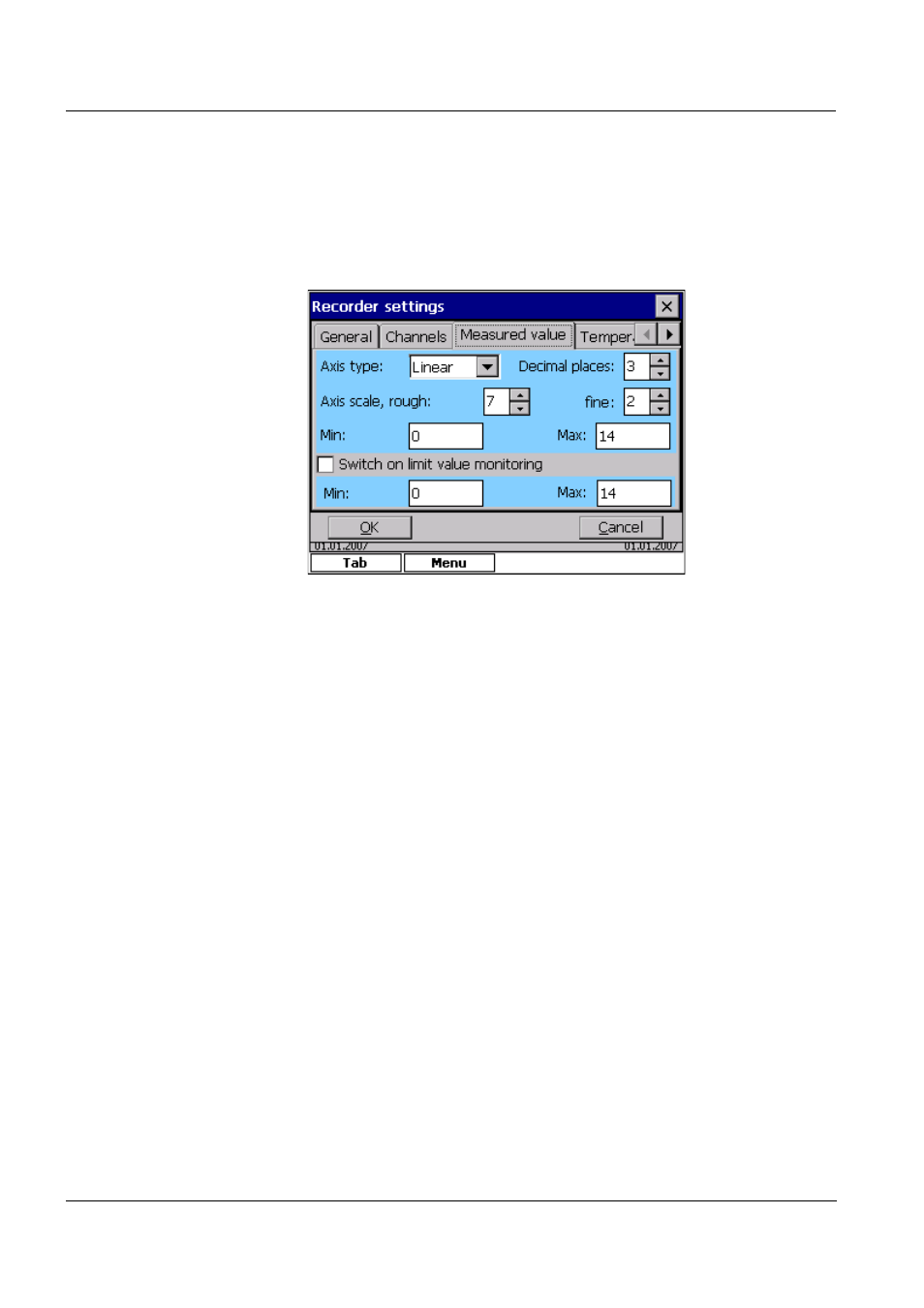

In the Recorder settings dialog box, the appearance of your recorder is
defined. The following settings can be done while the recording is run-
ning or after opening a completed recording.
z Colors for the recorder window (register, General)
– Background color of the system of coordinates
– Color of the legend of the system of coordinates
z Colors of the curves (register, Channels)
– Color of measured value curve (Measured value)
– Color of temperature value curve (Temp.)
z Scaling of the axis for the measured value (register, Measured
value)
– Axis type (linear / logarithmic)
– Minimum and maximum value for the recorder
– Activating the limit value function
– Minimum and maximum limit value for the measured value
z Scaling of the axis for the temperature value (register, Temperature)
– Minimum and maximum value for the recorder
– Activating the limit value function
– Minimum and maximum limit value for the temperature value
z Displayed intercept of the time axis (register, Time)
– Unit of the x axis (Displayed time period)
z Recording interval (register, Time)
