GPRS iCE 3 , V1.30 User Guide
iQuest (NZ) Ltd - PO Box 15169, Hamilton, New Zealand Tel: +64 7 857 0810 Fax: +64 7 857 0811 Email: [email protected] 19

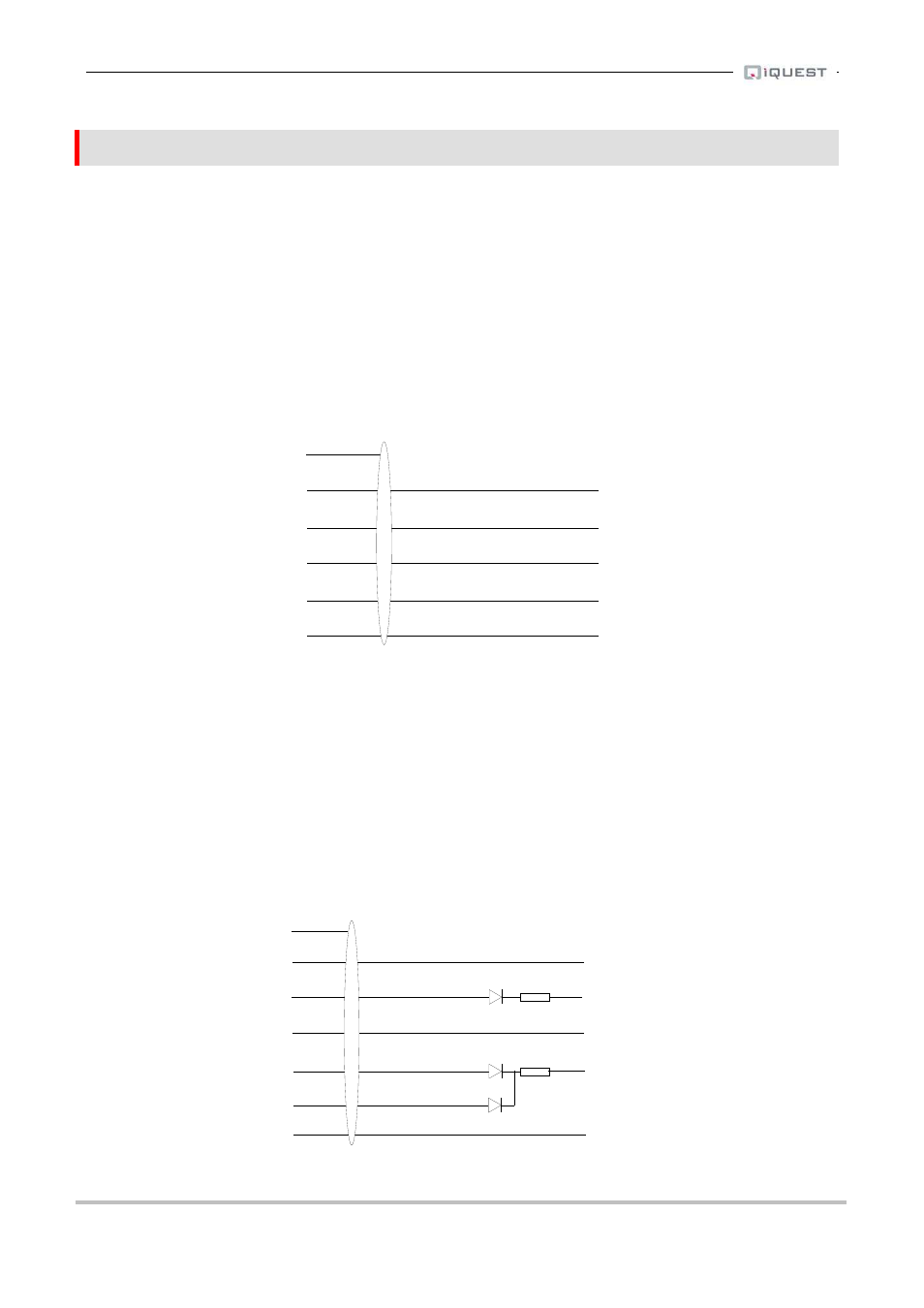

7 Host (RS232) Port - Cable Connections
7.1 Standard (Non-handshake) Device. (No cable label)
This cable is for devices that do not require any special handshaking or prompt character recognition and are
fitted with a DTE configured DB9 female connector. Such devices include the iQuest DS-4483 datalogger
and IBM compatible PCs. See Section 4.2.1 for typical settings for this host type.
A cable of this type is required when configuring the unit from a PC using HyperTerminal® or other terminal
program. See Section 6.1 for more details on using the terminal mode for configuring the device.
7.2 Campbell Scientific Inc Datalogger. (Cable label – “CSIU”)
This cable is used for Campbell Scientific dataloggers such as the CR10x, CR500 etc. The cable includes
the necessary components to match the differing voltage levels between the iCE
3
RS232 port and the CSI
datalogger’s serial port. It also handles both IP and CSD (dial-up) connections. See Section 4.2.2 for typical
settings for this host type.
TXD (IN) 2
RXD (OUT) 6
0V (SIGNAL) 9
CTS (OUT) 11
RTS (IN) 12
3 TXD (OUT)
2 RXD (IN)
5 OV (SIGNAL)
8 CTS (IN)
7 RTS (OUT)
FRAME GND
iCE 3
DB15 (M)
Std Device
DB9 (F)
SCREEN
TXD (IN) 2
RXD (OUT) 6
0V (SIGNAL) 9
CTS (OUT) 11
RTS (IN) 12
9 TXD (OUT)
4 RXD (IN)
2 OV (SIGNAL)
3 RING (IN)
5 ME (OUT)
FRAME GND
iCE 3
DB15 (M)
CSI Datalogger
DB9 (M)
2K2
2K2
1N4148
1N4148
SCREEN
DCD (OUT) 1
1N4148
