1.2 Structure of the SensoLyt
®
700 IQ (SW)

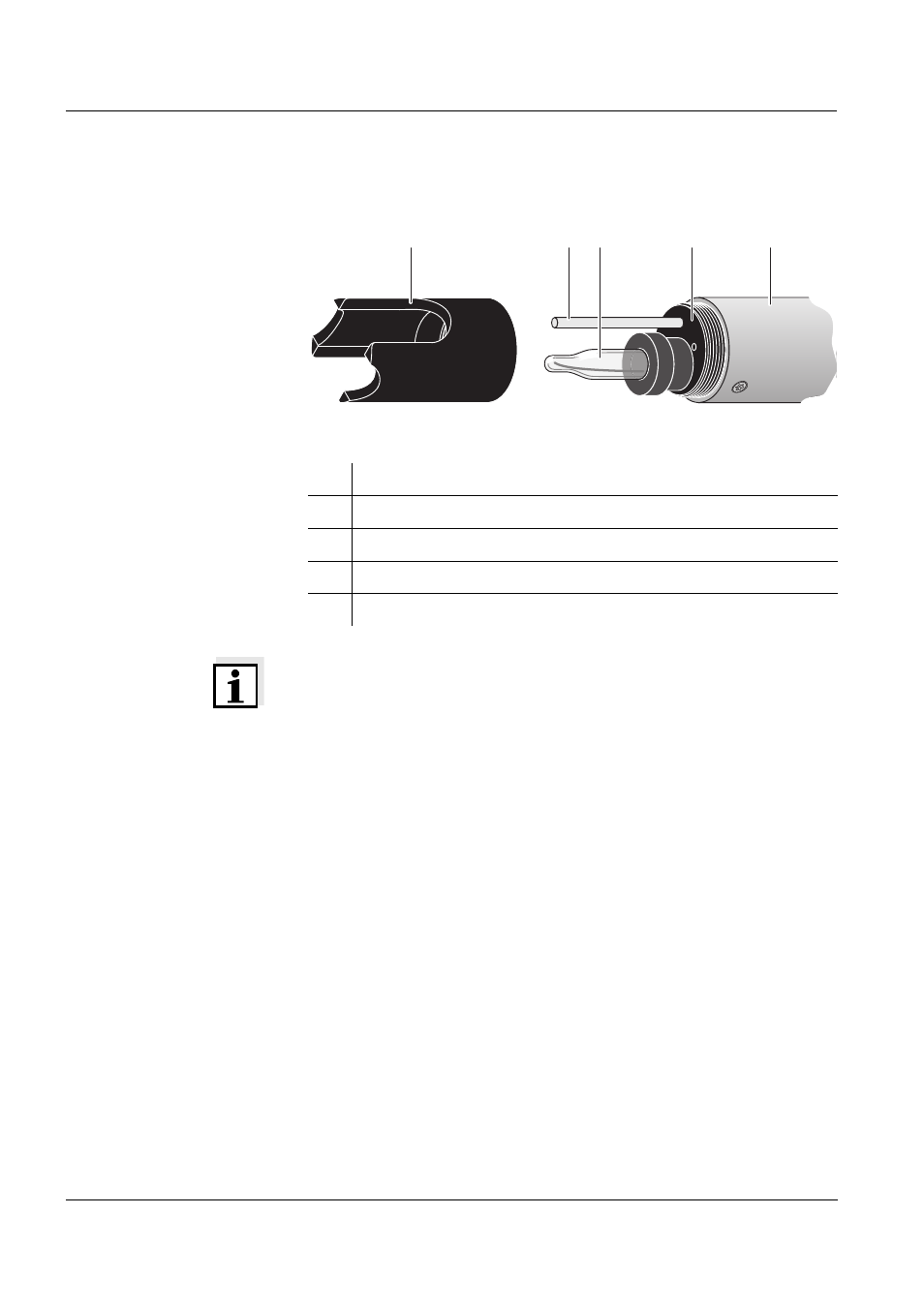

Fig. 1-2 Structure of the pH/ORP sensor (example, SensoLyt
®
700 IQ)
Note
The pH combination electrodes that can be used are available as
accessories (see chapter 6 R
EPLACEMENT PARTS AND ACCESSORIES ).
Screening of the pH/
ORP sensor
The combination electrode and the SensoLyt

700 IQ pH/ORP sensor
together with the IQ S ENSOR N ET system form a measuring system that
is protected to a high degree against low and high frequency
interference as well as against the indirect effects of lightning strikes.
Glass breakage
monitoring
The sensor is equipped with a SensCheck function for monitoring glass
breakage.
1.3 Recommended fields of application
In conjunction with the SensoLyt

SEA, SensoLyt

DWA and
SensoLyt

‚ ECA pH combination electrodes as well as the SensoLyt

PtA ORP combination electrode, the SensoLyt

700 IQ pH/ORP
sensor is suitable for stationary pH or ORP measurement in the
following ranges.
SensoLyt 700 IQ Stationary measurements in water/wastewater applications.
SensoLyt 700 IQ SW Stationary measurements in seawater and brackish water,
aquaculture.
1 Protective hood
2 Temperature sensor
3 Combination electrode (not contained in the scope of delivery)
4 Electrode holder
5 Sensor shaft
1 2 3 4 5
