Overview MIQ/IC2
1 - 2 ba76034e01 01/2012
1.2 Features of the MIQ/IC2
General characteristics The MIQ/IC2 current input module provides two 0/4 ... 20 mA current
inputs for the IQ S
ENSOR N ET and thus enables to connect external me-
ters via their current output. Measured values of the external meters
can be displayed, recorded and processed like the measured values
from IQ S
ENSOR N ET sensors.
Examples of external meters:
 Measuring transmitters by YSI

Measuring transmitters by other manufacturers
 Measuring transmitters with explosion protection via a power sup-
ply/isolator
 Analyzers

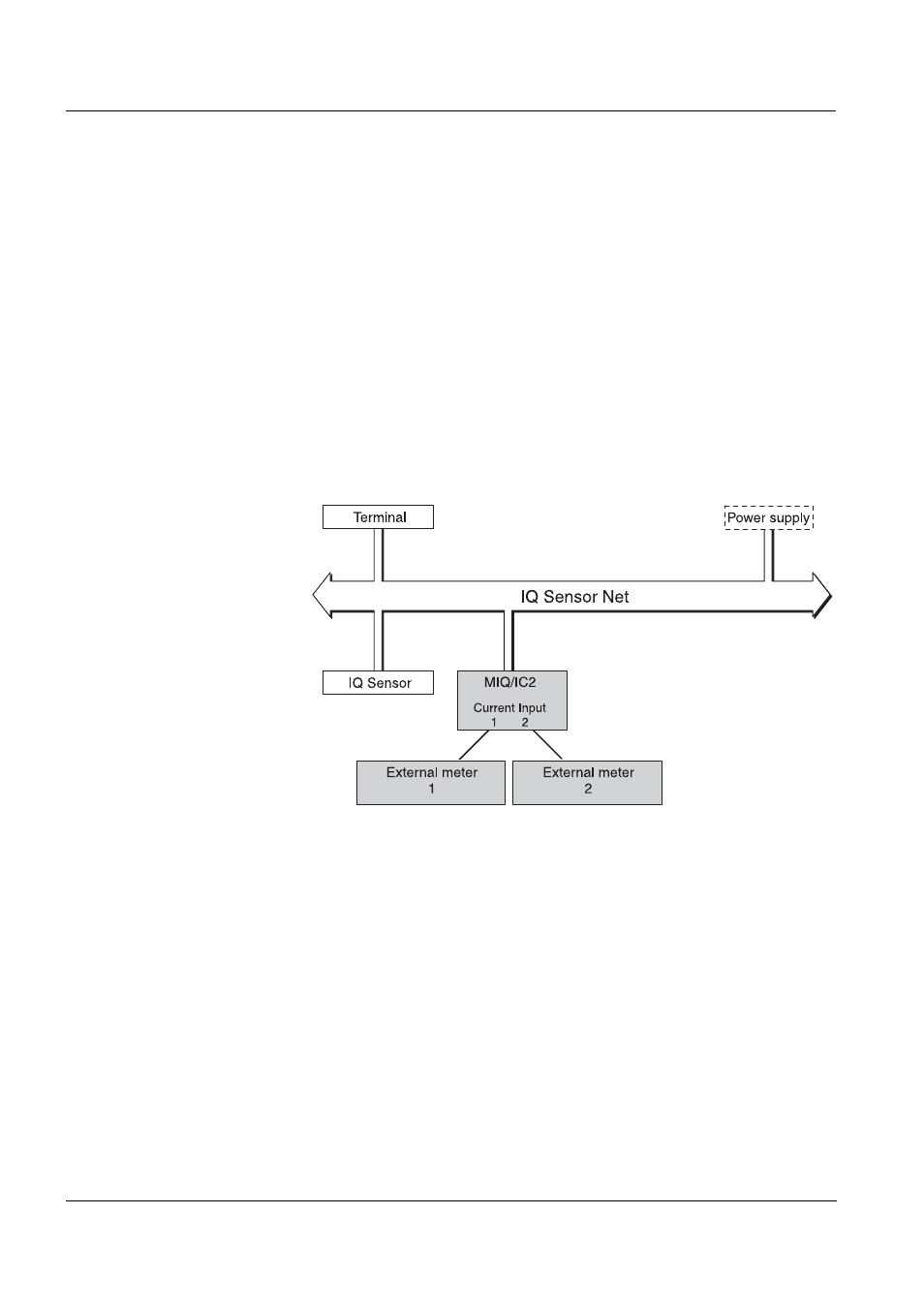

Fig. 1-2 Connection of external meters to the IQ S ENSOR N ET
With the standard MIQ module housing, the MIQ/IC2 has the same
characteristics as all MIQ modules regarding stability, leakproofness
and weather resistance. It also provides the same wide variety of instal-
lation options (stacked mounting, canopy mounting, tophat rail
mounting, etc.).
Terminal strip The MIQ/IC2 has the following electrical connections on the terminal
strip inside the housing:
 2 x current input (0/4 ... 20 mA)
 2 x SENSORNET connection
 1 x power supply/isolator feed-in
