Installation MIQ/IC2
3 - 2 ba76034e01 01/2012
 Any wires that are not used and project into the housing must be cut
off as closely as possible to the cable gland.
Materials required  Wire end sleeves, suitable for the connecting wires, with suitable
crimping tool
 Cable gland with sealing ring (scope of delivery of the MIQ/IC2)
Tools

Cable stripping knife
 Wire stripper
 Phillips screw driver
 Small screw driver
Connecting lines to the
terminal strip

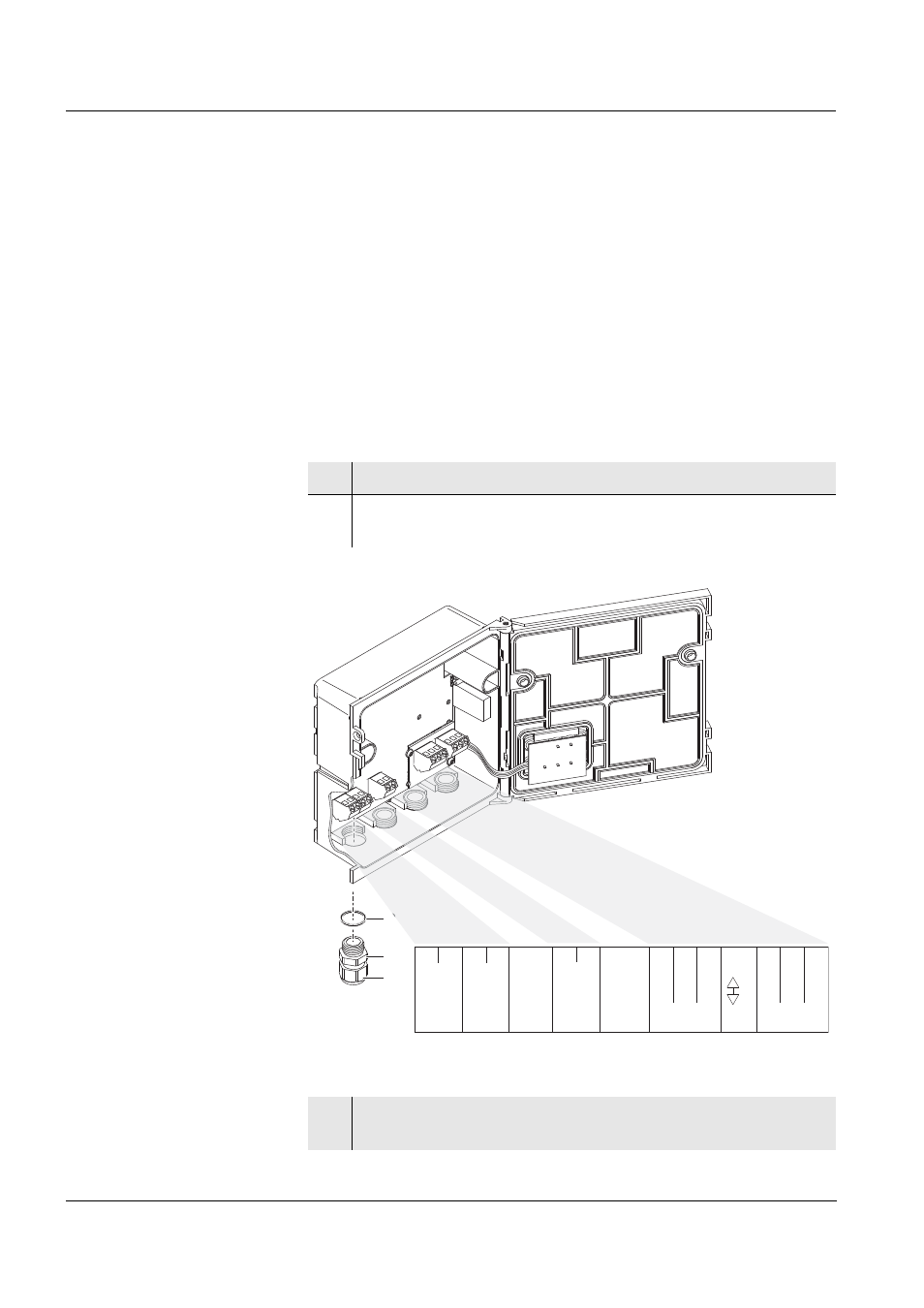

Fig. 3-1 Terminal strip MIQ/IC2
1 Open the module.
2 Open the dummy screw fitting under the required input. Keep
the dummy screw fitting for possible later modifications.
3 Screw the cable gland (pos. 1 in Fig. 3-1) with the sealing ring
(pos. 2) into the module housing.
1
3
2
SENSORNET 2 SENSORNET 1
ON
OFF
X6
RED RED
SN
TERMINA
TO
R
SHIELD GREEN SHIELD GREEN
X5 X4 X3 X2 X1 X8 X9 X7 X11 X12 X10
24V 0/4...20mA 0/4...20mA
Current
Input 1
Supply
max
240 mA
Current
Input 2
+ REC 1- + REC 2 - + Power -
