MIQ/IC2 Settings
4 - 3 ba76034e01 01/2012

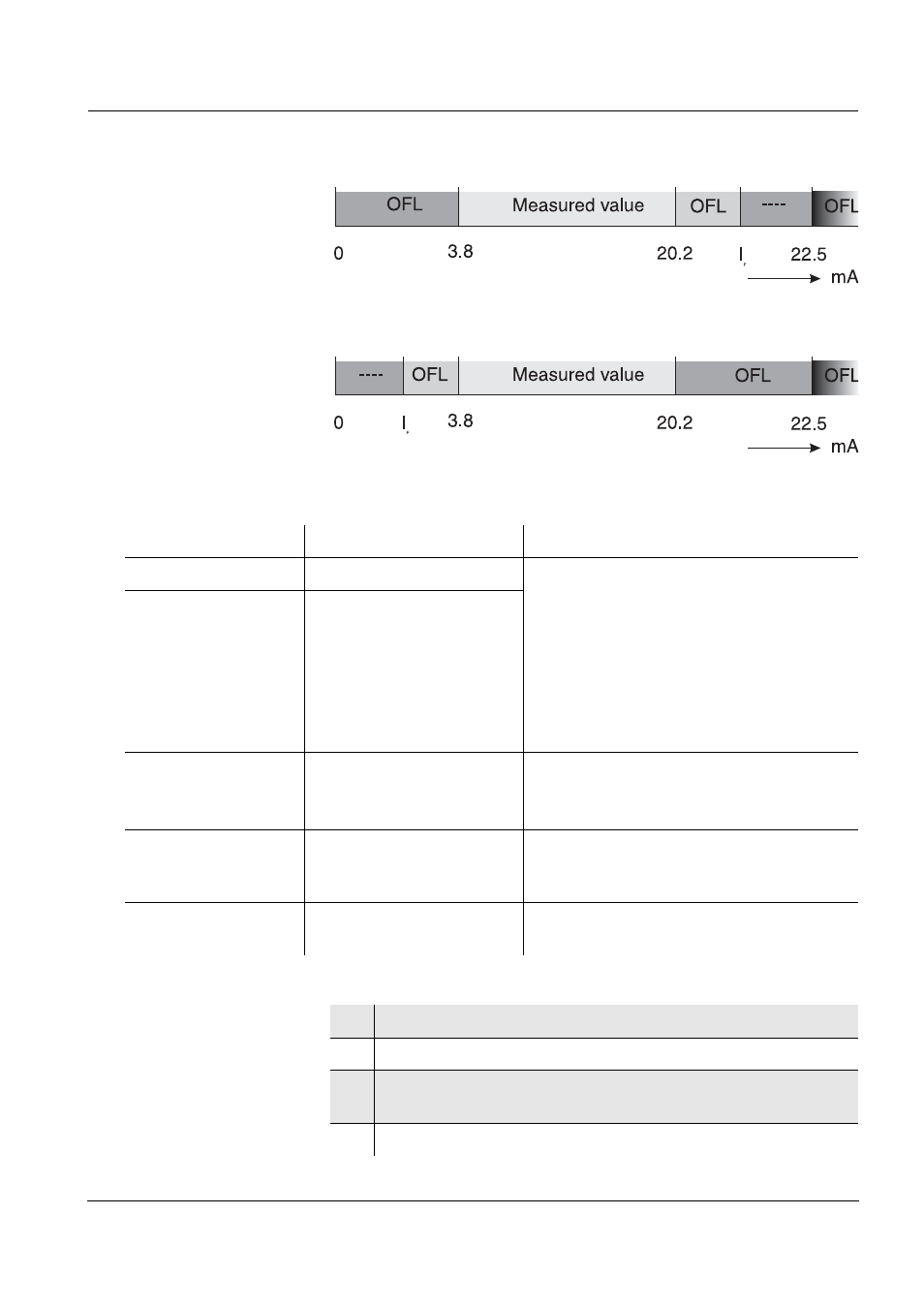

Fig. 4-3 Measuring range: 4 ... 20 mA, Error detection >= Error threshold (IF);
IF = 20.5 mA
Fig. 4-4 Measuring range: 4 ... 20 mA, Error detection <= Error threshold (IF)
IF = 3.5 mA
Carrying out settings
Menu item Possible settings Explanations
Unit ..... Entry of texts for Unit and Measured para-
meter. The texts entered appear in the
measured value display next to the mea-
sured value.
The text is entered with
d
and
g
(see system operating manual)
e.g. Unit = mg/l
e.g. Measured parameter = O2
Measured parameter .....
MIQ/IC2 REC2
(in the setting menu of
current input 1 only)

active
 inactive
Activate or deactivate current input 2
Save and quit The system confirms the saving of the set-
tings and the display switches to the next
higher level.
Quit The display switches to the next higher
level without saving the new settings.
1 Switch to the measured value display with
m
.
2 Open the Settings menu with
s
.
3 Select and confirm the menu item Settings of sensors and diff.
sensors -> column Measuring range with
d
and
g
.
4 Select an entry with
d
.
