8

PUMP SER

VICE INSTRUCTIONS FOR CENTRIFUGAL PUMPS (EXCEPT ‘B’ OR 609)

Vertical mounting puts motor above floor direct and water

Close coupled centrifugal pumps ar

e designed for years of trouble free

service. Units have mechanical shaft seals.

1. Close inlet gate valve and operate pump momentarily to remove as

much liquid as possible from pump. Close discharge line gate
valve.

2. Shut-off and lock out power.

3. Make sure unit is cool enough that pump can be handled safely.

Open drain to remove remaining liquid.

4. Carefully remove pump drain plug and bleed line. Wait for com-

plete drainage.

5. Loosen the motor bracket to pump volute capscrews. Assure that

the pressure is relieved per caution note.

6. Complete the removal of the hardware. Remove pump/motor

assembly and place on work bench.

7. Remove self locking stainless steel capscrews and stainless steel

washer (or self locking brass cap nut and washer) that secure the
impeller in place.

8. To remove impeller from motor shaft proceed as follows:

(1) Keyed Shafts. Remove impeller with gear puller or other means

which will not damage impeller or bend motor shaft.

(2) Threaded Shafts. Hold end of motor shaft opposite pump with

large screwdriver or other suitable tool and back impeller off
with a rectangular bar or other flat tool inserted between the
vanes of the impeller.

9. Remove rotating part of seal from shaft, being careful not break

carbon face.

10. Remove capscrews holding motor bracket to motor and remove

bracket.

11. Remove stationary part of seal assembly, being careful not to chip

or break ceramic seal.

12. To install seal proceed as follows:

(1) Clean recess in bracket thoroughly. Coat recess and “rubber”

portion of seat with soap solution. Press seat into recess firmly
by hand making certain both parts bottom evenly. If seal can-
not be bottomed with fingers place cardboard shipping disc on
ceramic and force into place with tool.

(2) Carefully place bracket in position on motor shaft without

displacing ceramic seat and secure bracket to motor with
capscrews.

(3) Place motor vertically with pump end up. Do not attempt

assembly of seal and impeller with shaft horizontal.

(4) The “carbon” of rotating part of seal should not be loose. If it is,

hold in place with grease, Using clean, lint free cloth, wipe
mating surfaces perfectly clean. Soap shaft and push seal onto
shaft so that carbon will contact ceramic seal. If spacer is
required, use grease to cause spacer to adhere to bottom of
seal after seal has been put on shaft, Be sure spacer is on
larger diameter of shaft so that will not catch between shoulder
and impeller.

13. Replace impeller on shaft. Replace stainless steel washer and

secure impeller with capscrew or cap nut.

14. Place new gasket on pump volute and reassemble motor and

pump subassembly on pump volute.

15. Reconnect pump bleed line and motor wiring.

16. Close drain and slowly open inlet valves. See warning.

17. Jog to check motor rotation. See caution.

18. Observe operation thru several cycles.

CAUTION:

PRESSURIZED SYSTEM

Operating system may contain very hot water

. Close inlet

and open drains before servicing. When servicing,

loosen scr

ews

and move components to assure pressure is relieved before

r

emov-

ing

scr

ews. Keep drains open during servicing. Failure to follow

these instructions could result in injury or death.

CAUTION:

HOT SURFACE

Surfaces ar

e hot when system is in operation. Do not touch

hot receiver, let unit cool before servicing. Failure to follow these
instructions could result in serious injury or death.

W

ARNING: HIGH VOLTAGE

Disconnect and lock out power befor

e connecting servicing

unit. Failure to follow these instructions could result in serious injury
or death.

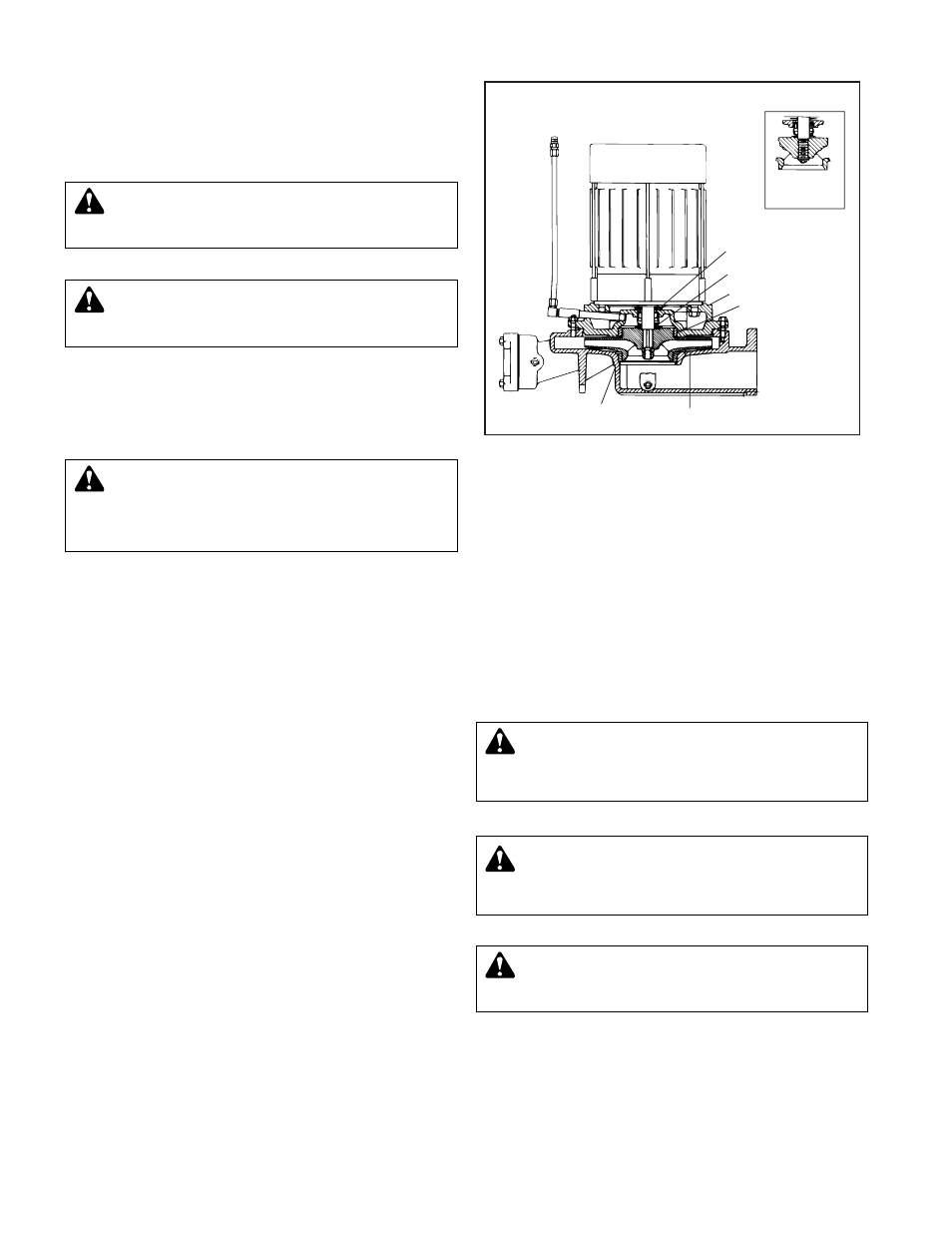

WATER
SLINGER

VIEW OF

THREADED

IMPELLER

WEAR RING

IMPELLER

2DPF03

VOLUTE

MOTOR BRACKET

MECHANICAL
SEAL

W

ARNING: EXPLOSIBLE

Do not pr

essurize receiver. Isolate receiver during leak test.

Do not plug overflow. Do not restrict vent opening to atmosphere.
Open valves slowly. Failure to follow these instructions could result
in serious injury or death.

CAUTION:

DO NOT REVERSE

Reverse operation can cause extensive damage to pumps.

Jog the motor to test for direction of rotation. Failure to follow these
instructions could result in serious injury or death.

CAUTION:

DO NOT RUN DRY.

SEAL DAMAGE MAY OCCUR

Inspect pump seal r

egularly for leaks Replace as required.

Failure to follow these instructions could result in serious injury or
death.
