OPERATING INSTRUCTIONS

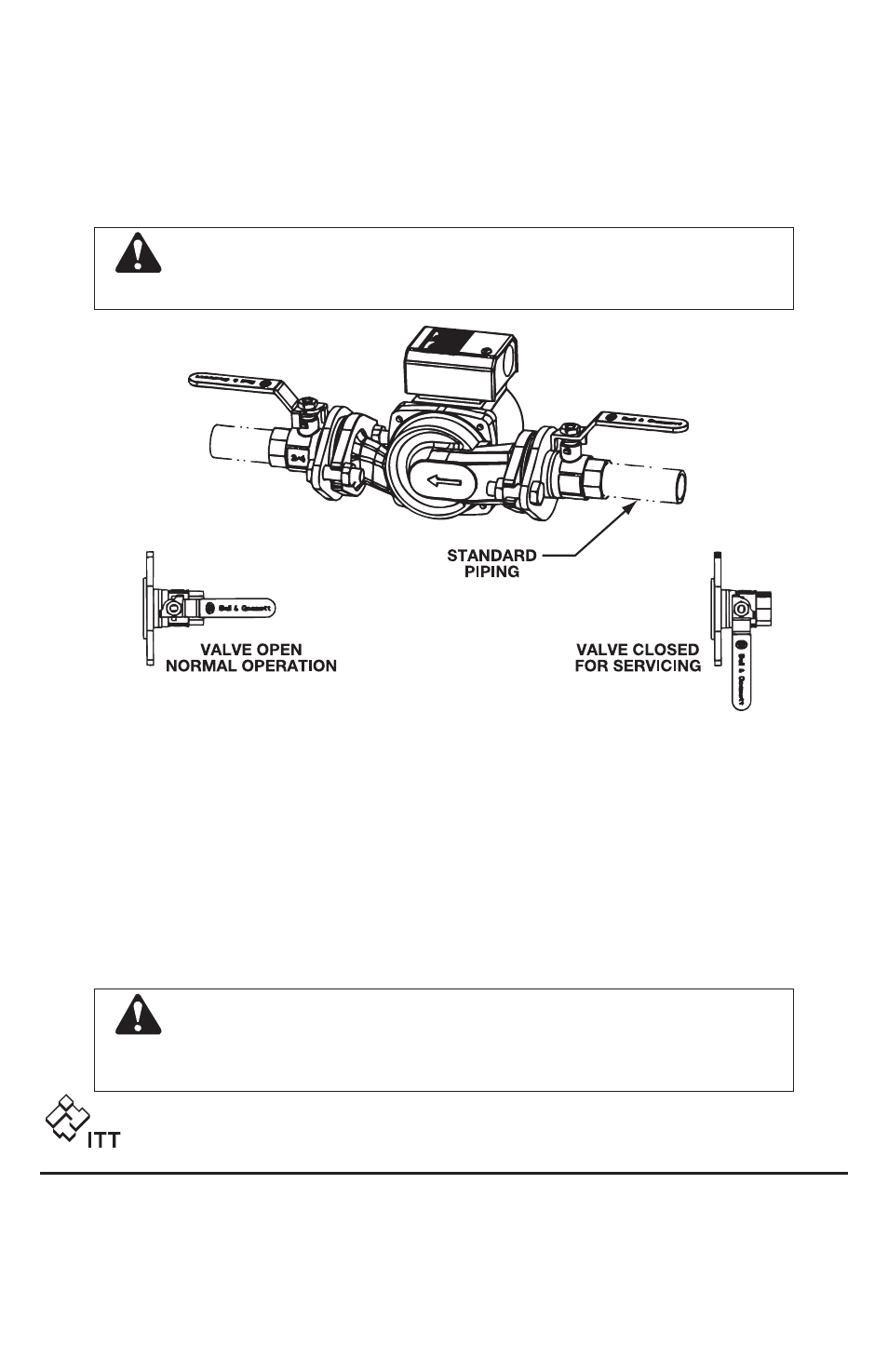

To isolate the circulator from the system, turn the handle of both isolation valves
clockwise 90° to close the valve. Remove circulator for repair/replacement.
IMPORTANT: Relieve pressure from the circulator by slowly loosening the bolts allowing
the water to slowly drain from the pump body. Refer to the circulator instruction manual
when reinstalling a circulator. After a pump is reinstalled, turn the handle of both isolation
valves counterclockwise 90° to open the valves for normal operation.
SERVICE INSTRUCTION
There is no service required for the isolation flange.
CAUTION: Corrosion or leakage of the IF valve can cause damage or injury.
Periodically inspect the IF valve for signs of leakage or corrosion. If corrosion
or leakage is noted, the IF valve must be replaced. Failure to follow these instructions
could result in property damage and/or moderate personal injury.
