2x3W Stereo Differential Input Class D Audio Amplifier
with Up/Down Volume Control

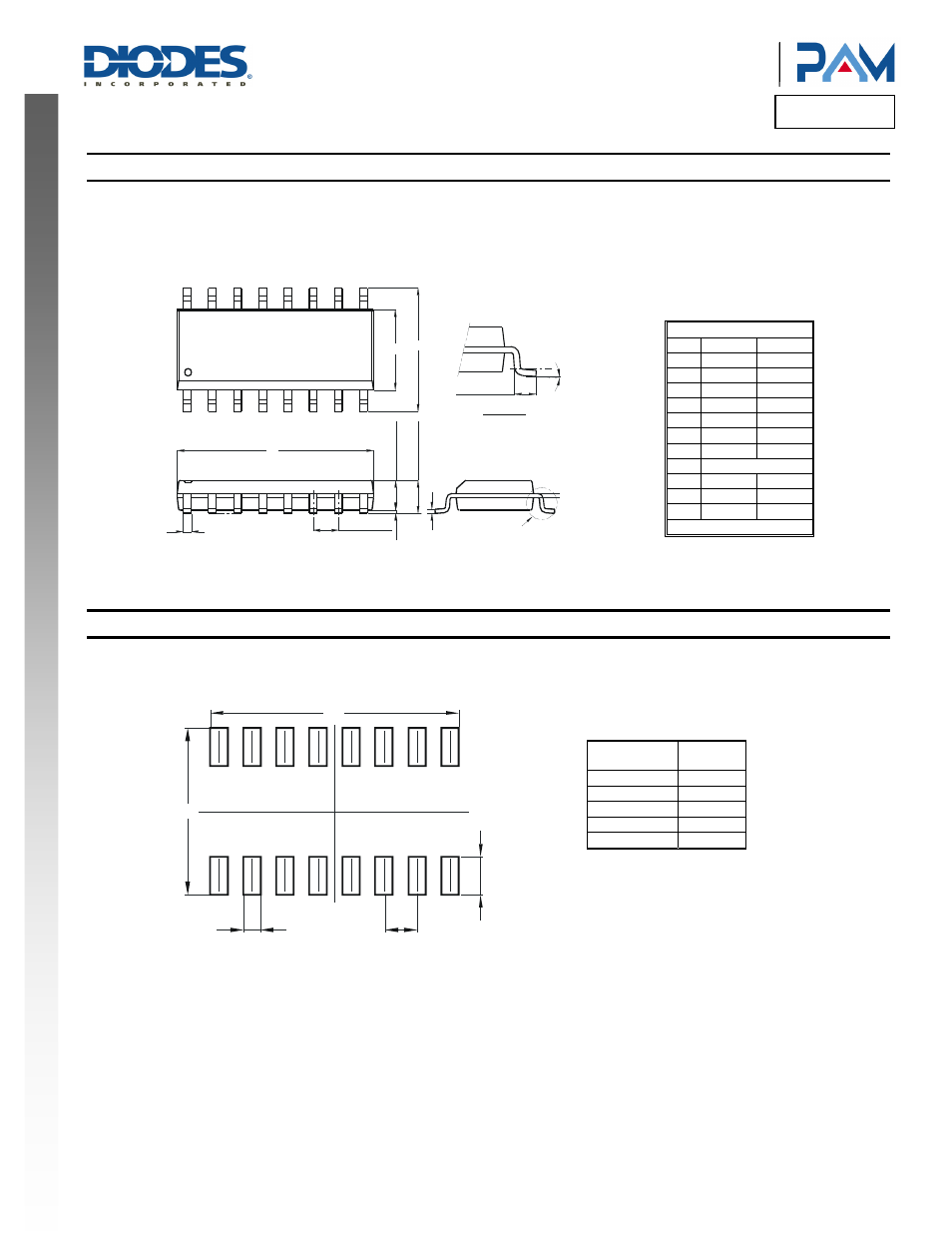

Package Outline Dimensions
(All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Package:
SO-16
Suggested Pad Layout
(All dimensions in mm.)
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
SO-16
Dim Min Max
A 1.40 1.75
A1 0.10 0.25
A2 1.30 1.50
B 0.33 0.51
C 0.19 0.25
D 9.80 10.00
E 3.80 4.00
e 1.27 Typ
H 5.80 6.20
L 0.38 1.27
 0  8 
All Dimensions in mm
Dimensions
Value
(in mm)
C 1.270
X 0.670
X1 9.560
Y 1.450
Y1 6.400
D
E
H
L
A2
B e A1
A
C
Detail ‘A’
Detail ‘A’
Gauge Plane

X1
X C
Y
Y1
Pin 1
