LMV321/ 324/ 358

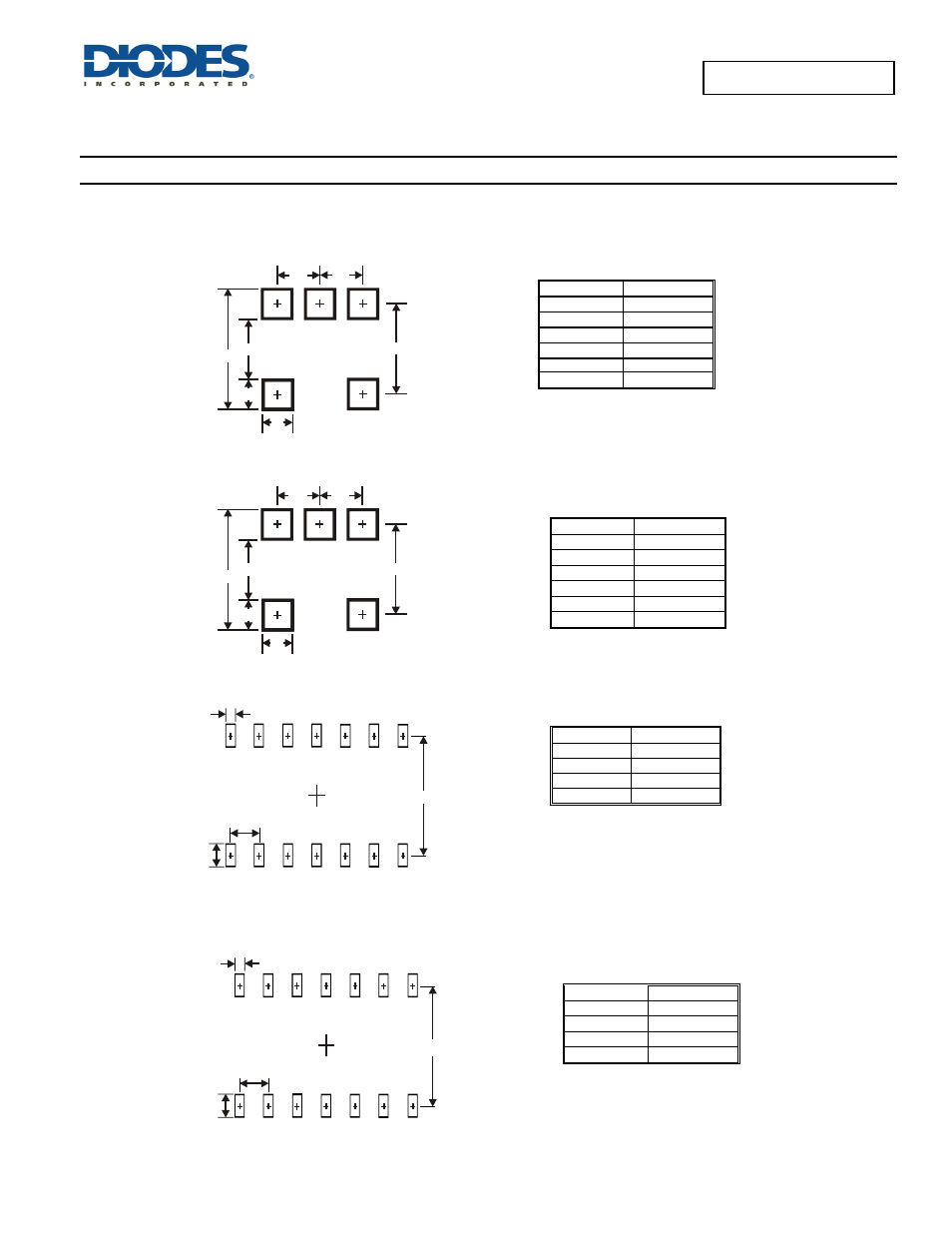

Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
SOT25
SOT353
SO-14
TSSOP-14
Dimensions Value (in mm)
Z 3.20
G 1.60
X 0.55
Y 0.80
C1 2.40
C2 0.95
Dimensions Value (in mm)
Z 2.5
G 1.3
X 0.42
Y 0.6
C1 1.9
C2 0.65
Dimensions Value (in mm)
X 0.60
Y 1.50
C1 5.4
C2 1.27
Dimensions Value (in mm)
X 0.45
Y 1.45
C1 5.9
C2 0.65
X
Z
Y
C1
C2 C2
G
X
Z
Y
C1
C2 C2
G
X
C1
C2
Y
X
C1
C2
Y
