LMV321/ 324/ 358

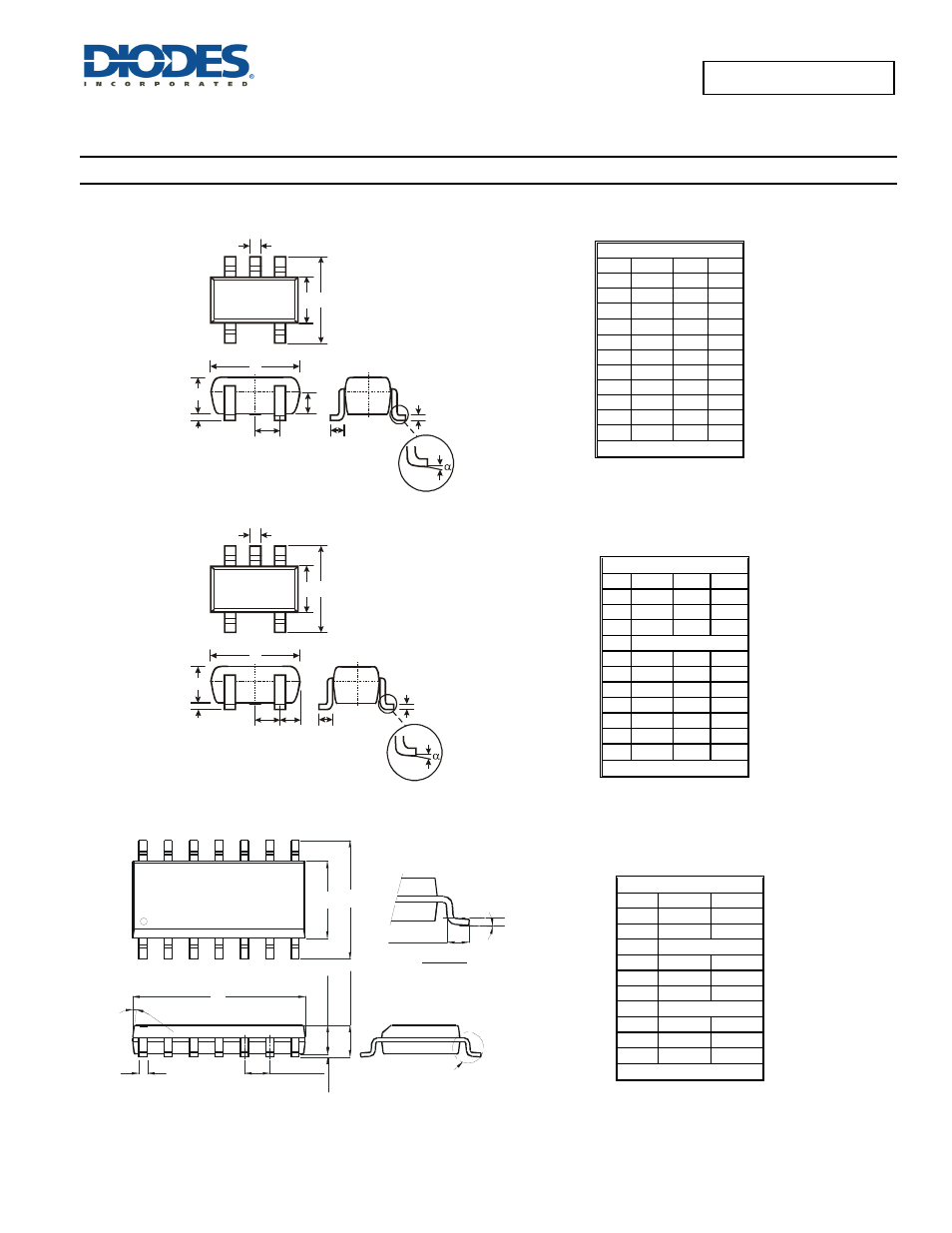

Package Outline Dimensions
(All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
SOT25
SOT353
SO-14
SOT25
Dim Min Max Typ
A 0.35 0.50 0.38
B 1.50 1.70 1.60
C 2.70 3.00 2.80
D ⎯ ⎯ 0.95
H 2.90 3.10 3.00
J 0.013 0.10 0.05
K 1.00 1.30 1.10
L 0.35 0.55 0.40
M 0.10 0.20 0.15
N 0.70 0.80 0.75
α 0° 8° ⎯
All Dimensions in mm
SOT353
Dim Min Max Typ
A 0.10 0.30 0.25
B 1.15 1.35 1.30
C 2.00 2.20 2.10
D 0.65 Typ
F 0.40 0.45 0.425
H 1.80 2.20 2.15
J 0 0.10 0.05
K 0.90 1.00 1.00
L 0.25 0.40 0.30
M 0.10 0.22 0.11
α 0° 8° -
All Dimensions in mm
SO-14
Dim Min Max
A 1.47 1.73
A1 0.10 0.25
A2 1.45 Typ
B 0.33 0.51
D 8.53 8.74
E 3.80 3.99
e 1.27 Typ
H 5.80 6.20
L 0.38 1.27
θ 0 ° 8 °
All Dimensions in mm
