LMV321/ 324/ 358

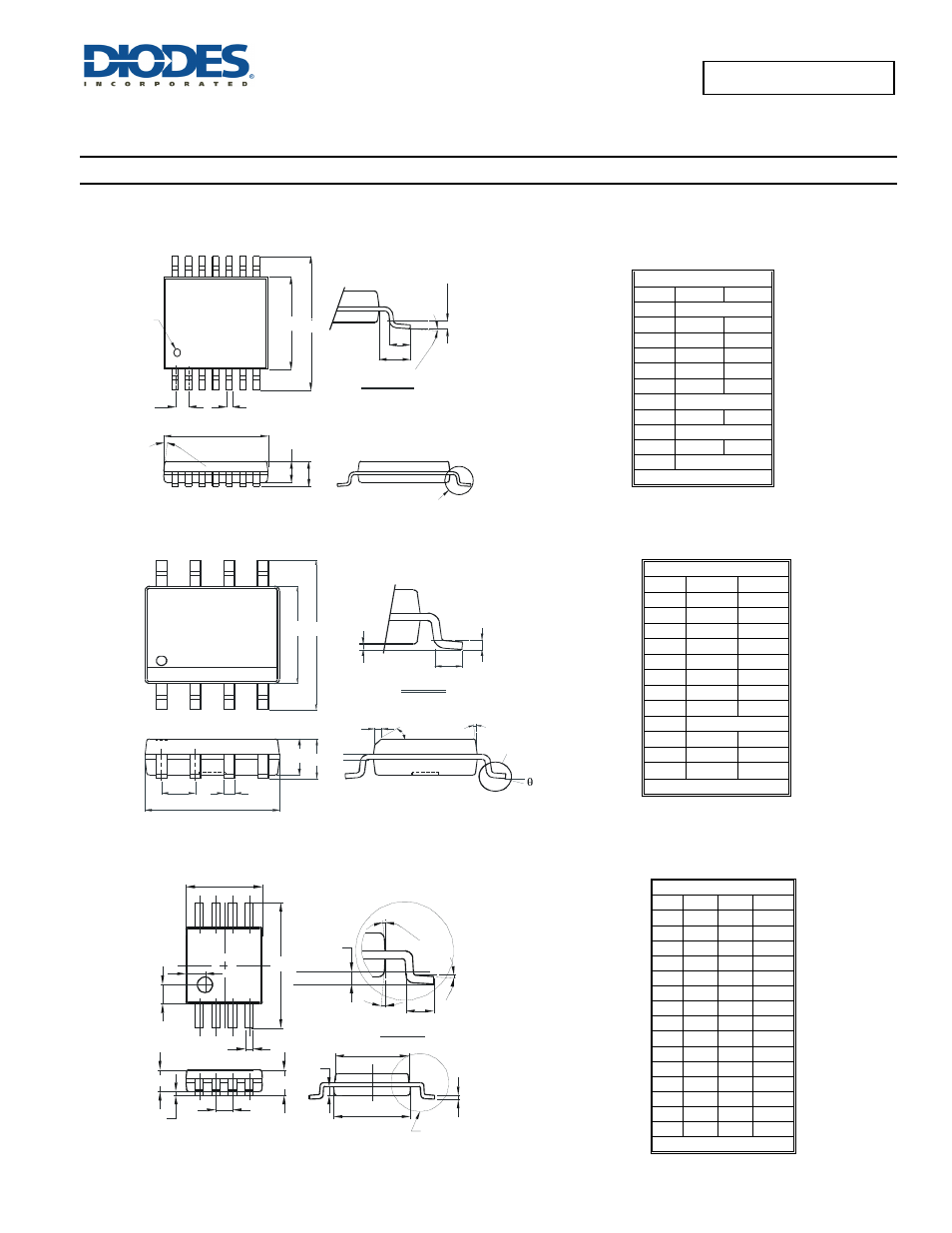

Package Outline Dimensions
(cont.) (All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
TSSOP-14
SO-8
MSOP-8
TSSOP-14
Dim Min Max
a1 7° (4X)
a2 0 ° 8°
A 4.9 5.10
B 4.30 4.50
C ⎯ 1.2
D 0.8 1.05
F 1.00 Typ
F1 0.45 0.75
G 0.65 Typ
K 0.19 0.30
L 6.40 Typ
All Dimensions in mm
SO-8
Dim Min Max
A - 1.75
A1 0.10 0.20
A2 1.30 1.50
A3 0.15 0.25
b 0.3 0.5
D 4.85 4.95
E 5.90 6.10
E1 3.85 3.95
e 1.27 Typ
h - 0.35
L 0.62 0.82
θ 0 ° 8 °
All Dimensions in mm
MSOP-8
Dim Min Max Typ
A - 1.10 -
A1 0.05 0.15 0.10
A2 0.75 0.95 0.86
A3 0.29 0.49 0.39
b 0.22 0.38 0.30
c 0.08 0.23 0.15
D 2.90 3.10 3.00
E 4.70 5.10 4.90
E1 2.90 3.10 3.00
E3 2.85 3.05 2.95
e - - 0.65
L 0.40 0.80 0.60
a 0° 8° 4°
x - - 0.750
y - - 0.750
All Dimensions in mm
