30V COMPLEMENTARY ENHANCEMENT MODE MOSFET H-BRIDGE
Product Summary
Device
V
(BR)DSS
R
DS(ON)
max
I
D
max
T
A
= +25°C
N-Channel 30V
25mΩ @ V
GS
= 10V
6.0
40mΩ @ V
GS
= 4.5V
4.6
P-Channel -30V
50mΩ @ V
GS
= -10V
-4.2
80mΩ @ V
GS
= -4.5V
-3.2
Description
This new generation complementary MOSFET H-Bridge features low
on-resistance achievable with low gate drive.
Applications
DC Motor control
DC-AC
Inverters
Features
2 x N + 2 x P channels in a SOIC package
Low
On-Resistance
Low Input Capacitance
Fast Switching Speed
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
SO-8
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal
Connections
Indicator: See diagram
Terminals:
Finish
Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.008 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMHC3025LSD-13
SO-8
2500/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at

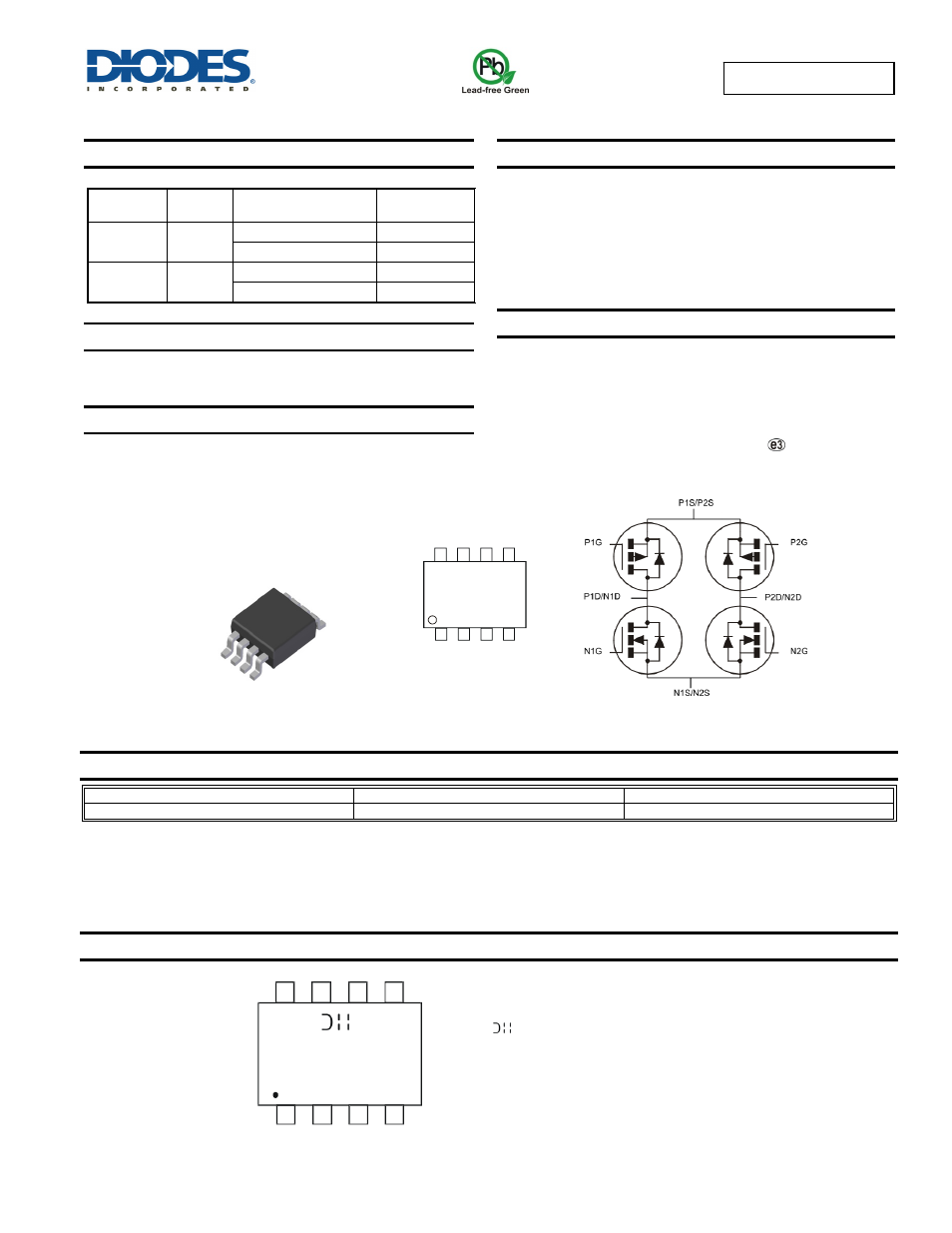

Marking Information
Top View
Internal Schematic
Top View
Pin Configuration
SO-8
H-Bridge
P1
G
P1
S/
P2
S
N2
D
/P
2D
P2
G
N
2G
N1
S
/N2
S
N1
D/
P
1D
N1
G
1
4
8
5
C3025LS
YY
WW
= Manufacturer’s Marking
C3025LS = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 09 = 2009)
WW = Week (01 - 53)
