MBR20100C
Ordering Information
(Cont. Note 4)
Package Part Number Marking ID Packing
TO-252-2 (1) MBR20100CD-E1 (Note 5) MBR20100CD-E1 100 Pieces/Tube
TO-252-2 (1) MBR20100CD-G1 MBR20100CD-G1 100 Pieces/Tube
TO-252-2 (1) MBR20100CDTR-E1 (Note 5) MBR20100CD-E1 2500 Pieces/Tape & Reel
TO-252-2 (1) MBR20100CDTR-G1 MBR20100CD-G1 2500 Pieces/Tape & Reel
TO-263-2 MBR20100CS2-E1 (Note 5) MBR20100CS2-E1 50 Pieces/Tube
TO-263-2 MBR20100CS2-G1 MBR20100CS2-G1 50 Pieces/Tube
TO-263-2 MBR20100CS2TR-E1 (Note 5) MBR20100CS2-E1 800 Pieces/Tape & Reel
TO-263-2 MBR20100CS2TR-G1 MBR20100CS2-G1 800 Pieces/Tape & Reel

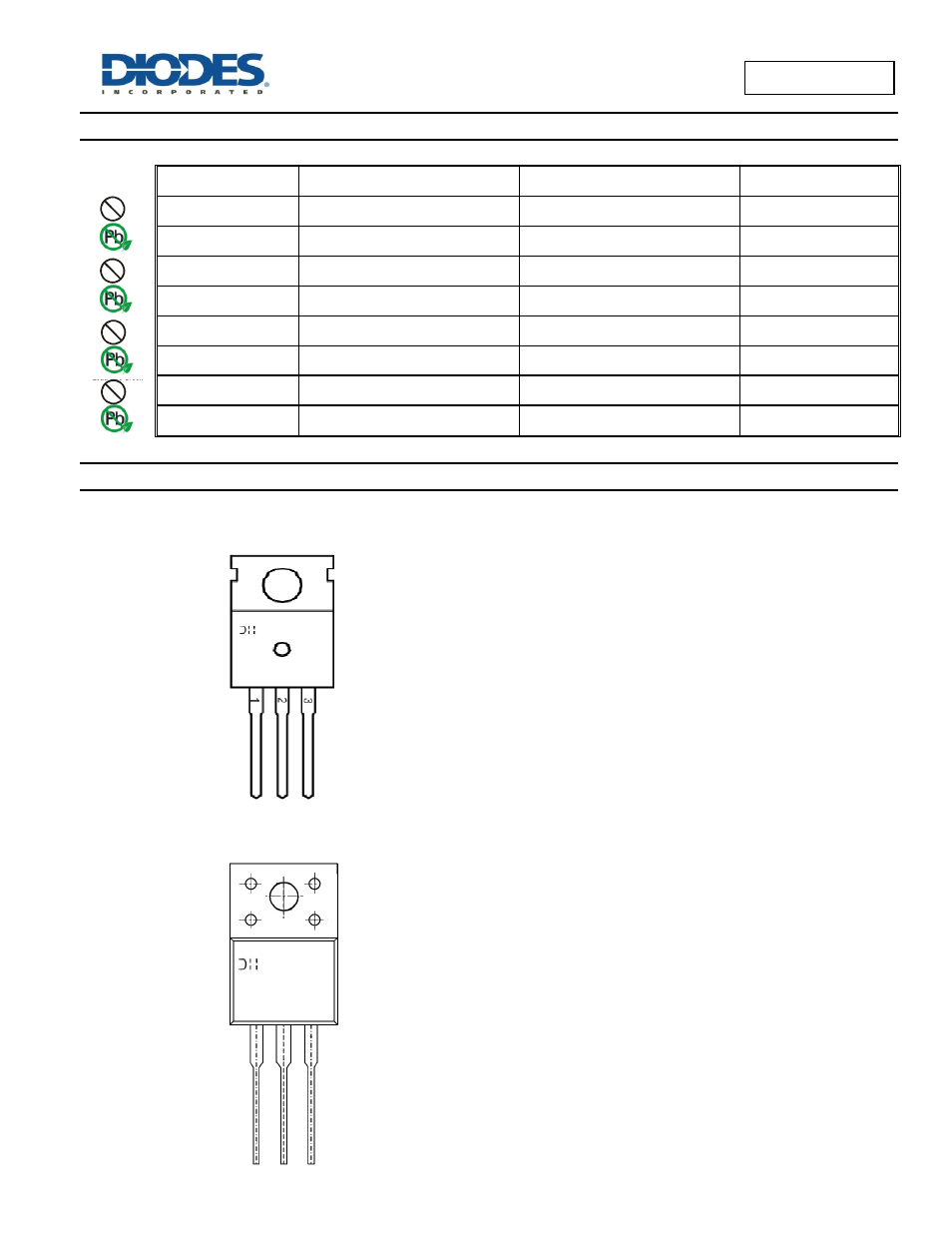

Marking Information
(1) TO-220-3 (2)
(Front View)
(2) TO-220F-3 (Option 1)
(Front View)
XXXXXXXX
XX-XX
YWWAXX
Green
Green
Green
Green
Pb
Pb
Pb
First and Second Lines: Logo and Marking ID
(See Ordering Information)
Third Line: Date Code
Y: Year
WW: Work Week of Molding
A: Assembly House Code
XX: 7th and 8th Digits of Batch Number
XXXXXXXX
XXX-XX
YWWAXX
First and Second Lines: Logo and Marking ID
(See Ordering Information)
Third Line: Date Code
Y: Year
WW: Work Week of Molding
A: Assembly House Code
XX: 7th and 8th Digits of Batch Number
Pb
