MBR20100C
HIGH VOLTAGE POWER SCHOTTKY RECTIFIER
Product Summary
V
RRM
(V)
I
O
(A)
V
F
(MAX)
(V)
@ +25°C
I
R
(MAX)
(mA)
@ +25°C
100V
2x10A
0.85
0.1
Description
High voltage dual Schottky rectifier suited for switch mode power
supplies and other power converters. This device is intended for use
in medium voltage operation, and particularly, in high frequency
circuits where low switching losses and low noise are required.
The MBR20100C is available in standard TO-220-3 (2), TO-220F-3
(Option 1), TO-252-2 (1) and TO-263-2 packages.
Applications
Power Supply Output Rectification
Power Management
Instrumentation
Features
Low Forward Voltage: 0.85V @ +25
o
C
High Surge Current Capability
+150
o
C Operating Junction Temperature
20A Total (10A Each Diode Leg)
Guard-Ring for Stress Protection
Pb-free Package
TO-220-3 (2), TO-220F-3 (Option 1), TO-252-2 (1) and TO-263-2
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Available in “Green” Packages: TO-220-3 (2), TO-220F-3 (Option
1), TO-252-2 (1) and TO-263-2
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen
and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: TO-220-3 (2), TO-220F-3 (Option 1), TO-252-2 (1) and TO-
263-2
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Terminals: Finish - Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: See Below
Weight
TO-220-3 (2), TO-220F-3 (Option 1) and TO-263-2
─ 1.9
Grams (Approximate)
TO-252-2 (1)
─ 0.31Grams (Approximate)

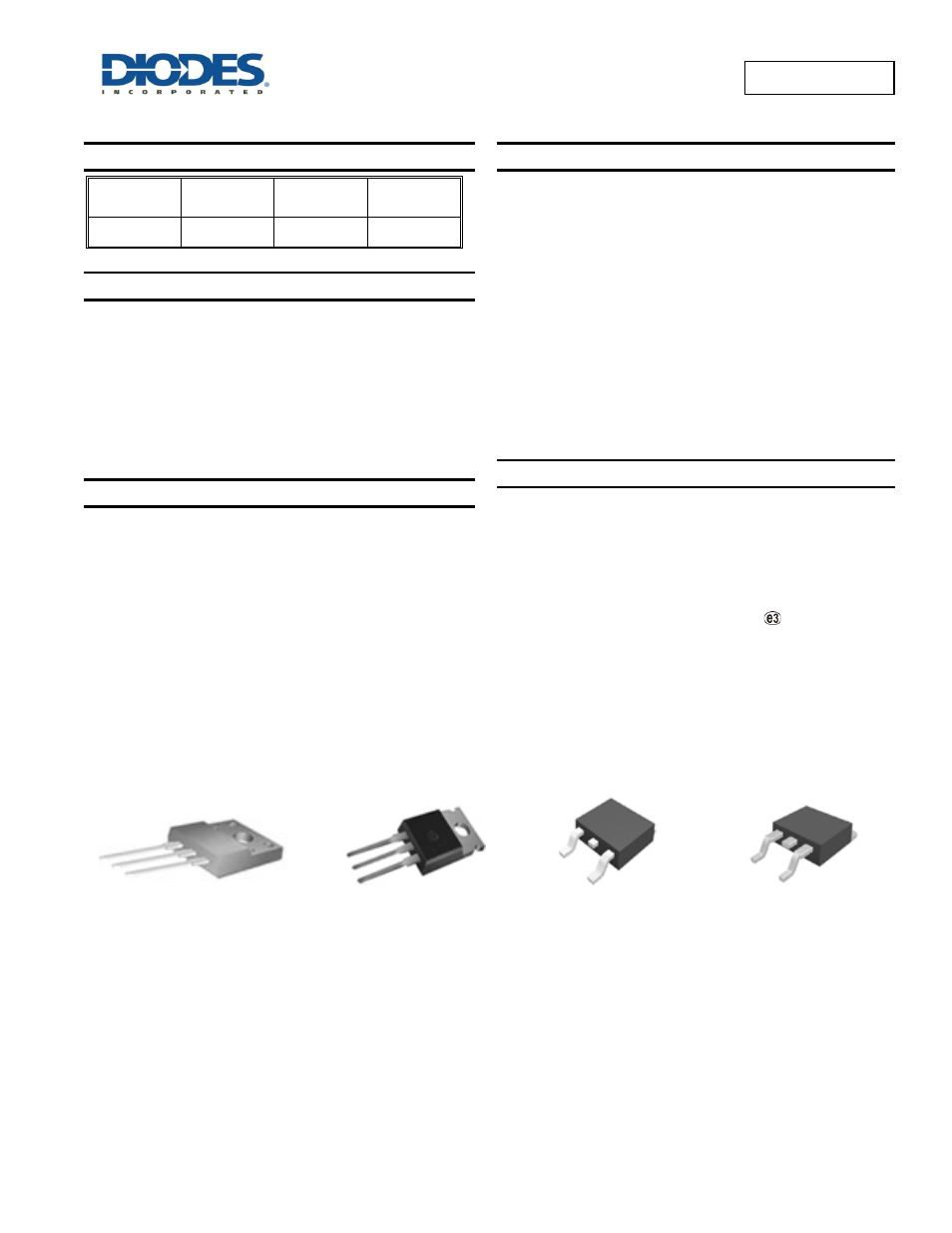

TO-220F-3 (Option 1) TO-220-3 (2) TO-252-2 (1) TO-263-2
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See
r more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-
free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
