MBR20100C
Document number: DS36950 Rev. 2 - 2
2 of 13
April 2014
© Diodes Incorporated
MBR20100C
Green
Green

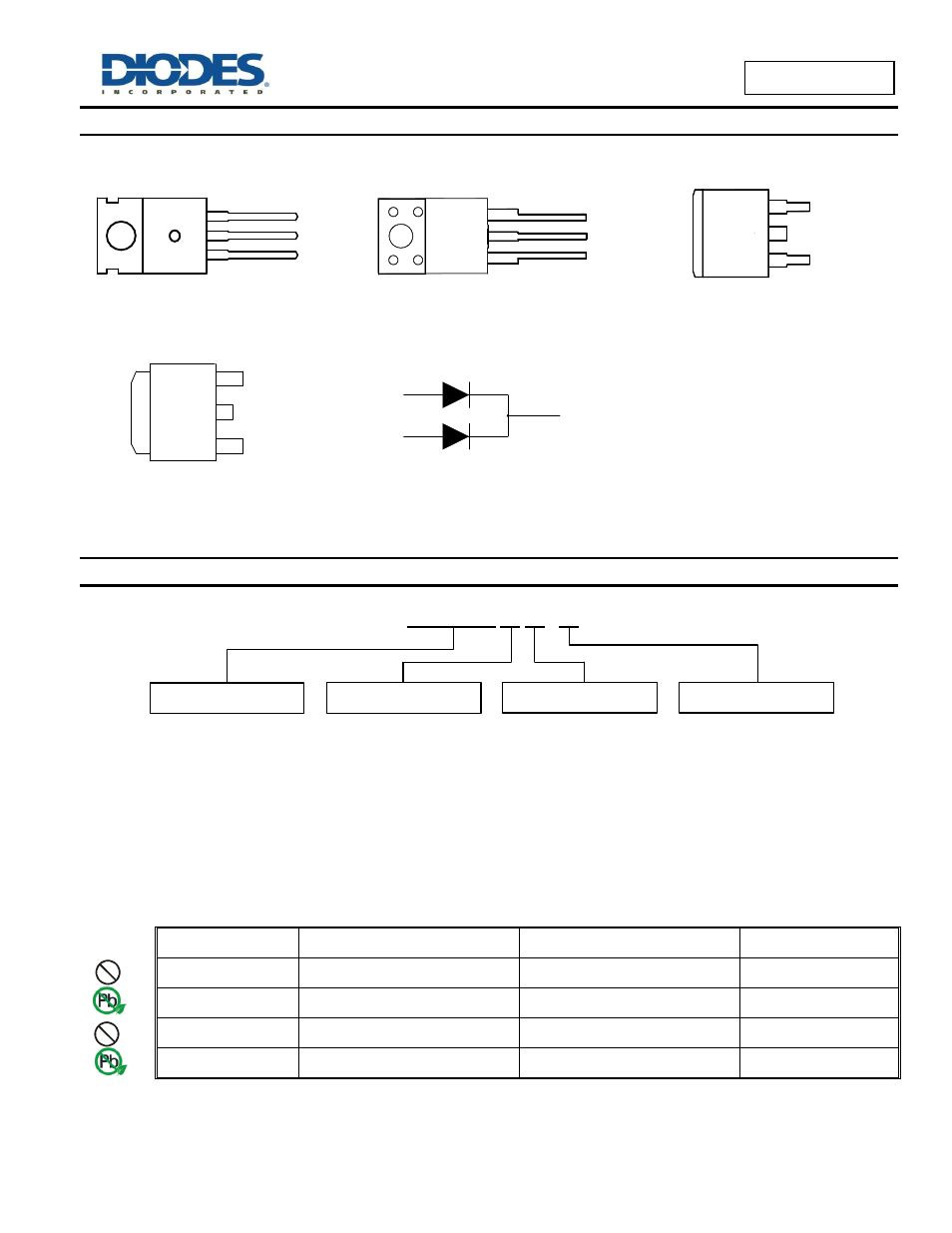

Pin Assignments
(Front View) (Front View) (Top View)
TO-220-3 (2) TO-220F-3 (Option 1) TO-263-2
(Top View)
TO-252-2 (1) Internal Structure of MBR20100C
Ordering Information
(Note 4)
MBR20100C XX XX - XX
Packing
Package
Product Name
Blank : Tube
T : TO-220-3 (2)
E1/G1
E1 : Lead Free
G1 : Green
TF : TO-220F-3
(Option 1)
D : TO-252-2 (1)
S2 : TO-263-2
TR : Tape & Reel
Notes: 4. For packaging details, go to our website at
5. Diodes IC's Pb-free products, as designated with "E1" suffix in the part number, are RoHS compliant. Not recommended for new design.
6. Products with "G1" suffix are available in green packages. Recommended MBR(F)20100CT-LJ for new design, MBR(F)20100CT-LJ can replace the
“MBR20100CT-G1 and MBR20100CTF-G1” products.
Package
Part Number
Marking ID
Packing
TO-220-3 (2)
MBR20100CT-E1 (Note 5)
MBR20100CT-E1
50 Pieces/Tube
TO-220-3 (2)
MBR20100CT-G1 (Note 6)
MBR20100CT-G1
50 Pieces/Tube
TO-220F-3 (Option 1)
MBR20100CTF-E1 (Note 5)
MBR20100CTF-E1
50 Pieces/Tube
TO-220F-3 (Option 1)
MBR20100CTF-G1 (Note 6)
MBR20100CTF-G1
50 Pieces/Tube
Pb
1
2
3
A1
K
A2
1
2
3
A1
K
A2
A1
A2
K
1
2
3
A2
K
A1
A1
A2
1
2
3
K
Pb
