MBR20100C

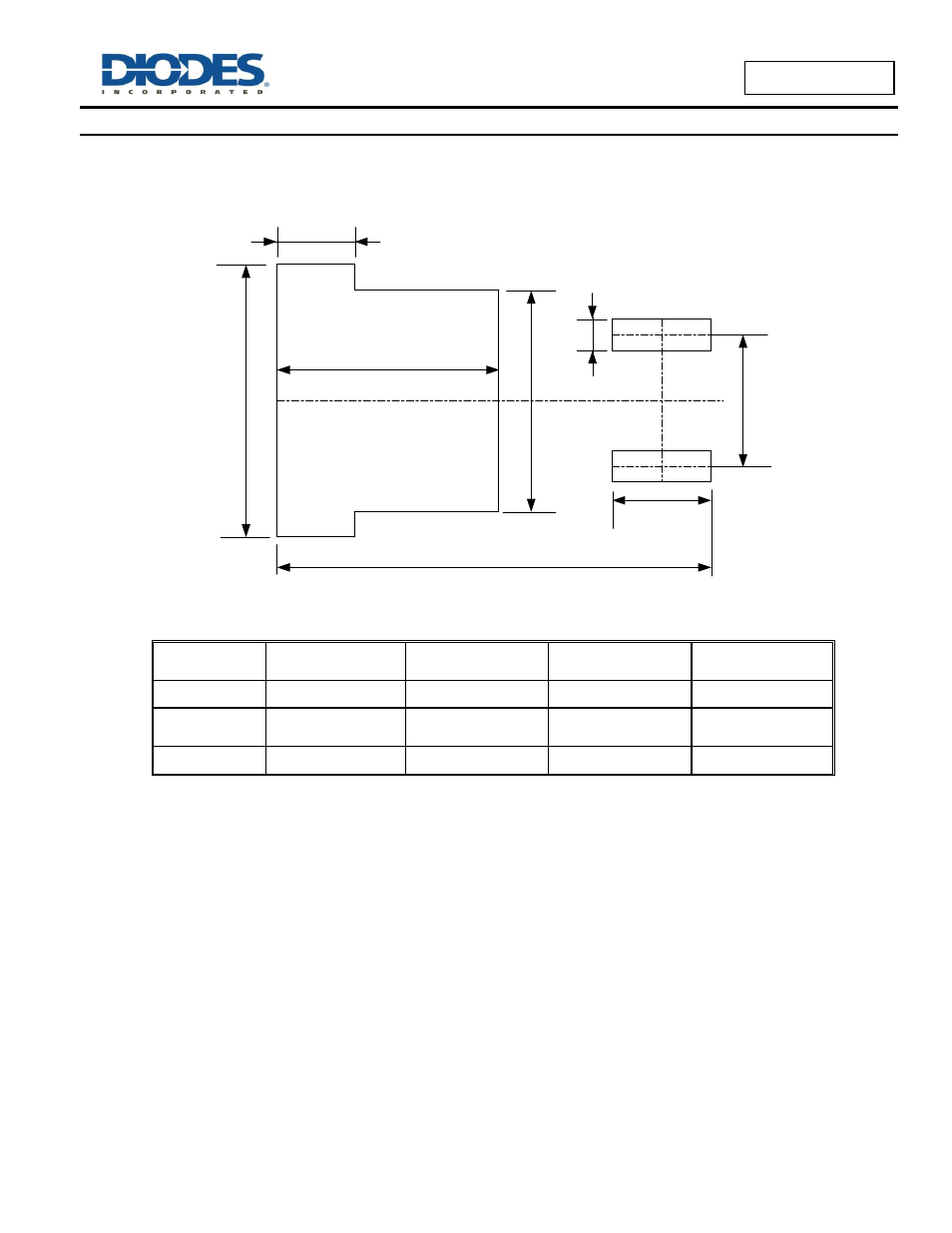

Mounting Pad Layout
(Cont.)
(2) Package Type: TO-263-2
Y3
Y2
X2
Z
X3
X1
E
Y1
Dimensions
Z
(mm)/(inch)
X1
(mm)/(inch)
X2
(mm)/(inch)
X3
(mm)/(inch)
Value 16.760/0.660 1.200/0.047 8.540/0.336 10.540/0.415
Dimensions
Y1
(mm)/(inch)
Y2
(mm)/(inch)
Y3
(mm)/(inch)
E
(mm)/(inch)
Value 3.830/0.151 8.560/0.337 3.000/0.118 5.080/0.200
