AH5792
SINGLE PHASE HALL EFFECT LATCH SMART
FAN MOTOR CONTROLLER
AH5792
Document number: DS314641 Rev. 6 - 2
7 of 10
July 2010
© Diodes Incorporated

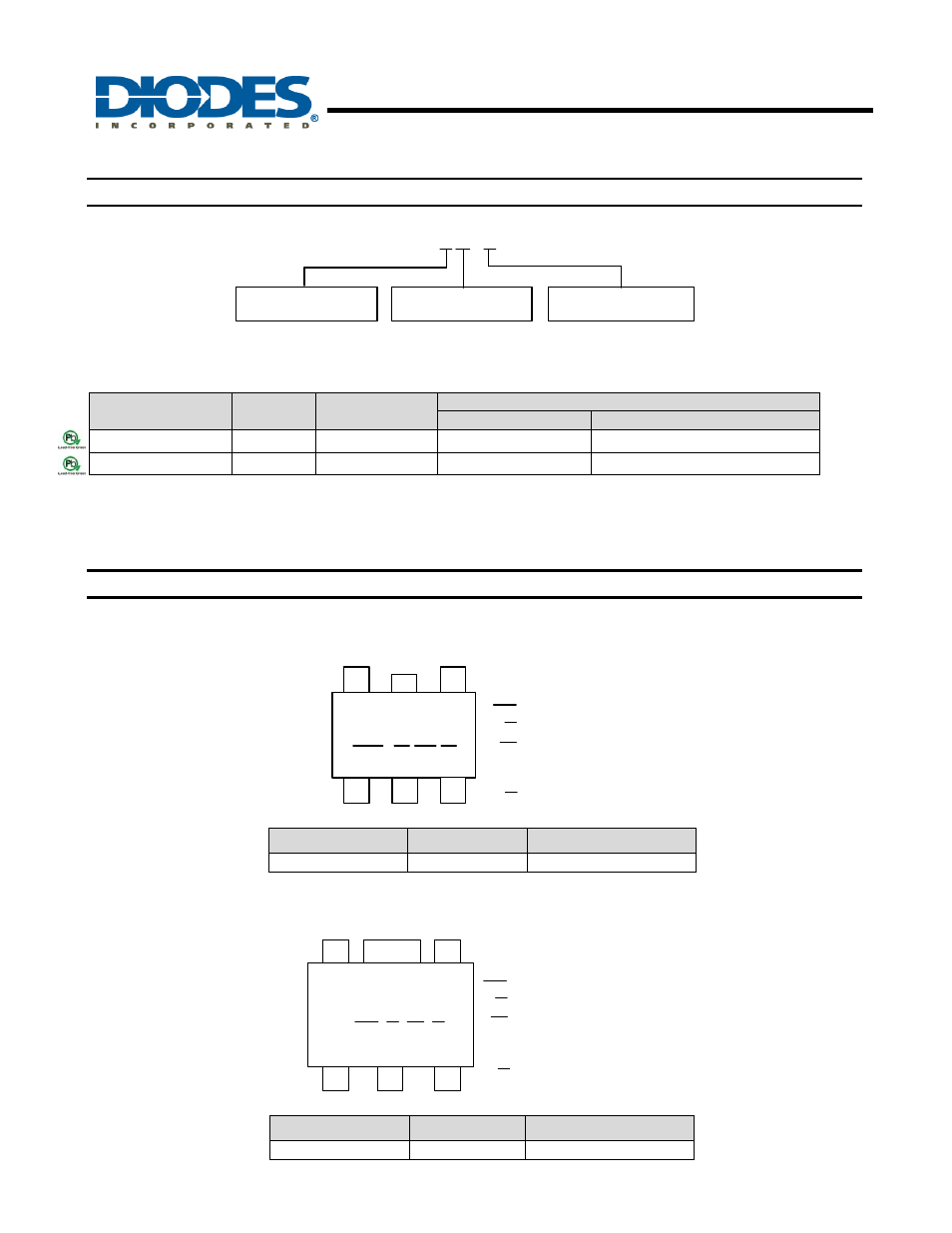

Ordering Information
AH 5792 - X G - X
Packing
Package
Green
Z : SOT553
G : Green
7/13 : Tape & Reel
Y : SOT89-5L
Device
Package
Code
Packaging
(Note 7 & 8)
7”/13” Tape and Reel
Quantity
Part Number Suffix
AH5792-ZG-7
Z
SOT553
3000/Tape & Reel
-7
AH5792-YG-13 Y
SOT89-5L
2500/Tape & Reel
-13
Notes: 7. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at
8. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at
Marking Information
(1) SOT553
( Top View )
Y : Year : 0~9
X : A~Z : Green
XX : Identification Code
W : Week : A~Z : 1~26 week;
a~z : 27~52 week;
z represents 52 and 53 week
XX Y W X
Part Number
Package
Identification Code
AH5792 SOT553
KE
(2) SOT89-5L
1
2
3
5
7
4
( Top View )
Y : Year : 0~9
W : Week : A~Z : 1~26 week;
X : Internal code
A~Z : Green
a~z : 27~52 week;
z represents 52 and 53 week
XX : Identification code
XX Y W X
Part Number
Package
Identification Code
AH5792 SOT89-5L
KF
