4/6 CHANNEL CHARGE PUMP CURRENT SINK FOR LED DRIVER AP3606/AP3607
Jan. 2013 Rev. 1. 5 BCD Semiconductor Manufacturing Limited
11
Typical Performance Characteristics (Continued)
T
A
=25ºC, C
IN
=C
1
=C
2
=C
OUT
=1 μ F, V
F
=3.2V, unless otherwise noted.

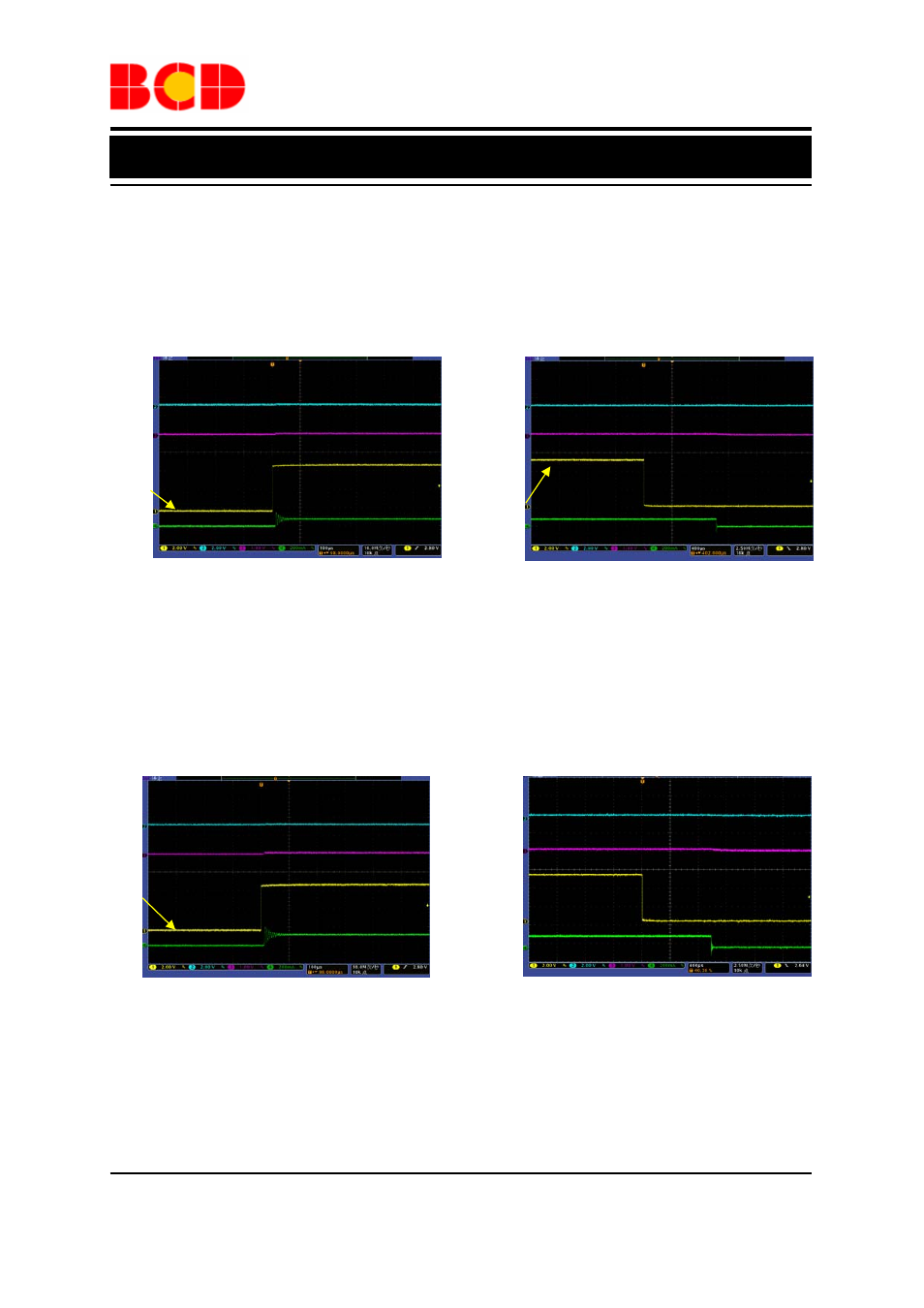

Figure 20. 1x Mode Turn on Characteristic Figure 21. 1x Mode Turn off Characteristic
(AP3606) (AP3606)
Figure 22. 1x Mode Turn on Characteristic Figure 23. 1x Mode Turn off Characteristic
(AP3607) (AP3607)
V
C1+
2V/div
V
OUT
1V/div
V
EN
2V/div
I
IN
0.2A/div
V
C1+
2V/div
V
OUT
1V/div
V
EN
2V/div
I
IN
0.2A/div
Time (100 μs/div) Time (400 μs/div)
V
C1+
2V/div
V
OUT
1V/div
V
EN
2V/div
I
IN
0.2A/div
V
C1+
2V/div
V
OUT
1V/div
V
EN
2V/div
I
IN
0.2A/div
Time (100 μs/div) Time (400 μs/div)
