AP8800A
Application Information
(cont.) (@T
A
= +25°C, V
IN
= 12V, unless otherwise specified.)

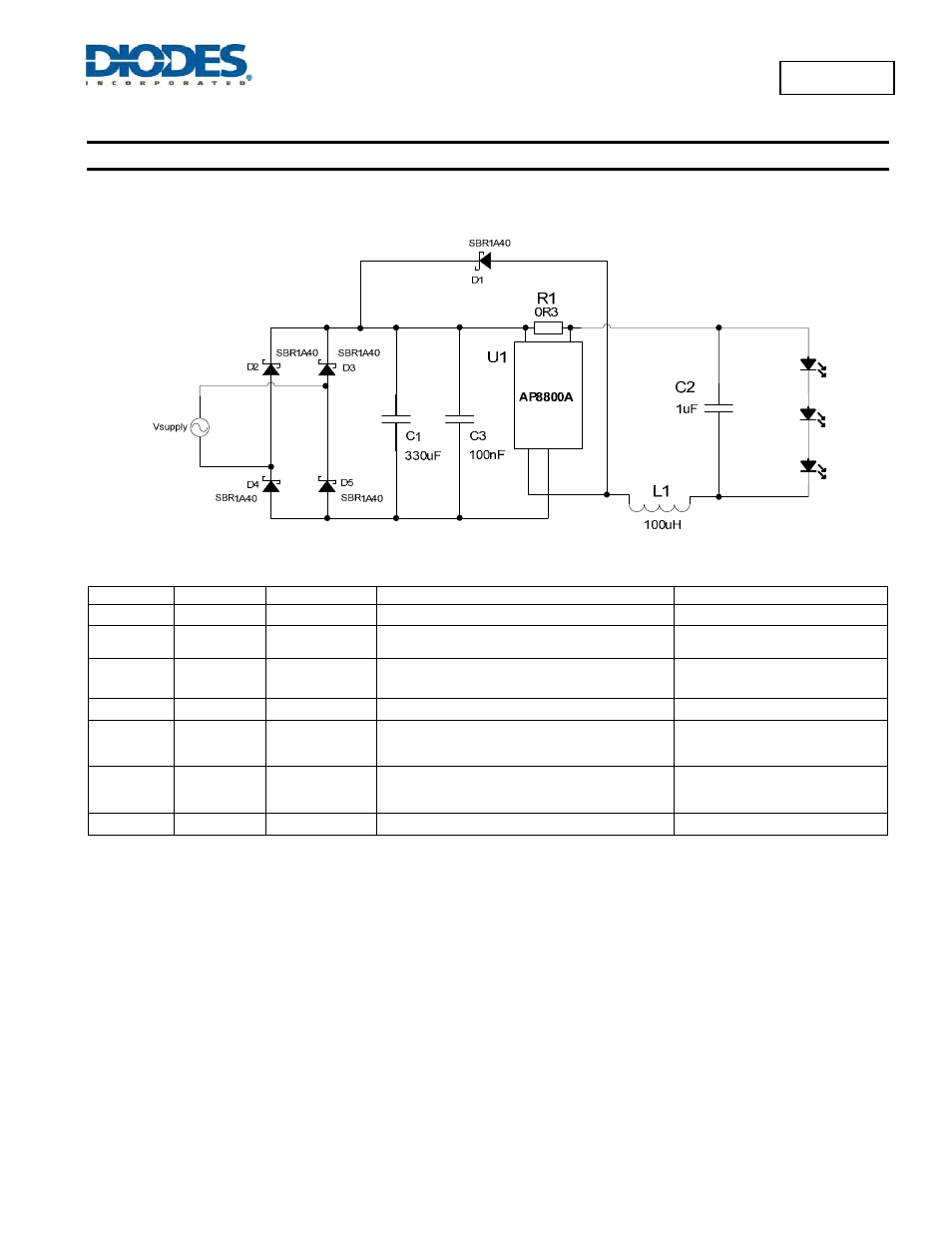

Application Example
The typical application for the AP8800A is the MR16 application driving 1W rated LEDs from a 12V ac supply.
SW GND
SE
T
VIN
CT
RL
AP8800A Component List
Quantity PCB Ident Value Description Suggested Source
1 U1 AP8800A LED Driver IC Diodes Inc.
1
D1, D2, D3,
D4, D5
SBR1A40 Input bridge & freewheeling diode Diodes Inc.
1 R1 0R15
Resistor, 0805, +/-1% <+/-300ppm
KOA SR732ATTDR150F
Kemet
1 C1 330µF 20V Electrolytic capacitor Kemet
1 C2 1µF > = 25V
X7R 1206 Generic
Kemet C1206105K5RAC7800 (50v)
NIC NMC1206X7R105K50F (50v)
Kemet NIC
Components
1 C3 100nF > = 25V
X7R 0805 Generic Kemet
C0805C104K5RAC (50v)
NIC NMC0805X7R104K50TRPF (50v)
Kemet NIC
Components
1 L1 100µH LPS6235 - series Coilcraft
