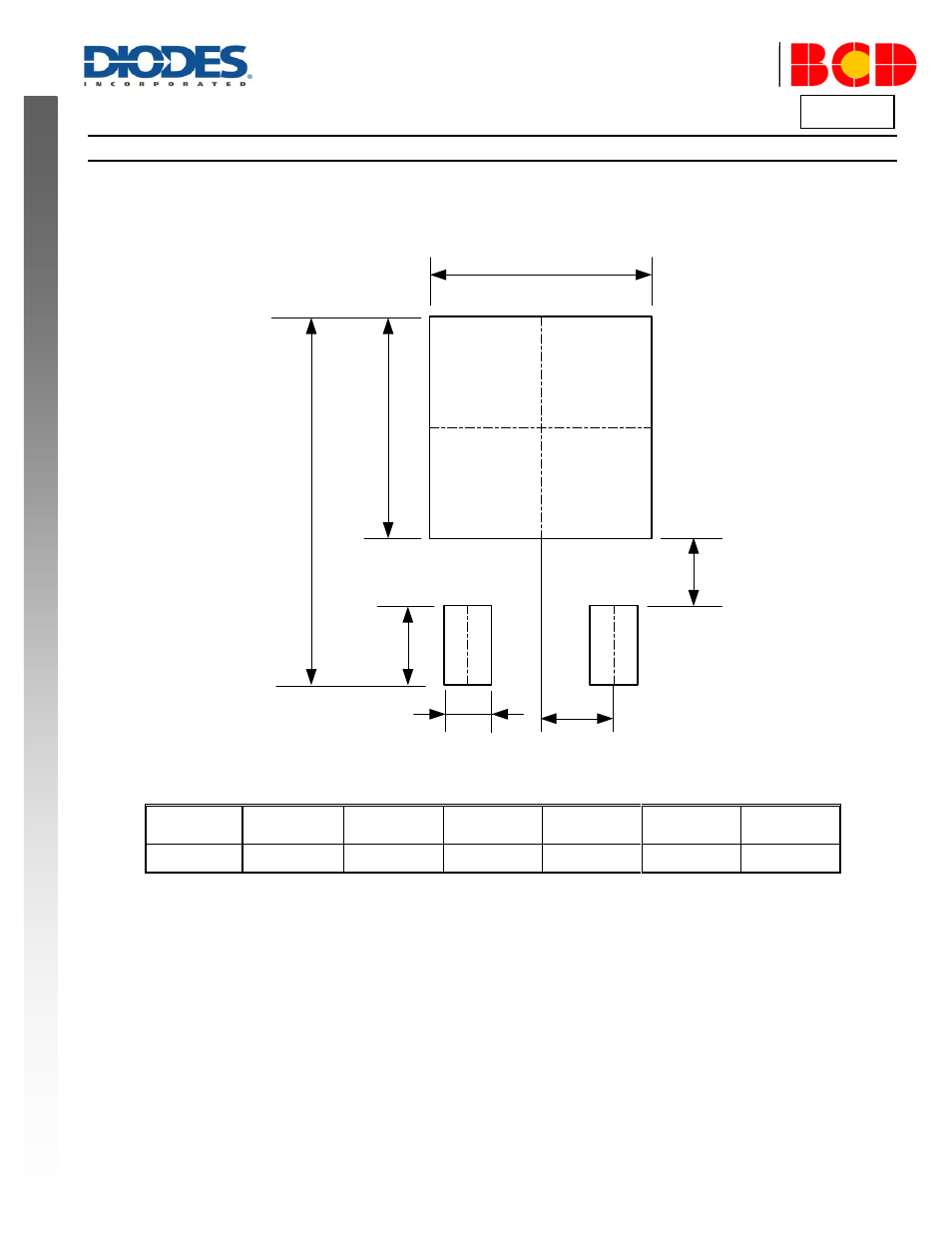

Suggested Pad Layout
(Cont.)
(2) Package Type: TO252-2 (5)
E1 X1
Y2
Y1
Z
X2
G
Dimensions
Z
(mm)/(inch)
X1
(mm)/(inch)
X2=Y2
(mm)/(inch)
Y1
(mm)/(inch)
G
(mm)/(inch)
E1
(mm)/(inch)
Value 11.600/0.457 1.500/0.059 7.000/0.276 2.500/0.098 2.100/0.083 2.300/0.091
