3A LOW DROPOUT LINEAR REGULATOR
Description
The AZ2085 series is low dropout positive voltage regulators with a
maximum dropout of 1.5V at 3A of load current.
The device features on-chip thermal shutdown. It also includes a
bandgap reference and a current limiting circuit.
The AZ2085 is available in adjustable version. The adjustable version
can set the output voltage with two external resistors.
The AZ2085 series is available in standard packages of TO252-2 (3)
and TO252-2 (5).
Applications
High Efficiency Linear Regulators
Battery Charger
Digital Video/Camcorder
Post Regulation for Switching Supplies
Microprocessor Supply
Mother Board Power Supplies
DVD-video Player
Telecom Equipment
Set Top Boxes and Web Boxes Modules' Supply
Features
Low Dropout Voltage: Typical 1.2V at 3A
Current Limiting and Thermal Protection
Output Current: 3A
Current Limit: 4.5A
Operating Junction Temperature: 0 to +125°C
Line Regulation: 0.015% (Typ)
Load Regulation: 0.1% (Typ)
Adjust Pin Current: 6
μA (Typ)
Minimum Load Current: 0.3mA (Typ)
Compatible with Low ESR Ceramic Capacitor
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Seer more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-
free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.

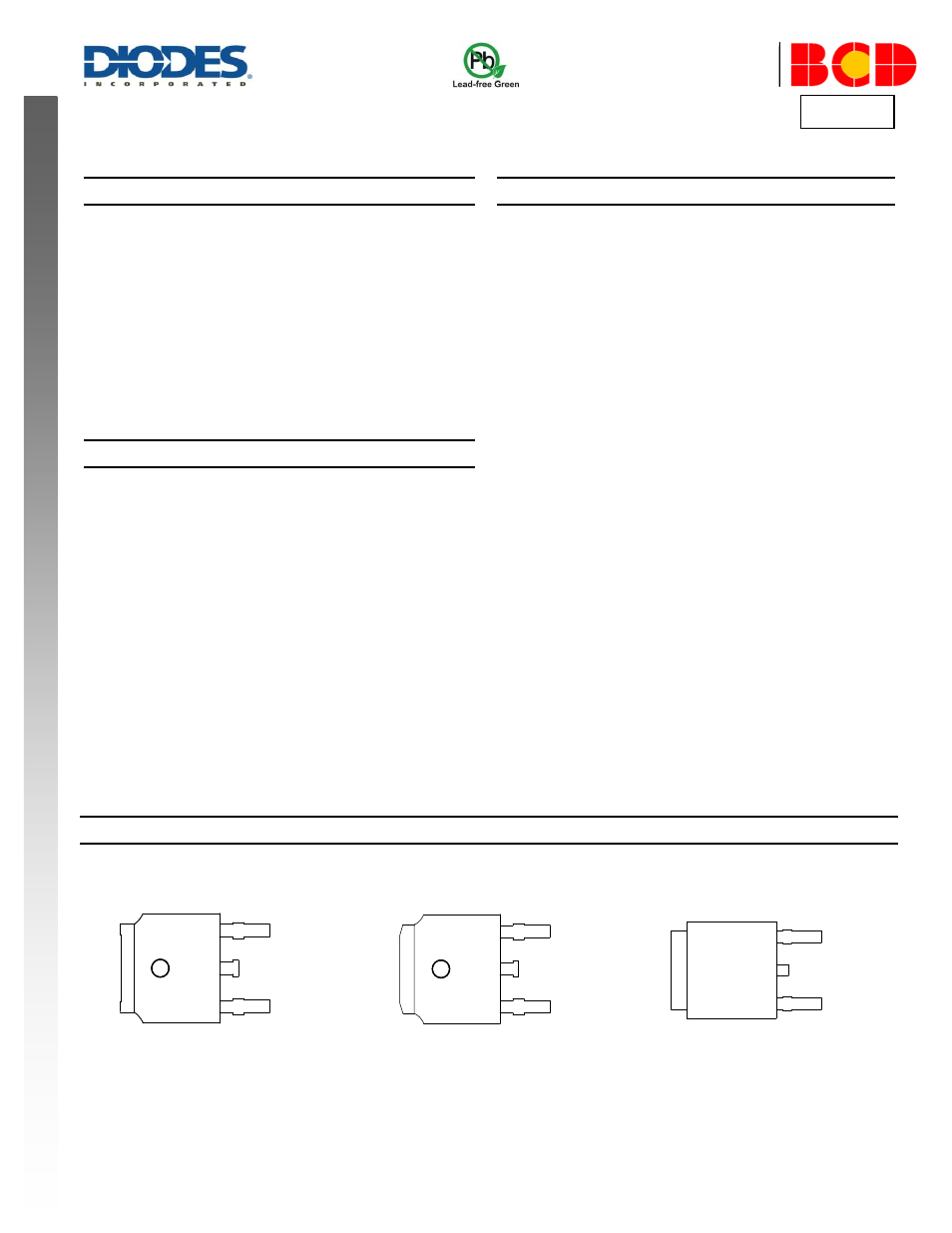

Pin Assignments
(Top View) (Top View) (Top View)
TO252-2 (3) Option 1 TO252-2 (3) Option 2
TO252-2 (5)
1
2
3
INPUT
OUTPUT
ADJ/GND
1
2
3
INPUT
OUTPUT
ADJ/GND
1
2
3
INPUT
OUTPUT
ADJ/GND
