AP7365
600mA, LOW QUIESCENT CURRENT, FAST TRANSIENT
LOW DROPOUT LINEAR REGULATOR
AP7365
Document number: DS32260 Rev. 3 - 2
3 of 19
www.diodes.com
May 2012
© Diodes Incorporated
NEW PROD
UC
T

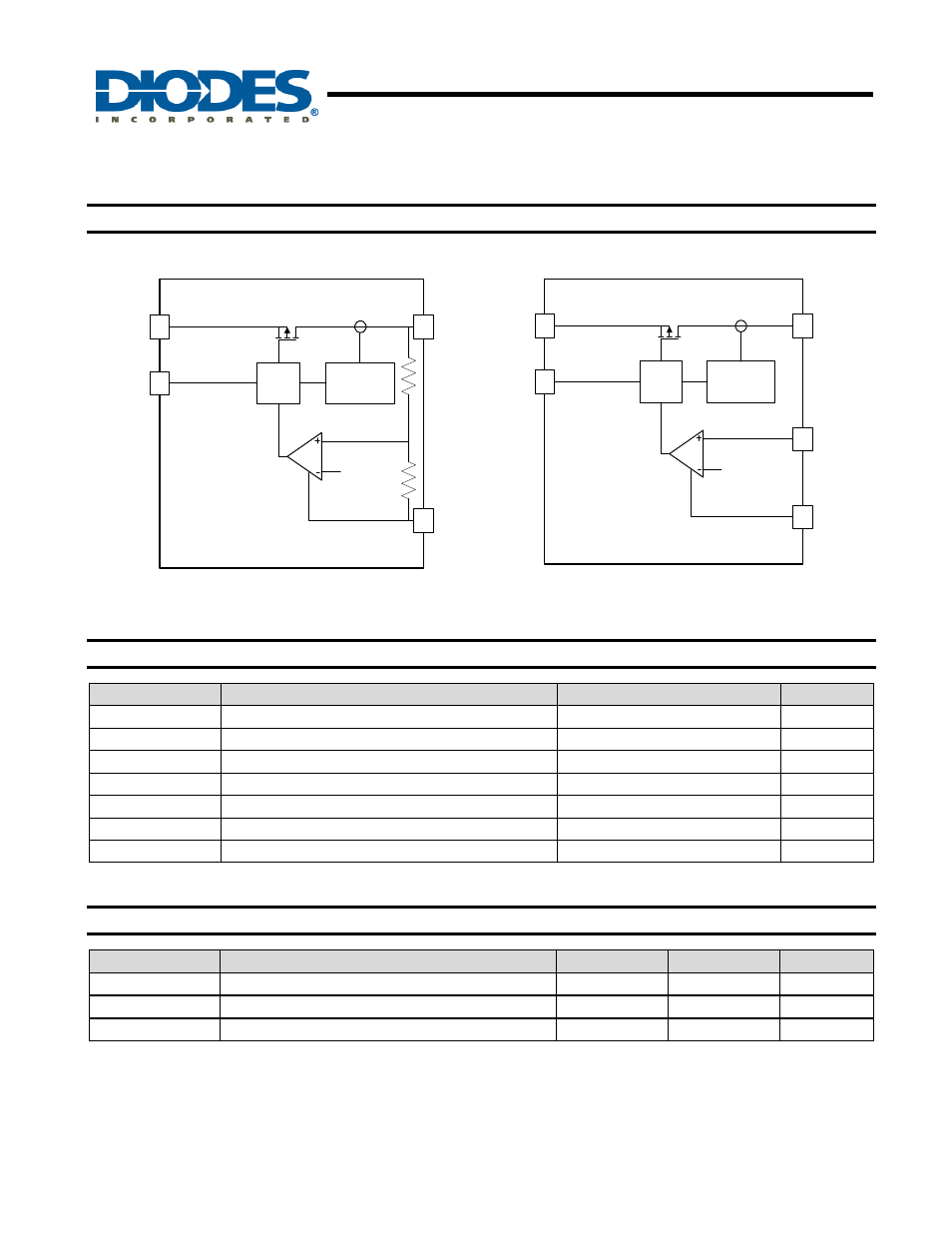

Functional Block Diagram
IN
EN
GND
OUT
Gate
Driver
0.8V
Current Limit
and Thermal
Shutdown
Fixed Version
R
R
IN
EN
GND
ADJ
OUT
Gate
Driver
0.8V
Current Limit
and Thermal
Shutdown
Adjustable Version
Absolute Maximum Ratings
Symbol Parameter Ratings Unit
ESD HBM Human Body Model ESD Protection 2000 V
ESD MM Machine Model ESD Protection 200 V
V
IN
Input Voltage 6.5 V
OUT, EN Voltage V
IN
+0.3 V
Continuous Load Current per Channel Internal Limited
T
ST
Storage Temperature Range -65 to +150 °C
T
J
Maximum Junction Temperature +150 °C
Recommended Operating Conditions
Symbol Parameter Min Max Unit
V
IN
Input voltage 2 6 V
I
OUT
Output Current (Note 4) 0 600 mA
T
A
Operating Ambient Temperature -40 +85 °C
Note: 4. The device maintains a stable, regulated output voltage without a load current.
