AP7365
600mA, LOW QUIESCENT CURRENT, FAST TRANSIENT
LOW DROPOUT LINEAR REGULATOR
AP7365
Document number: DS32260 Rev. 3 - 2
2 of 19
www.diodes.com
May 2012
© Diodes Incorporated
NEW PROD
UC
T

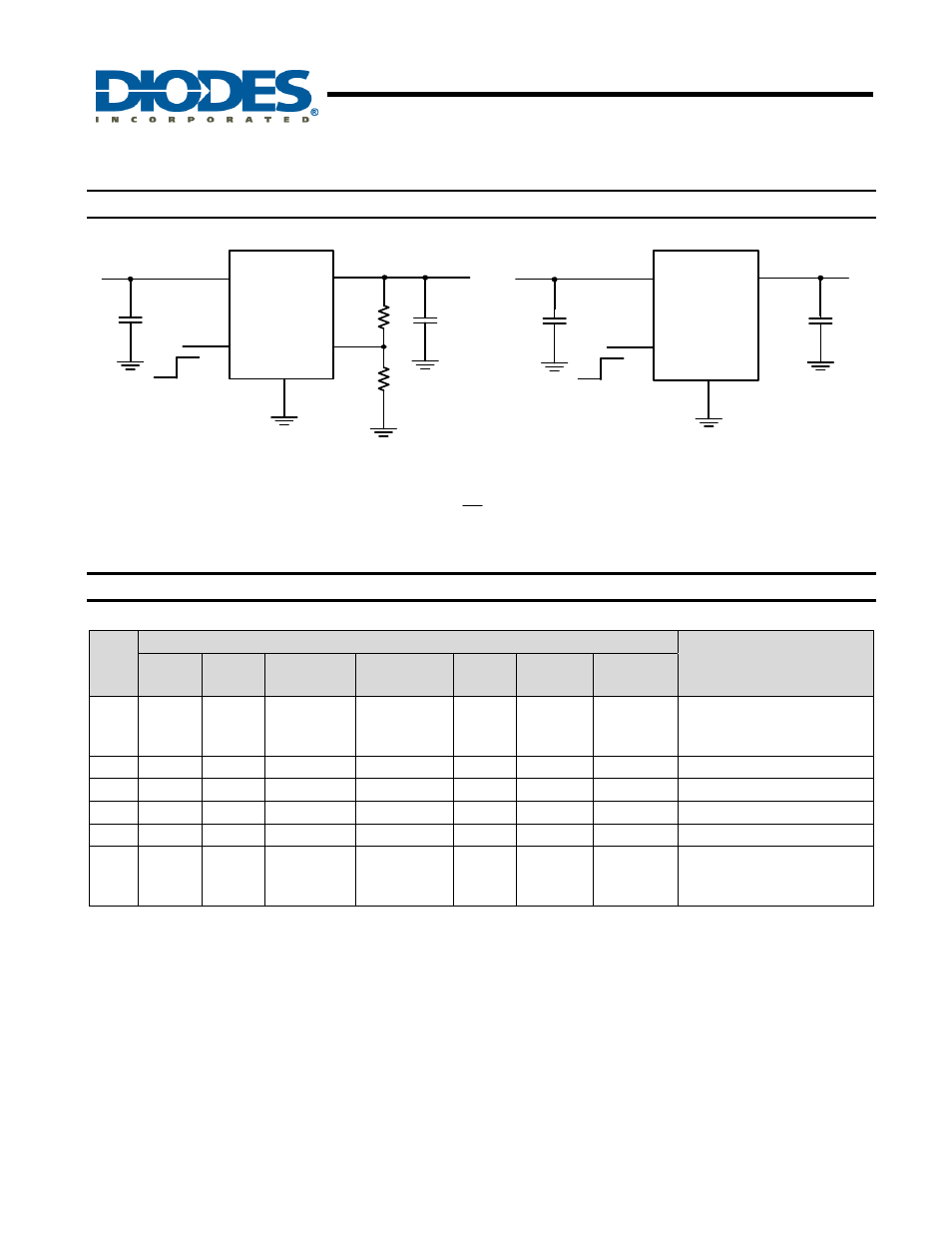

Typical Application Circuit
1uF
IN
GND
EN
OUT
Enable
ADJ
R2
R1
1uF
V
IN
V
OUT
AP7365
Adjustable Output
1uF
IN
GND
EN
OUT
Enable
1uF
V
IN
V
OUT
AP7365
Fixed Output
Ω ≤
⎟⎟
⎠
⎞
⎜⎜
⎝
⎛
+ =
K 80 R where
R
R
1 V V
2
2
1
REF OUT
Pin Descriptions
Pin
Name
Pin Number
Functions SOT25
(Fixed)
SOT25
(ADJ)
U-DFN2020-6
(Fixed)
U-DFN2020-6
(ADJ)
SOT89-3
SOT223
SOT89-3R
SOT223R
SOT223V
IN 1 1 3 3 3 2 3
Voltage Input Pin. Bypass to
ground through at least 1µF
MLCC capacitor
GND 2 2 2 2 2 1 1 Ground
EN 3 3 1 1 - - - Enable input, active high
ADJ - 4 - 6 - - - Output Feedback Pin
NC 4 - 5, 6 5 - - - No connection
OUT 5 5 4 4 1 3 2
Voltage Output Pin. Bypass to
ground through 1µF MLCC
capacitor.
