AP7340
Document number: DS35282 Rev. 3 - 2
14 of 15
www.diodes.com
February 2014
© Diodes Incorporated
AP7340

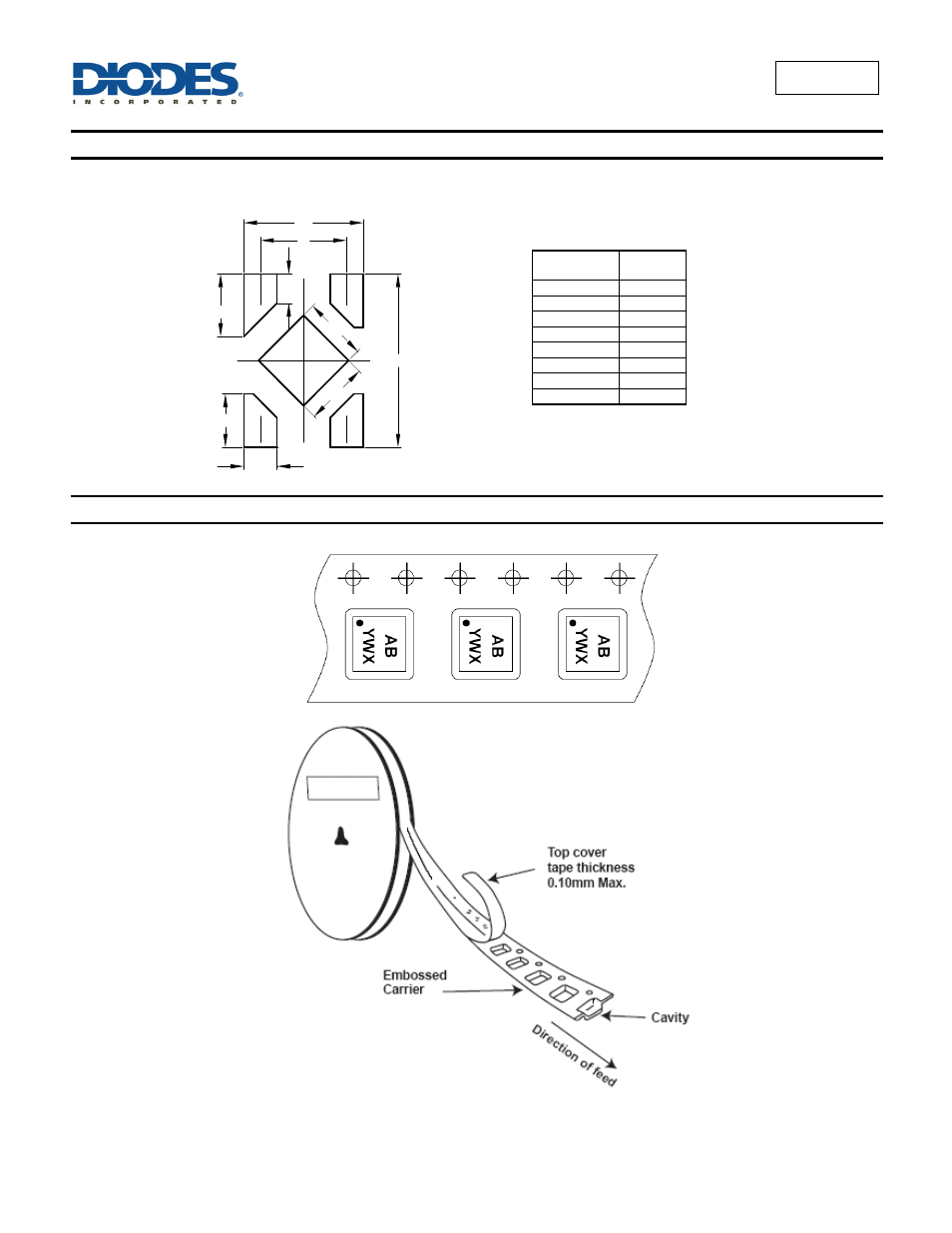

Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
Package Type: X2-DFN1010-4
Tape Orientation
For X2-DFN1010-4
Note: 12. The taping orientation of the other package type can be found on our website at http://www.diodes.com/datasheets/ap02007.pdf
Dimensions
Value
(in mm)
C 0.650
X 0.250
X1 0.480
X2 0.900
Y 0.400
Y1 0.470
Y2 0.220
Y3 0.480
C
X 2
Y 1
Y 4
Y 3
X 1
X
Y
Y 2
