AP7340
Marking Information
(cont.)
X2-DFN1010-4
Y : Year : 0~9
(Top View)
X : A~Z : Internal code
Y W X
XX
XX : Identification Code
W : Week : A~Z : 1~26 week;
a~z : 27~52 week; z represents
52 and 53 week
AP7340D-15FS4-7 X2-DFN1010-4 DH
AP7340D-18FS4-7 X2-DFN1010-4 DJ
AP7340D-185FS4-7 X2-DFN1010-4 DV
AP7340D-22FS4-7 X2-DFN1010-4 D8
AP7340D-23FS4-7 X2-DFN1010-4 D9
AP7340D-25FS4-7 X2-DFN1010-4 DK
AP7340D-26FS4-7 X2-DFN1010-4 S3
AP7340D-28FS4-7 X2-DFN1010-4 DM
AP7340D-285FS4-7 X2-DFN1010-4 DW
AP7340D-30FS4-7 X2-DFN1010-4 DX
AP7340D-31FS4-7 X2-DFN1010-4 DY
AP7340D-32FS4-7 X2-DFN1010-4 DZ
AP7340D-33FS4-7 X2-DFN1010-4 DN
AP7340D-36FS4-7 X2-DFN1010-4 ED

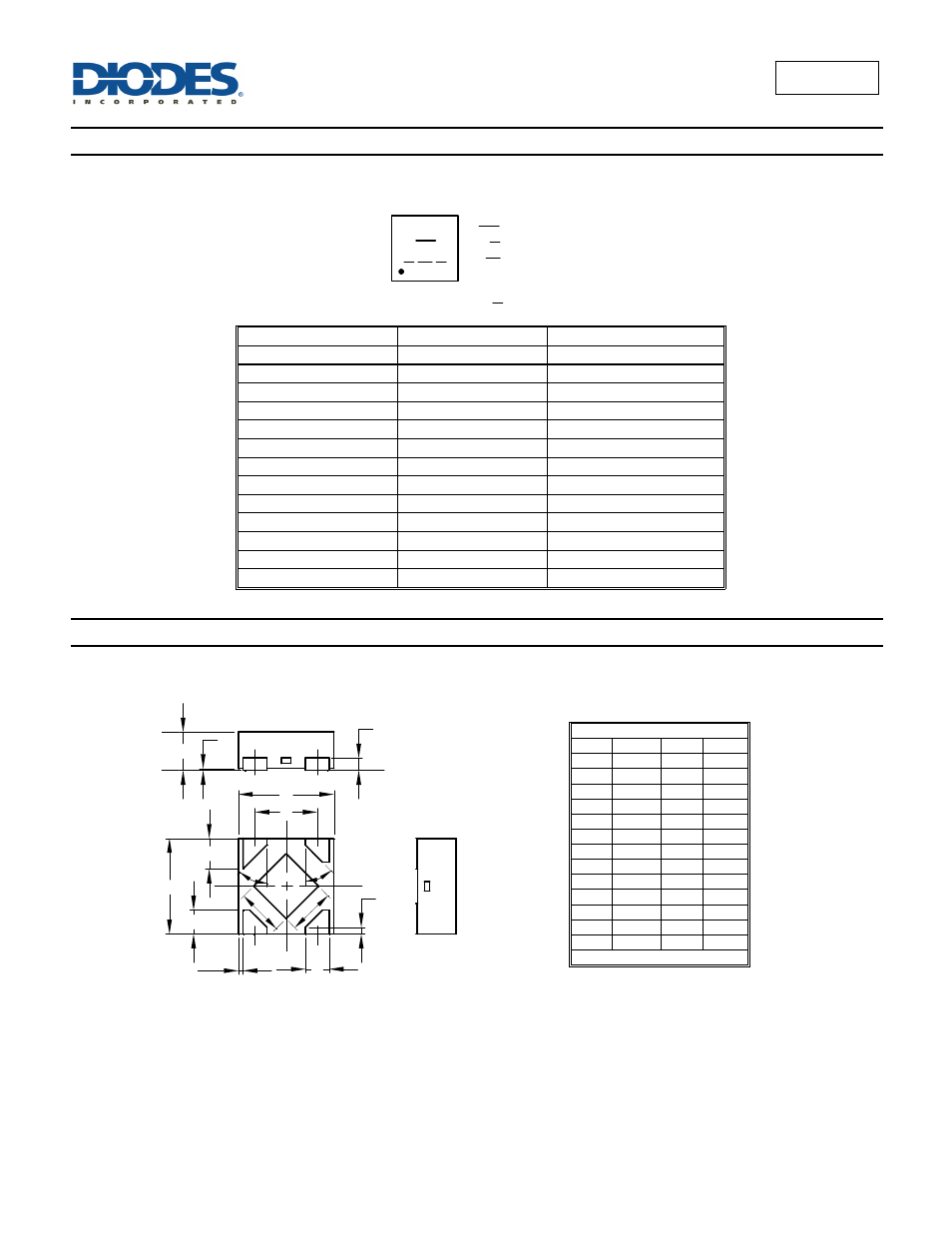

Package Outline Dimensions
(All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Package Type: X2-DFN1010-4
X2-DFN1010-4
Dim Min Max Typ
A - 0.40 0.39
A1 0.00 0.05 0.02
A3 - - 0.13
b 0.20 0.30 0.25
D 0.95 1.05 1.00
D2 0.43 0.53 0.48
E 0.95 1.05 1.00
E2 0.43 0.53 0.48
e - - 0.65
L 0.20 0.30 0.25
L1 0.27 0.37 0.32
L2 0.02 0.12 0.07
Z - - 0.050
All Dimensions in mm
A
A 1
A 3
D
E
Z b
e
L
L 2
E 2
D2
C 0 .
2 5
C0
.1
8︵
3x︶
L 1
S e a t i n g P l a n e
