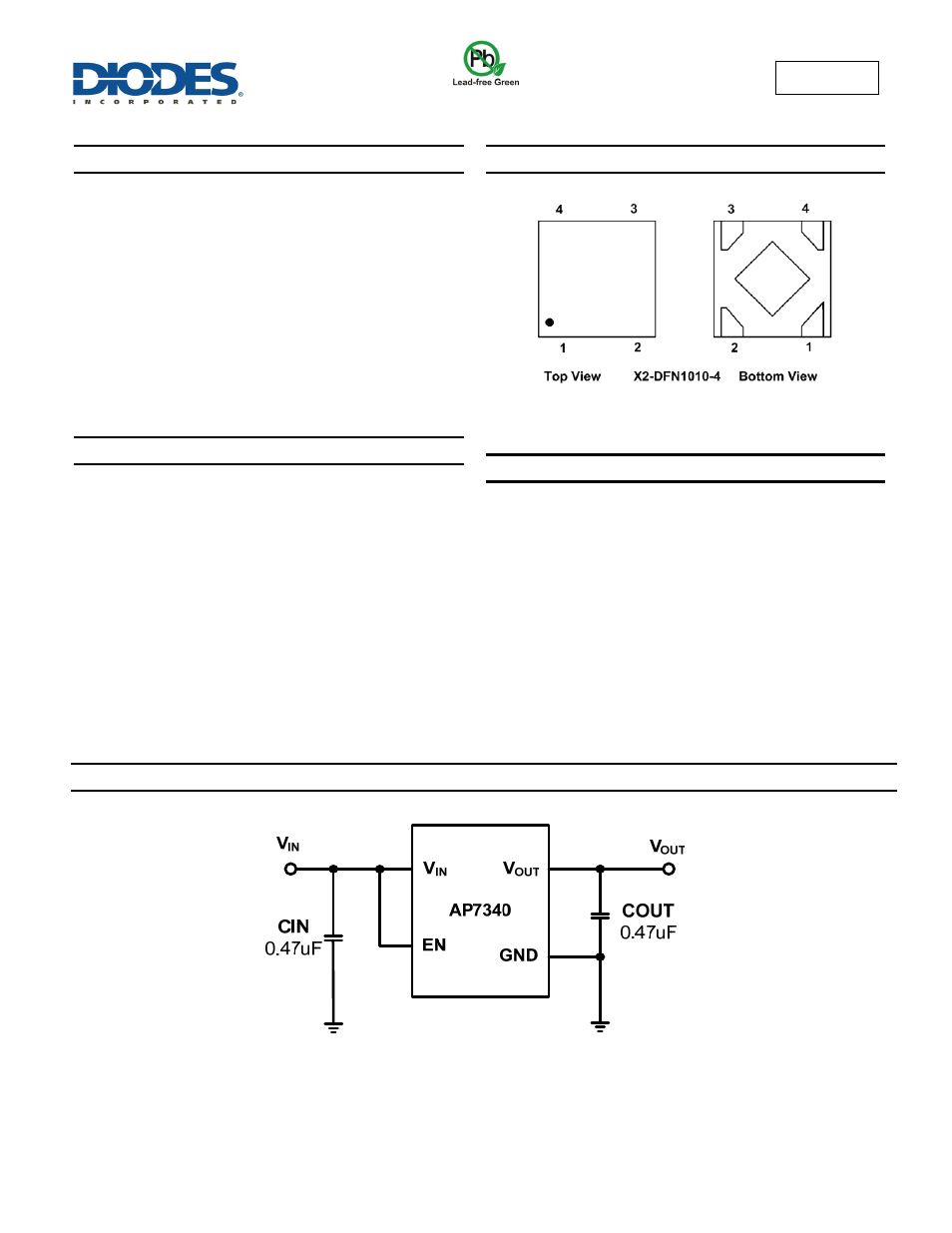

background image

AP7340

Document number: DS35282 Rev. 3 - 2

1 of 15

www.diodes.com

February 2014

© Diodes Incorporated

AP7340

150mA HIGH PSRR LOW NOISE LDO WITH ENABLE


Description

The AP7340 is low dropout regulator with high output voltage
accuracy, low R

DSON

, high PSRR, low output noise and low quiescent

current. This regulator is based on a CMOS process.

The AP7340 includes a voltage reference, error amplifier, current limit
circuit and an enable input to turn it on and off. With the integrated
resistor network fixed output voltage versions can be delivered.

With its low power consumption and line and load transient response
the AP7340 is well suited for low power handheld communication
equipment.

The AP7340 is packaged in a X2-DFN1010-4 package and allows for
smallest footprint and dense PCB layout.

Features

● Low

V

IN

and wide V

IN

range: 1.7V to 5.25V

● Guarantee

Output

Current,150mA

V

OUT

accuracy ±1%

Ripple Rejection 75dB at 1kHz

Low output noise, 60uVrms from 10Hz to 100kHz

Quiescent current as low as 35µA

V

OUT

fixed 1.1V to 3.6V

Totally Lead-Free & and Fully RoHS Compliant (Note 1)

Halogen and Antimony Free, Green Device (Note 2)


Pin Assignments

PIN1 – V

OUT

, PIN2 – GND, PIN3 – EN, PIN4 – V

IN

Applications

• Smart

phone/PAD

• RF

supply

• Cameras
• Portable

Video

Portable Media player

• Wireless

adapter

• Wireless

communication

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free,"Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.



Typical Applications Circuit

Figure 1 Typical Application Circuit
