AP7115
150mA LOW DROPOUT LINEAR REGULATOR WITH
SHUTDOWN
AP7115 Rev. 10 3 of 11 MAY 2009
www.diodes.com © Diodes Incorporated

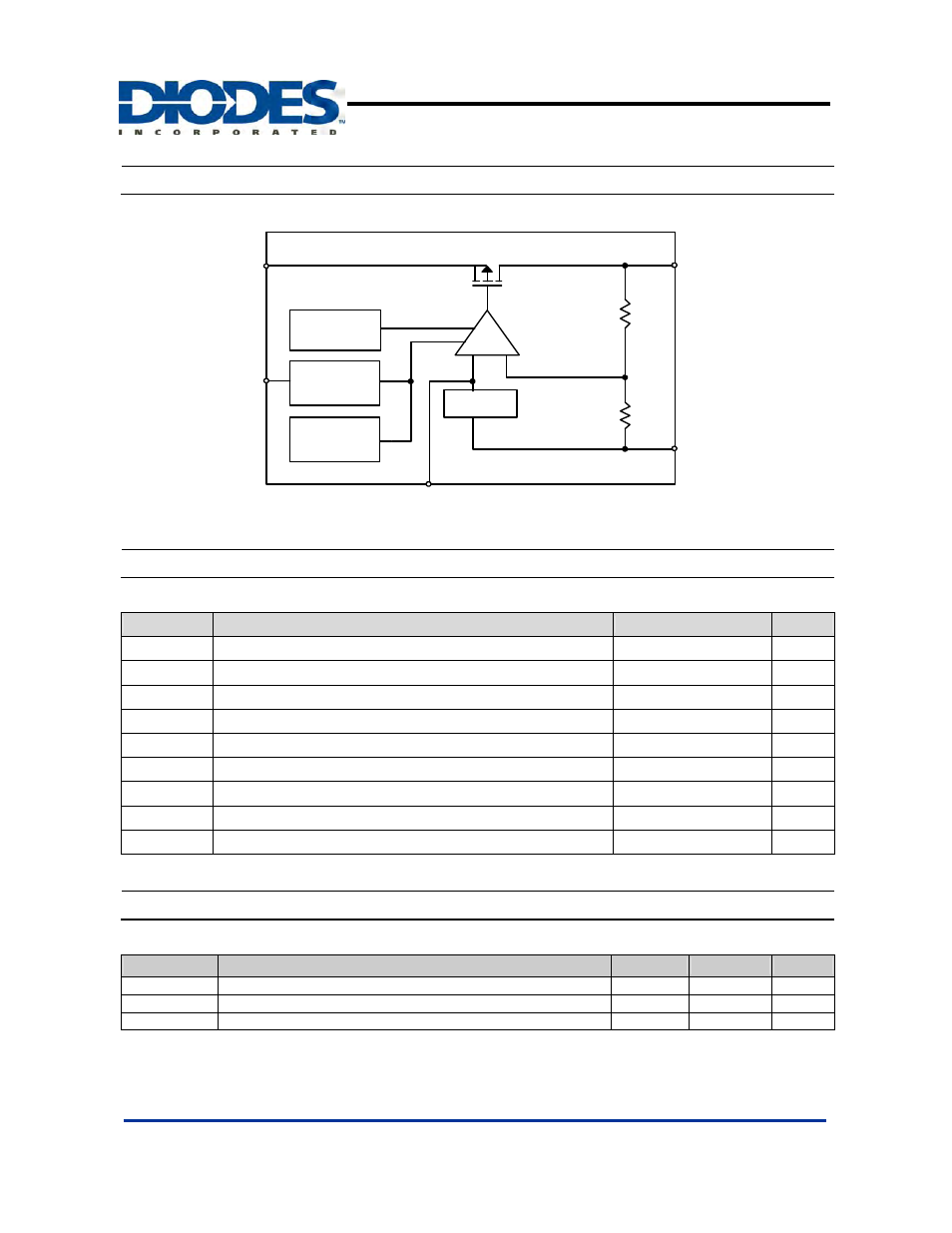

Block Diagram
Current
Limit
Thermal
Shutdown
- +
IN OUT
GND
0.8V
Error
Amp
Bandgap
Enable
BP
EN
Absolute Maximum Ratings
Symbol Parameter Rating Unit
ESD HBM Human Body Model ESD Protection
3.5
KV
ESD MM Machine Model ESD Protection 400 V
V
IN
Input Voltage -0.3~5.5 V
V
CE
CE Pin Voltage -0.3~5.5 V
V
OUT
Output Voltage -0.3~V
in
+0.3 V
V
BP
Band Gap Bypass Pin Voltage -0.3~5.5 V
P
D
Power Dissipation 500 mW
T
J
Operating Junction Temperature Range -40 to +125 o
C
T
ST
Storage Temperature Range -65 to +150 o
C
Recommended Operating Conditions
Symbol Parameter Min Max Unit
V
IN
Input Voltage 2.5 5.5 V
I
OUT
Output Current - 150 mA
T
A
Operating Ambient Temperature -40 85 o C
