AP7115
150mA LOW DROPOUT LINEAR REGULATOR WITH
SHUTDOWN
AP7115 Rev. 10
1 of 11
MAY 2009
©
Diodes Incorporated
•
Wide input voltage range from 2.5V to 5.5V
•
200mV low dropout voltage at 150mA output current
•
Guaranteed 150mA output current.
•
Low quiescent current 50µA
•
Output voltage from 1.0V to 3.5V
•
±2% output voltage accuracy
•
Low temperature drift at output voltage
• High
PSRR
•
Fast transient response
•
Current limit protection
•
Short circuit protection
•
Thermal shutdown protection
•
SOT25 and SOT353: Available in “Green” Molding
Compound (No Br, Sb)
•
Lead Free Finish/RoHS Compliant (Note 1)
The AP7115 is a 150mA, fixed output voltage, low dropout linear
regulator. The device includes pass element, error amplifier,
band gap reference, current-limit and thermal shutdown circuit.
The characteristics of low dropout voltage and low quiescent
current make it suitable for use in battery powered devices. The
typical quiescent current is approximately 50µA. Several fixed
output voltages are available from 1.0V to 3.5V. Additional
protection is provided with built-in current-limit and
thermal-shutdown functions.
Applications
• Wireless
Communication
•
GSM/GPRS Cellular Phones
•
Handheld Mobile Devices
• Battery
Powered
Devices
•
CD-ROM, DVD, and LAN Cards
•
PC and Notebook Peripherals

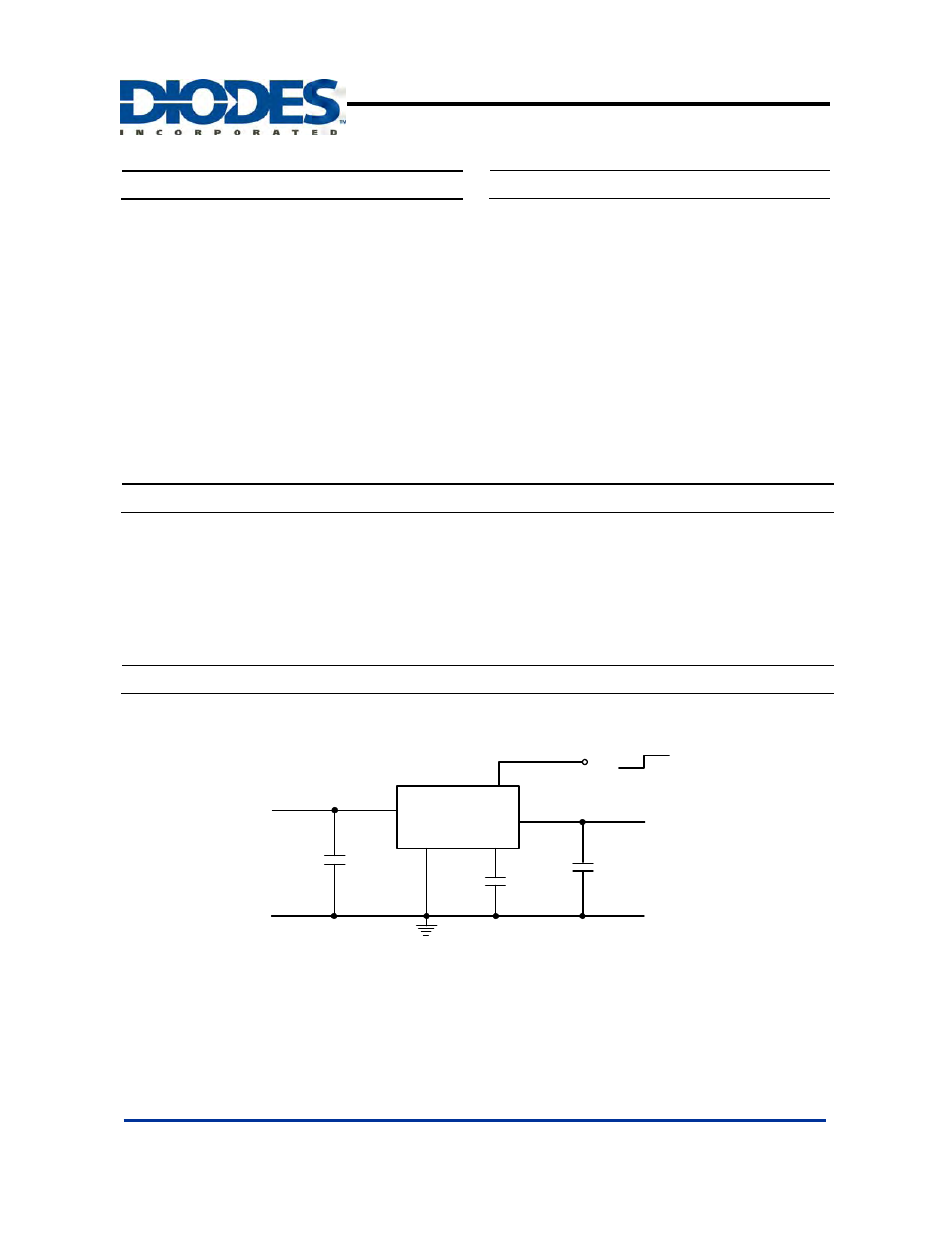

Typical Application Circuit
IN
OUT
GND
AP7115
BP
EN
EN
V
IN
C
IN
C
BP
C
OUT
V
OUT
ON
OFF
1µF
0.1µF
1µF
Features
General Description
