AP1117/AP1117I

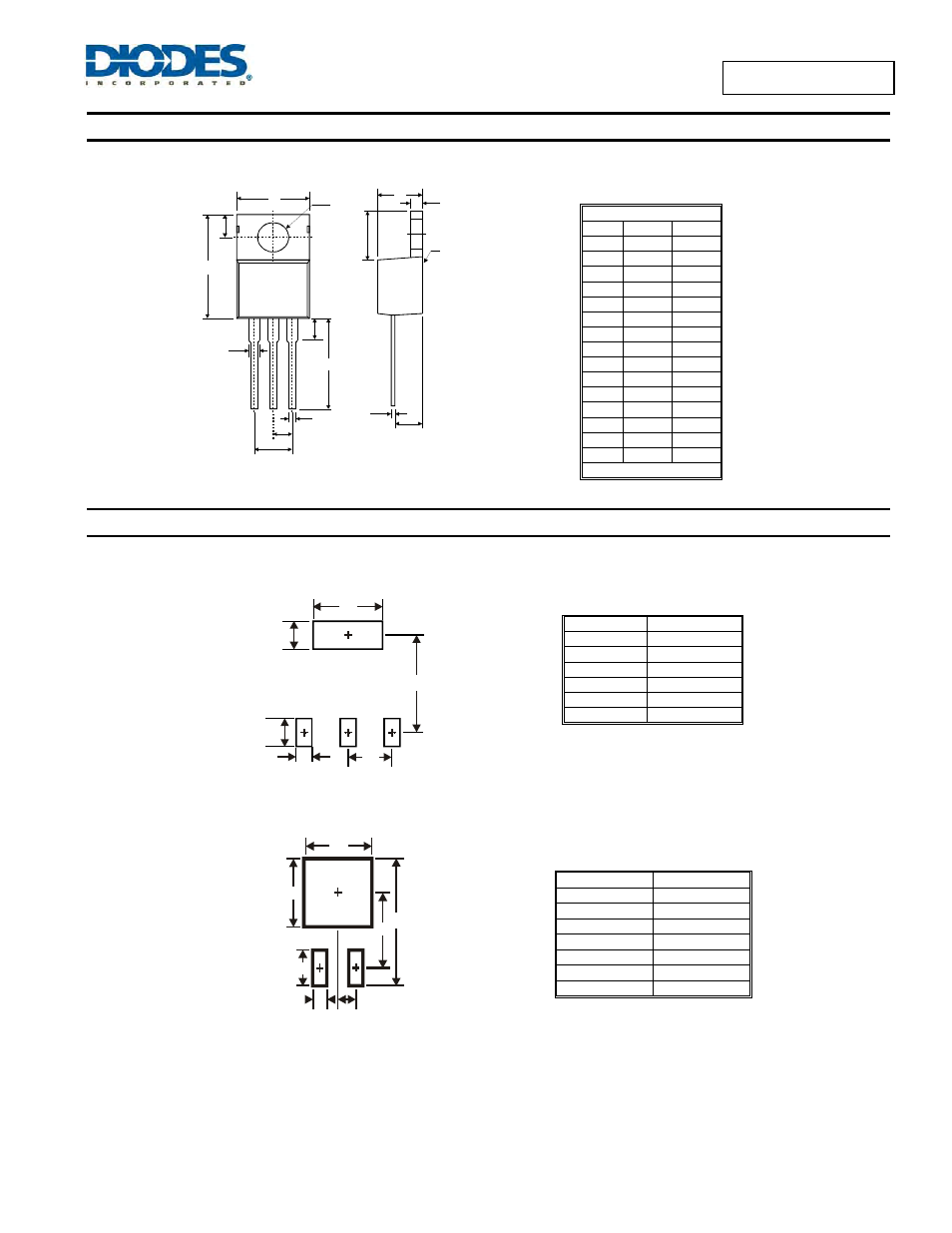

Package Outline Dimensions
(cont.) (All dimensions in mm.)
(5) Package Type: TO220-3
Suggested Pad Layout
(1) Package Type: SOT223
(2) Package Type: TO252
TO220-3
Dim Min Max
A 3.55 4.85
b 0.51 1.14
b1 1.14 1.78
C 0.31 1.14
D 14.20 16.50
D1 5.84 6.86
E 9.70 10.70
e 2.79 2.99
e1 4.83 5.33
F 0.51 1.40
J1 2.03 2.92
L 12.72 14.72
L1 3.66 6.35
P 3.53 4.09
Q 2.54 3.43
All Dimensions in mm
Dimensions Value (in mm)
X1 3.3
X2 1.2
Y1 1.6
Y2 1.6
C1 6.4
C2 2.3
Dimensions Value (in mm)
Z 11.6
X1 1.5
X2 7.0
Y1 2.5
Y2 7.0
C 6.9
E1 2.3
A
F
C
D
E
L
b
e1
b1
D1
Q
L1
J1
e
S
EA
T
IN
G
PL
AN
E
ØP
X2
C1
C2
X1
Y2
Y1
X2
C
Z
X1
Y1
E1
Y2
