AP1115
0.6A LOW DROPOUT POSITIVE ADJUSTABLE
OR FIXED-MODE REGULATOR
Description
AP1115 is a low dropout positive adjustable or fixed mode regulator
with 0.6A output current capability. The product is specifically designed
to provide well-regulated supply for low voltage IC applications such as
high-speed bus termination and low current 3.3V logic supply. AP1115
is also well suited for other applications such as VGA cards. AP1115 is
guaranteed to have <1.3V dropout at full load current making it ideal to
provide well regulated outputs of 1.25V to 5V with up to 18V input
supply.
Features
•
1.3V Maximum Dropout at Full Load Current
•
Fast Transient Response
• Output
Current
Limiting
• Built-In
Thermal
Shutdown
•
Good Noise Rejection
•
3-Terminal Adjustable or Fixed 1.5V / 1.8V / 2.5V / 2.8V/ 3.0V /
3.3V / 3.5V / 5.0V
•
Lead Free Package: SOT89-3L
Totally Lead-Free; RoHS Compliant (Notes 1 & 2)
•
SOT89-3L: Available in “Green” Molding Compound
(No Br, Sb)
Halogen and Antimony Free. “Green” Device (Note 3)
Applications
• PC
Peripheral
• Communication

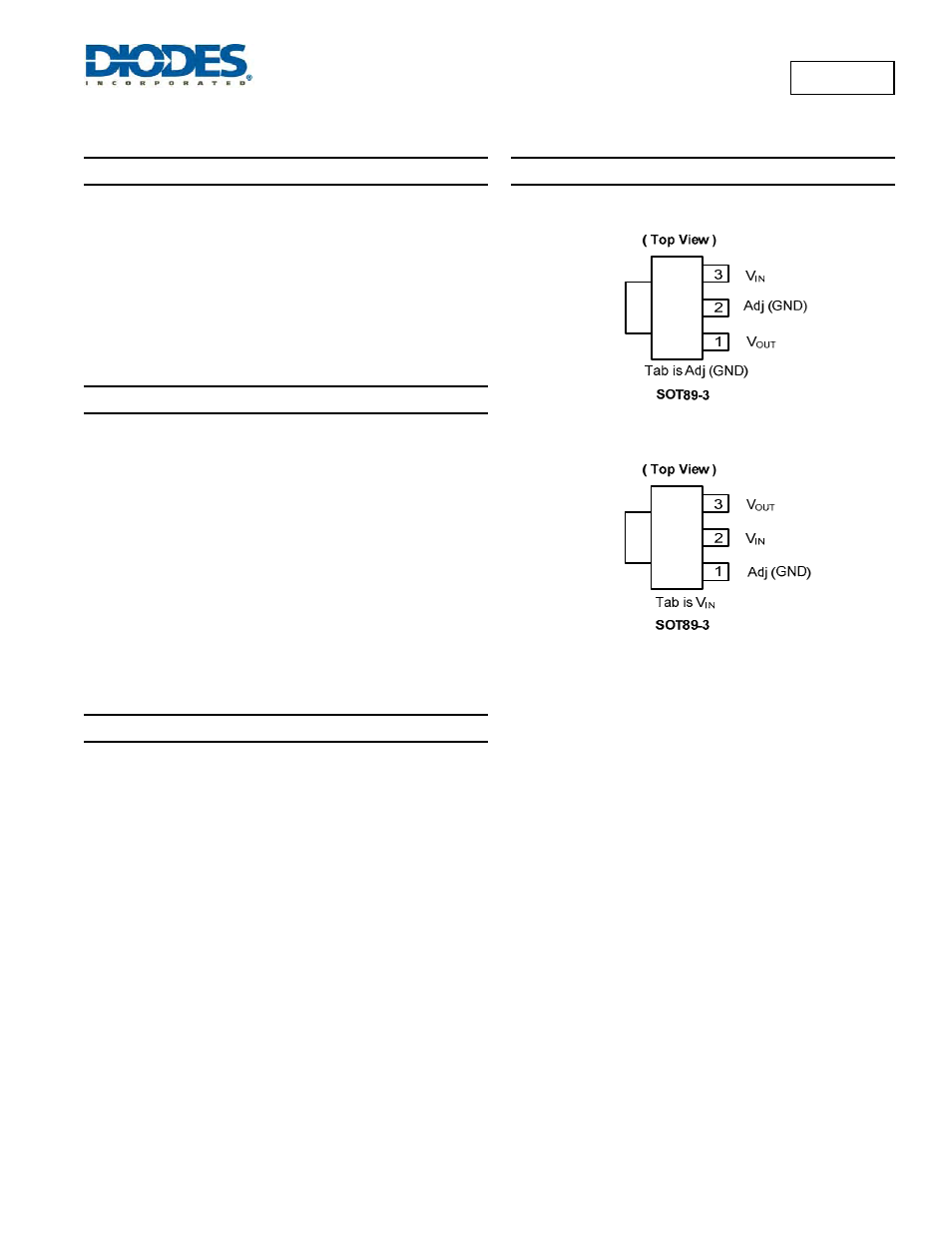

Pin Assignments
AP1115A
AP1115B
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
