AP2552/ AP2553/ AP2552A/ AP2553A

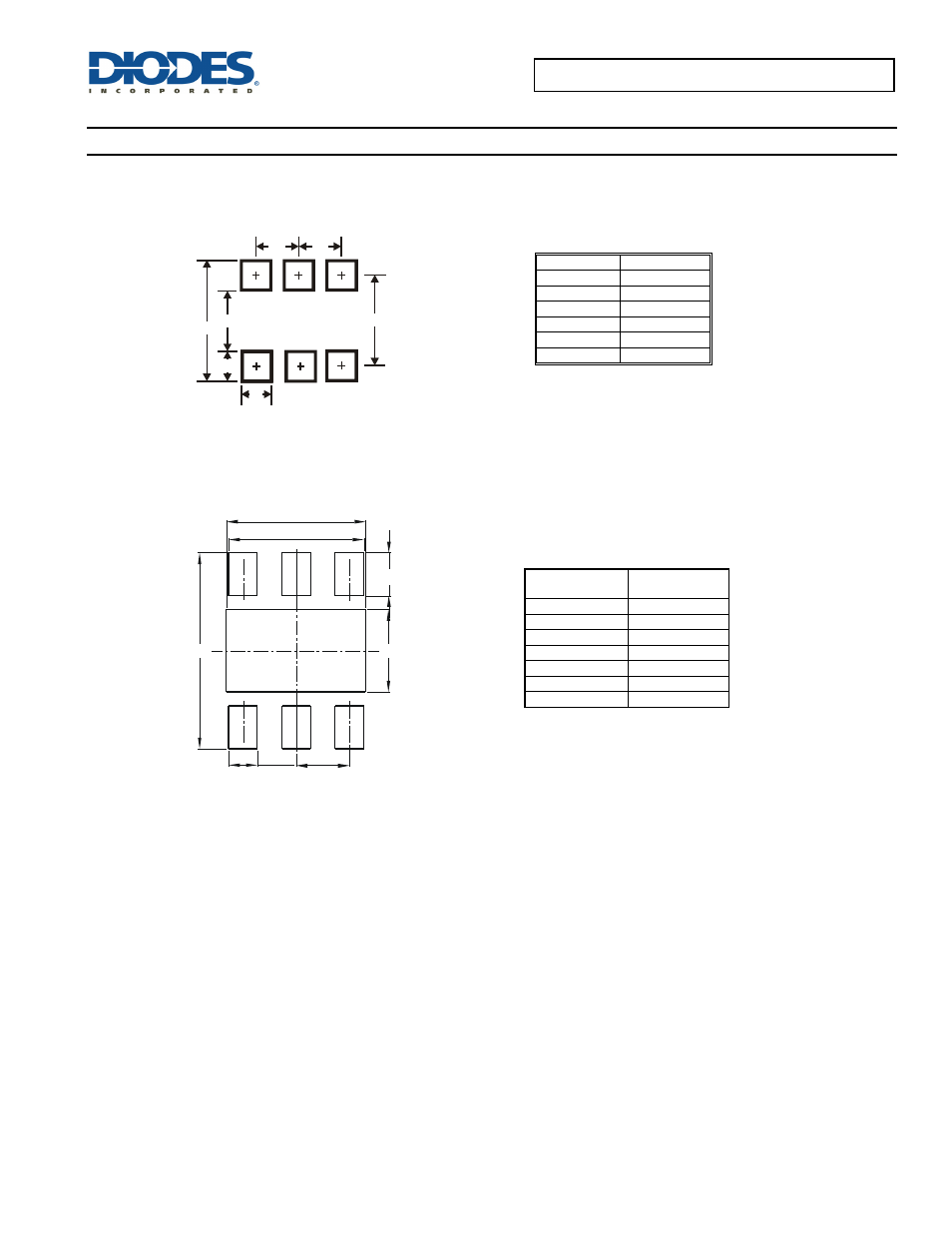

Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
(1) Package Type: SOT26
(2) Package Type: U-DFN2020-6
Dimensions Value (in mm)
Z 3.20
G 1.60
X 0.55
Y 0.80
C1 2.40
C2 0.95
Dimensions
Value
(in mm)
C 0.650
X 0.350
X1 1.650
X2 1.700
Y 0.525
Y1 1.010
Y2 2.400
X
Z
Y
C1
C2 C2
G
Y2
X1
X2
Y1
Y (6x)
X (6x) C
