AP2186/ AP2196

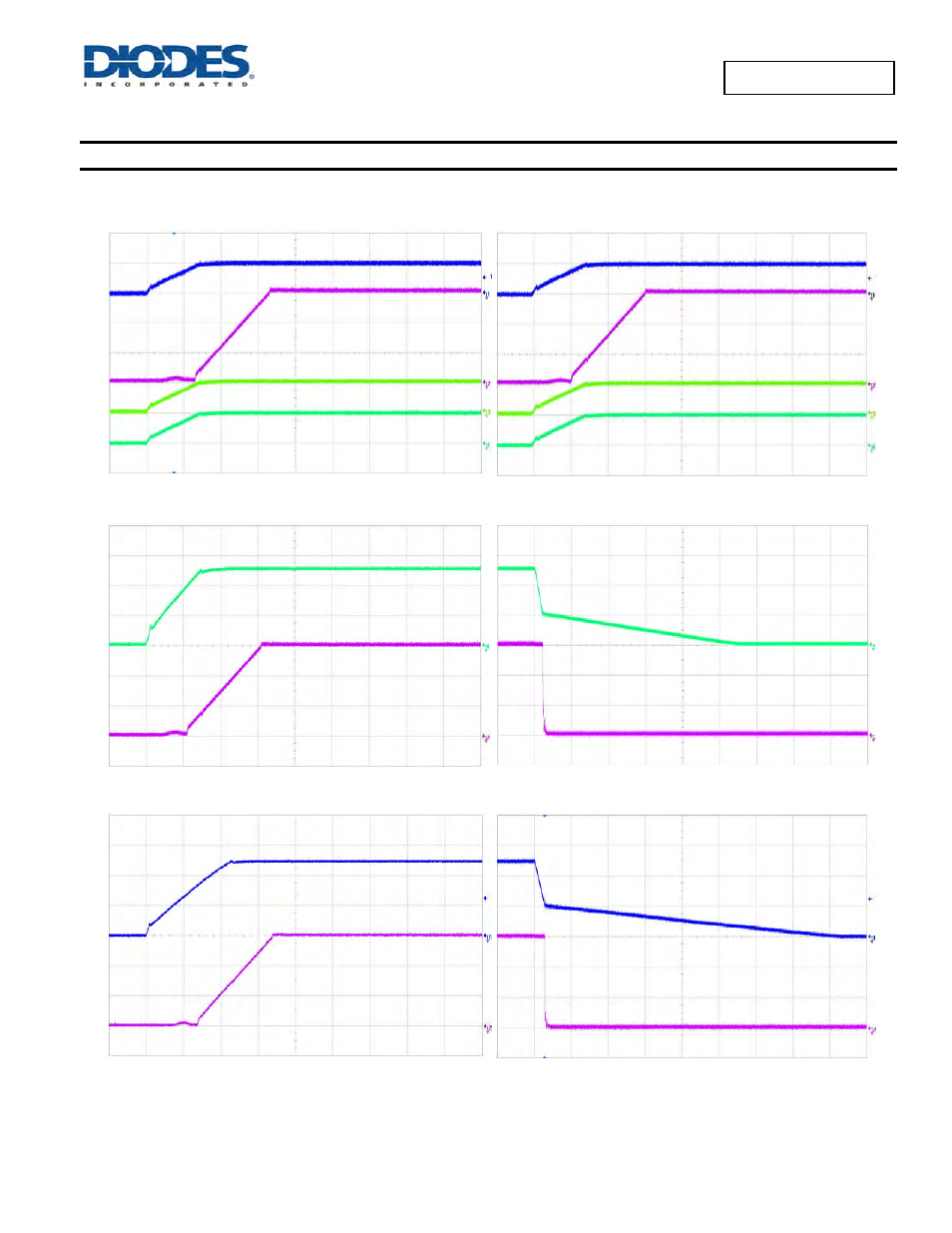

Typical Performance Characteristics
(cont.)
Channel 1 Power On
1ms/div
Channel 2 Power On
1ms/div
Channel 1 UVLO Increasing
1ms/div
Channel 1 UVLO Decreasing
10ms/div
Channel 2 UVLO Increasing
1ms/div
Channel 2 UVLO Decreasing
10ms/div
TA= +25°C
CL=68µF
RL=3Ω
Vin
5V/div
Vflag 1
5V/div
Iout 1
500mA/div
Ven 1
5V/div
TA= +25°C
CL=68µF
RL=3Ω
Vin
5V/div
Vflag 2
5V/div
Iout 2
500mA/div
Ven 2
5V/div
Vin
2V/div
Iout 1
500mA/div
TA= +25°C
CL=68µF
RL=3Ω
Iout 1
500mA/div
Vin
2V/div
TA= +25°C
CL=68µF
RL=3Ω
Vin
2V/div
Iout
500mA/div
TA= +25°C
CL=68µF
RL=3Ω
Iout
500mA/div
Vin
2V/div
TA= +25°C
CL=68µF
RL=3Ω
