AP2186/ AP2196

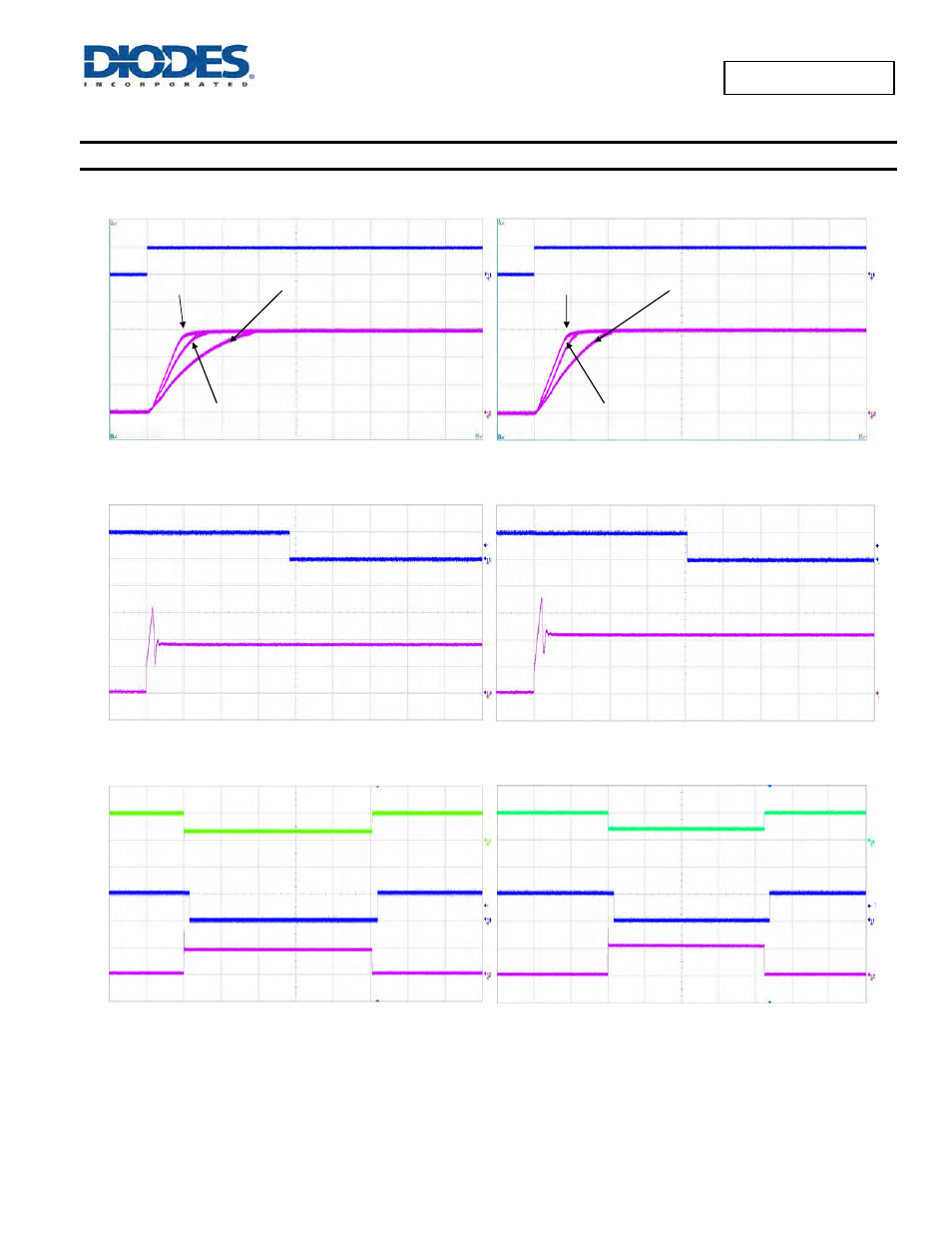

Typical Performance Characteristics
(cont.)
Channel 1 Inrush Current
1ms/div
Channel 2 Inrush Current
1ms/div
Channel 1
0.6 Ω Load Connected to Enabled Device
2ms/div
Channel 2
0.6 Ω Load Connected to Enabled Device
2ms/div
Channel 1
Short Circuit with Blanking Time and Recovery
20ms/div
Channel 2
Short Circuit with Blanking Time and Recovery
20ms/div
Iout 2
2A/div
Vout 2
5V/div
VIN=5V
TA= +25°C
CL=68µF Vflag 2
5V/div
Iout 1
1A/div
Vflag 1
2V/div
VIN=5V
TA= +25°C
CL=68µF
Iout 2
1A/div
Vflag 2
2V/div
VIN=5V
TA= +25°C
CL=68µF
Iout 1
2A/div
Vout 1
5V/div
VIN=5V
TA= +25°C
CL=68µF Vflag 1
5V/div
Iout 1
500mA/div
Ven 1
5V/div
V IN =5V
T
A
= +25°C
R
L
=3.3 Ω
C L =470µF
C
L
=220µF
C
L
=100µF
Iout 2
500mA/div
Ven 2
5V/div
V
IN
=5V
T
A
= +25°C
R
L
=3.3 Ω
C L =470µF
C
L
=220µF
C
L
=100µF
