Typical Performance Characteristics
(cont.)

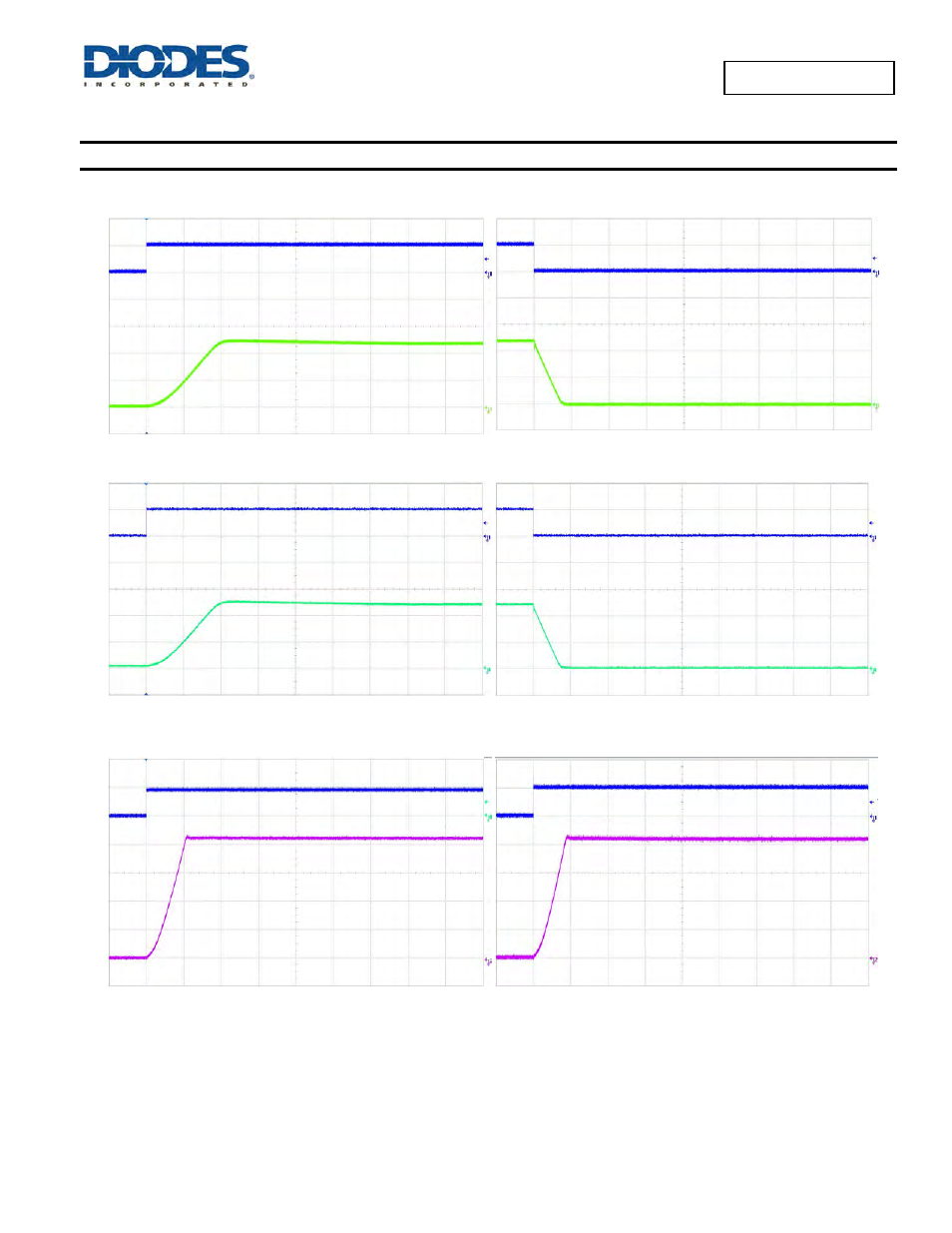

Channel 1 Turn-On Delay and Rise Time
400µs/div
Channel 1 Turn-Off Delay and Fall Time
400µs/div
Channel 2 Turn-On Delay and Rise Time
400µs/div
Channel 2 Turn-Off Delay and Fall Time
400µs/div
Channel 1 Short Circuit Current,
Device Enabled Into Short
500µs/div
Channel 2 Short Circuit Current,
Device Enabled Into Short
500µs/div
Iout 1
500mA/div
Ven 1
5V/div
Iout 2
500mA/div
Ven 2
5V/div
VIN=5V
TA= +25°C
CL=68µF
Vout 2
2V/div
Ven 2
5V/div
CL=100µF
TA= +25°C
RL=5Ω
Vout 2
2V/div
Ven 2
5V/div
CL=100µF
TA= +25°C
RL=5Ω
Vout 2
2V/div
Ven 2
5V/div
CL=100µF
TA= +25°C
RL=5Ω
Vout 2
2V/div
Ven 2
5V/div
CL=100µF
TA= +25°C
RL=5Ω
VIN=5V
TA= +25°C
CL=68µF
