AP3417C
Document number: DS36516 Rev. 1 - 0
9 of 11
www.diodes.com
September 2013
© Diodes Incorporated
AP3417C
PRELIMINARY DATASHEET
A Product Line of
Diodes Incorporated

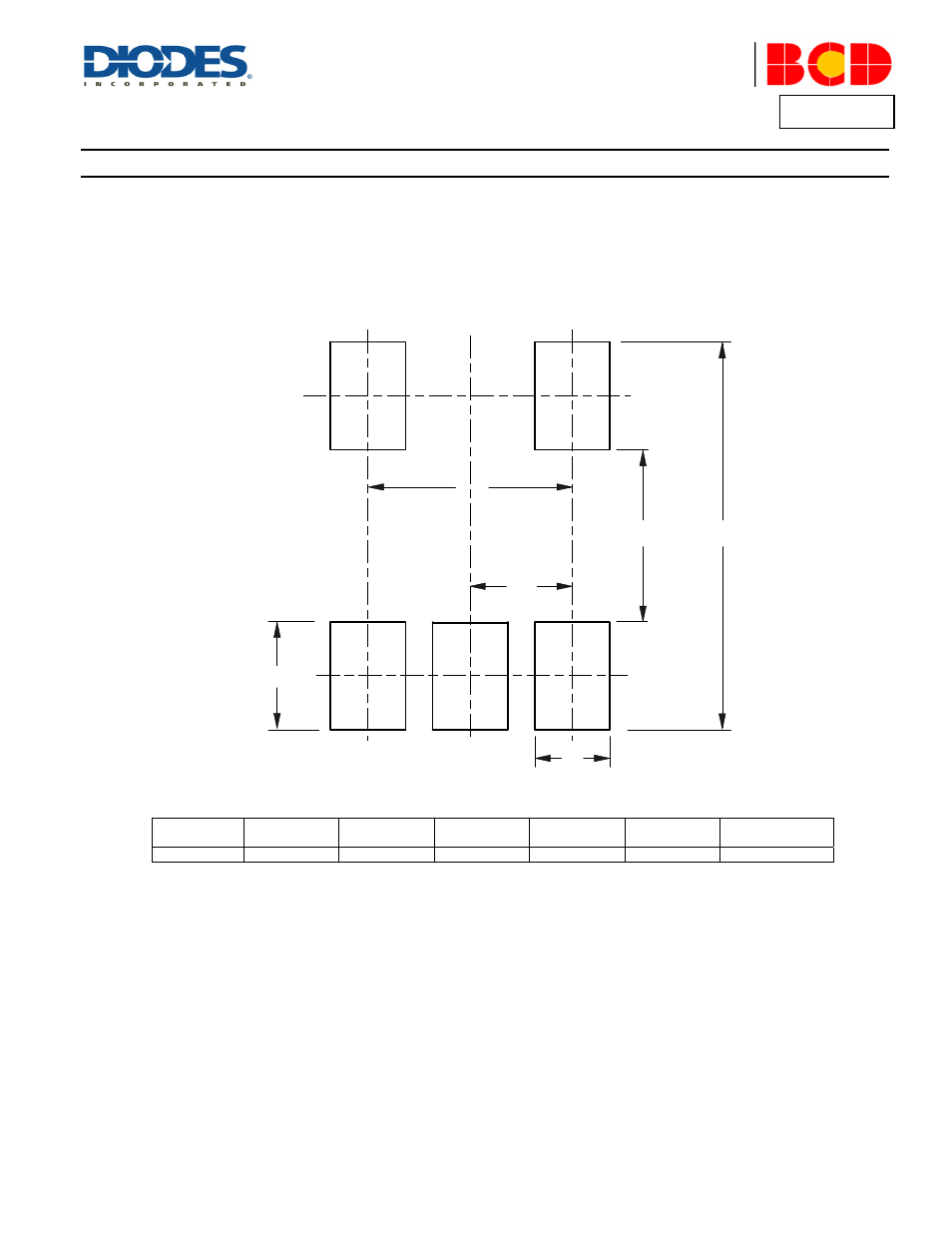

Suggested Pad Layout
SOT-23-5
E2
E1
Y
X
G Z
Dimensions
Z
(mm)/(inch)
G
(mm)/(inch)
X
(mm)/(inch)
Y
(mm)/(inch)
E1
(mm)/(inch)
E2
(mm)/(inch)
Value 3.600/0.142 1.600/0.063 0.700/0.028 1.000/0.039 0.950/0.037 1.900/0.075
